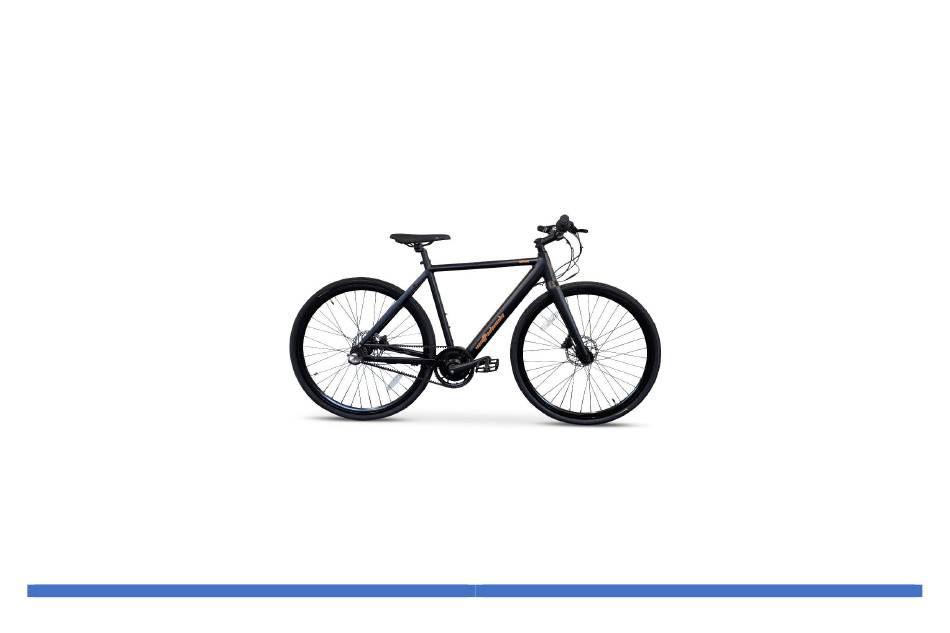

- Page 1 OMNIA E-BIKE MANUAL WATTWHEELS LTD...
-
Page 2: Table Of Contents
RIDER SEAT HEIGHT & COMFORT PAGE 11 BATTERY & CHARGING PAGE 12 - 13 USEFUL TIPS PAGE 14 PARKING STORAGE & TRANSPORT PAGE 15 SAFETY CHECKS & BASIC TROUBLESHOOTING PAGE 16-17 ERROR CODES PAGE 18 SERVICING PAGE 19 WARRANTY INFORMATION PAGE 20-22 WATTWHEELS LTD... - Page 3 WELCOME First off, welcome to the Wattwheels family! We’re so happy to have you on board! You have picked a great model and, in this manual, we’re going to break down the basics to make sure that your bike remains in top shape and performs to the highest standard.
-
Page 4: Installation
Visit www.wattwheels.co.nz to download the latest version. Wattwheels makes every effort to ensure accuracy of its documentation and assumes no responsibility of liability if any errors or inaccuracies appear within. -
Page 5: Lcd Display
LCD DISPLAY The image shows the various features and information displayed on the LCD display. The display is controlled using the buttons remote located on the display. WATTWHEELS LTD... - Page 6 BATTERY DISPLAY CAPCITY The LCD readout on the handlebar of your Omnia features a battery capacity gauge (much like the fuel gauge on a car). It is recommended that users stop operating the bike on electric once the indicator starts flashing on the last bar and recharge. Remember you can still ride without using the motor or display.
- Page 7 Unit setting – Km/h or Mph. Here you can select either option. Default is KM/h Auto off – Here you can change how long it will take for your Omnia to turn off when it’s been sitting idle. Default is 5 mins Password Set- You can select a 4-digit password for when you turn your Omnia on.
- Page 8 Shimano Nexus Hub The Omnia is fitted with a Shimano Nexus 3 speed hub gearing system. Unlike a regular derailleur system, the gears are on the inside of the rear hub shell and does not require a derailleur. To change gear on a Shimano Nexus gearing system requires you to stop pedalling, use the grip shifter to change gear then resume pedalling again.
-
Page 9: Range
DRIVING RANGE The range of your Omnia is the distance the bike will travel on a single full charge of the battery pack. The range values in this manual are estimates based on expected usage characteristics. Some of the factors which effect range include changes in elevation, speed, payload, and acceleration, number of starts and stops and ambient air temperatures. - Page 10 While sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on that pedal. The correct saddle height will allow the knee to be slightly bent in this position. WATTWHEELS LTD...
-
Page 11: Battery & Charging
To charge the battery first open the rubber cap located on the seat tube above the motor and plug the charging pin into the port, then plug the charger into the wall socket. It is important to always plug the charger into the bike first and then the wall socket. WATTWHEELS LTD... - Page 12 Lithium-ion batteries can last longer if you recharge with 10-15% of the charge remaining to prevent damage to the cells. Keep both the battery and charger out of the reach of children and if there appears to be an issue with the charger or battery, stop use immediately and contact either the manufacturer or Wattwheels at admin@wattwheels.co.nz BEST PRACTISES FOR EXTENDING BATTERY LIFE o Avoid sudden starts and stops.
- Page 13 •After the green light is on, the charger is “fill slowly mode". It will not be harmful to the battery if left to charge for a longer period or overnight. We do recommend not leaving for longer than 48hours if possible DO NOT use the charger of other brands to charge. The charger may not be compatible with some brands WATTWHEELS LTD...
-
Page 14: Useful Tips
• Please don't dismantle and repair parts by yourself. Please go to your local bike shop. This bike comes with a manufacturer’s warranty (document included) so for warranty claims please contact Wattwheels and we will arrange a service agent close to you to look at the bike. We carry spare parts so anything electrical that a standard bike shop doesn’t have we will ship to your nearest retailer... -
Page 15: Parking Storage & Transport
Omnia Bike must be parked in accordance with local rules and regulations. o If you must park outdoors in rain, or wet conditions you should only leave your Omnia Bike outside for a few hours and proceed to park the bike in a dry location afterwards to allow all the systems to dry out. - Page 16 10. Motor Drive Assembly and o Ensure mid-motor is spinning smoothly and the motor bearings are in good working order. Throttle o Ensure battery is charged before use. 11. Battery Pack o Ensure there is no damage to battery pack. WATTWHEELS LTD...
- Page 17 4. Repair or replace 1. Damaged motor bearings , cogs or seals 1. Replace Wheel or motor makes 2. Damaged wheel spokes or rim 2. Repair or replace strange noises 3. Damaged motor wiring 3. Repair or replace motor. WATTWHEELS LTD...
-
Page 18: Error Codes
"25" shown at speed torque signal failure of the torque sensor "26" shown at speed speed failure of torque sensor "30" shown at speed communication failure "--" shown at speed BMS communication failure WATTWHEELS LTD... -
Page 19: Servicing
To ensure your bike remains in great shape just like a car it requires regular servicing. Failure to do so may void any potential warranty claims. Please retain your receipts for proof of service 2-3 MONTHS: 12 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: 6 MONTHS: 24 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: WATTWHEELS LTD... - Page 20 Wattwheels, the component will be replaced during the warranty period. Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as...
- Page 21 For valid warranty claims hereunder, Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
- Page 22 Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental, or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether described on arrival and for the warranty period.
