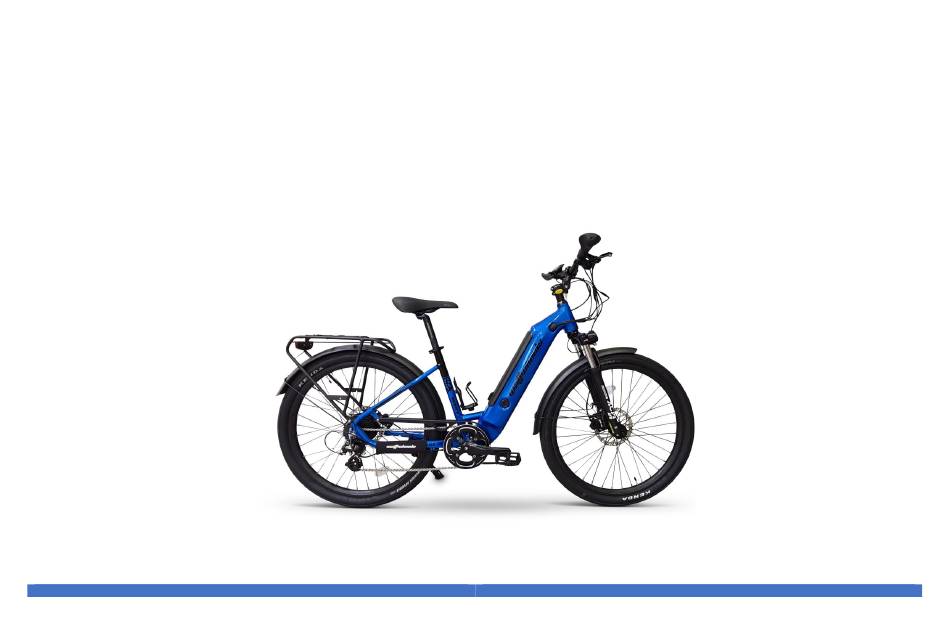

- Page 1 BIGHORN HUB HUB EBIKE 2020 MANUAL WATTWHEELS LTD...
-
Page 2: Table Of Contents
RIDER SEAT HEIGHT & COMFORT PAGE 10 BATTERY & CHARGING PAGE 11 USEFUL TIPS PAGE 13 PARKING STORAGE & TRANSPORT PAGE 14 SAFETY CHECKS & BASIC TROUBLESHOOTING PAGE 15-16 ERROR CODES PAGE 17 SERVICING PAGE 18 WARRANTY INFORMATION PAGE 19-21 WATTWHEELS LTD... -
Page 3: Introduction
WELCOME First off, welcome to the Wattwheels family! We’re so happy to have you on board! You’ve picked a great model and in this manual, we’re going to break down the basics to make sure that your bike remains in top shape and performs to the highest standard. -
Page 4: Installation
4. ATTACH THE SEAT POST 5. ATTACH THE FRONT MUDGUARD AND ATTACH FRONT LIGHT (if applicable) 6. INSERT THE FRONT WHEEL WITH QUICK RELEASE 7. CHECK ALL SCREWS AND BOLTS ARE TIGHT, SEAT POST THE CORRECT HEIGHT AND BRAKES WORKING PROPERLY WATTWHEELS LTD... -
Page 5: Lcd Display
To activate the lights and illuminate the display hold down the + key, located on the keypad. A little icon should appear above the on the top left indicating the light is on. This will turn on the front and rear lights. To turn off, hold down the + key again WATTWHEELS LTD... - Page 6 Here you can reset trip meter, limit the speed, change PAS power and Sensitivity. We recommend if changing the power or sensitivity of the bike you should get this done by your local bike shop Please contact your local retailer if you need any assistance on this. Alternatively, you can check Wattwheels website for up to date instructional videos. WATTWHEELS LTD...
-
Page 7: Throttle
As a preventative measure we have included a program on the bike that the throttle will only allow 50% power until the bike reaches 10km/r. Once it’s over 10km/r the throttle will allow 100% power if required. This is to help preserve the motor and prevent wear and tear on the chain and cogs. WATTWHEELS LTD... -
Page 8: Brakes, Tyres, Chain
KMC X e-Bike Series Chains. When replacing a chain please make sure you get an e-bike graded one to cope with the torque as mentioned above. Also ensure the chain is lubricated on a regular basis so talk to your local bike shop on what they suggest. The current model chain supplied with the bikes is a KMC -X10E WATTWHEELS LTD... -
Page 9: Biking Range
The following table provides general estimates and outlines various factors effecting range and their combined estimated effects on range. This table is meant to help owners understand the factors that can increase or decrease range, but Wattwheels makes no claims to the range that individual users might obtain. -
Page 10: Rider Seat Height & Comfort
While sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on that pedal. The correct saddle height will allow the knee to be slightly bent in this position. WATTWHEELS LTD... -
Page 11: Battery & Charging
The battery can be either charged by leaving the battery in the bike or by removing it. To charge while in the battery open the rubber cap located on the right-hand side of the downtube and plug the charging pin into the slot. WATTWHEELS LTD... - Page 12 Lithium-ion batteries can last longer if you recharge with 10-15% of the charge remaining to prevent damage to the cells. Keep both the battery and charger out of the reach of children and If there appears to be an issue with the charger or battery, stop use immediately and contact either the manufacturer or Wattwheels admin@wattwheels.co.nz...
-
Page 13: Useful Tips
• To replace the brake pads or perform other maintenance take it to a qualified bicycle mechanic at your local bike shop. • Properly inflate your tyres according to riding conditions. Under-inflated tyres are prone to get flats, especially if riding off-road. WATTWHEELS LTD... -
Page 14: Parking Storage & Transport
• Please don't dismantle and repair parts by yourself. Please go to your local bike repair shop. This bike comes with a manufacturer’s warranty (document included) so any standard repairs please contact Wattwheels and we will arrange a service agent close to you to look at the bike. We carry spare parts so anything electrical that a standard bike shop doesn’t have we will ship to your nearest retailer... -
Page 15: Safety Checks & Basic Troubleshooting
Ensure mid-motor is spinning smoothly and the motor bearings are in good working order. o Ensure battery is charged before use. 11. Battery Pack o Ensure there is no damage to battery pack. o Lock battery to frame and check to see that it is secured. WATTWHEELS LTD... - Page 16 4. Wiring damaged 4. Repair or replace 1. Damaged motor bearings 1. Replace Wheel or motor makes strange 2. Damaged wheel spokes or rim 2. Repair or replace noises 3. Damaged motor wiring 3. Repair or replace motor. WATTWHEELS LTD...
-
Page 17: Error Codes
The error codes are listed below and can help detect what the issue is on the bike. If your bike has an error code displayed at any time it is recommended that you cease operation and contact your local dealer or Wattwheels. -
Page 18: Servicing
To ensure your bike remains in great shape just like a car it requires regular servicing. Failure to do so may void any potential warranty claims. Please retain your receipts for proof of service 2-3 MONTHS: 12 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: 6 MONTHS: 24 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: WATTWHEELS LTD... -
Page 19: Warranty Information
Wattwheels, the component will be replaced during the warranty period. Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.;... - Page 20 Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
- Page 21 Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether described on arrival and for the warranty period.
