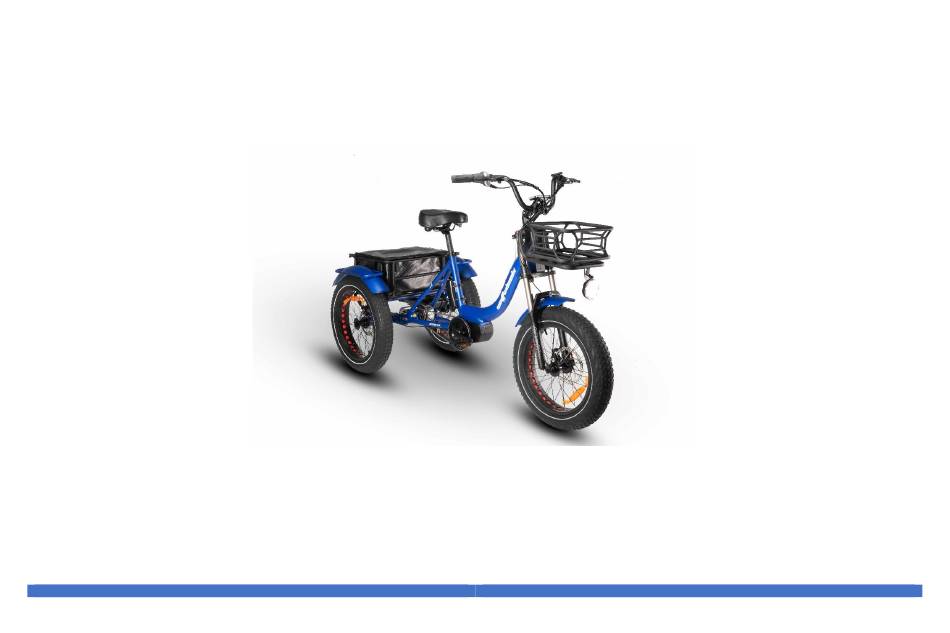

- Page 1 E-TRIKE XT MANUAL WATTWHEELS LTD...
-
Page 2: Table Of Contents
RIDER SEAT HEIGHT & COMFORT PAGE 12 BATTERY & CHARGING PAGE 13 - 14 USEFUL TIPS PAGE 15 PARKING STORAGE & TRANSPORT PAGE 16 SAFETY CHECKS & BASIC TROUBLESHOOTING PAGE 17-18 ERROR CODES PAGE 19 SERVICING PAGE 20 WARRANTY INFORMATION PAGE 21-23 WATTWHEELS LTD... -
Page 3: Introduction
WELCOME First off, welcome to the Wattwheels family! We are so happy to have you on board! You have picked a great model and, in this manual, we’re going to break down the basics to make sure that your trike remains in top shape and performs to the highest standard. -
Page 4: Getting Started
2. PLEASE WATCH OUR INSTRUTIONAL VIDEO ON OUR WEBSITE TO FAMILRIZE YOURSELF WITH THE TRIKE BEFORE YOU RIDE – NOTE THIS WILL BE AVAILABLE FROM JUNE 1 2020 3. WE SUGGEST RIDING THE TRIKE FIRSTLY WITHOUT ANY POWER TO GET FAMILIAR WITH HOW THEY RIDE. ONCE YOU ARE COMFORTABLE THEN START ON PAS LEVEL 1. WATTWHEELS LTD... -
Page 5: Lcd Display
LCD DISPLAY FEATURES The image shows the various features and information displayed on the LCD display. The display is controlled using the 4-button remote mounted on the left side of the handlebar. WATTWHEELS LTD... - Page 6 BATTERY DISPLAY CAPCITY The LCD display on the handlebar of your E-Trike XT Trike features a battery capacity gauge (much like the fuel gauge on a car). It is recommended that users stop operating the trike on electric once the gauge starts flashing on the last bar and recharge the battery. Remember you can still ride...
- Page 7 - key and you can set at 32km/h or lower if required. SET 5 - Current which impacts on power. Default is the highest at 18ah. Please contact your local retailer if you need any assistance on this. Alternatively, you can check Wattwheels website for up-to-date instructional videos.
-
Page 8: Throttle
The throttle is located on the left-hand side of the handlebars in the form of a thumb piece as pictured below. Please be careful as these throttles are set to operate the E-Trike XT from stationary so any slight press of this will propel the E-Trike XT forward if the trike is in PAS 1 or above. The throttle can be used when taking off from a stationary start, as a cruise control or just if you need a break! Please be aware using the throttle will drain the battery much quicker than normal riding. -
Page 9: Brakes, Tyres, Chain
BRAKES The E-Trike XT electric trikes are equipped Tektro mechanical disk brakes. Please take care while braking initially, when getting familiar with the trike. The front wheel brake is located on right hand side with the rear wheel brake on the left. For riders which prefer the brakes the other way around please get your nearest bike shop to switch over if required. -
Page 10: Gears
DRIVING RANGE The range of your E-Trike XT is the distance the trike will travel on a single full charge of battery pack. The range values in this manual are estimates based on expected usage characteristics. Some of the factors which effect range include changes in elevation, speed, payload, and acceleration, number of starts and stops and ambient air temperatures. -
Page 11: Biking Range
We suggest that you ride conservatively when you first get your E-Trike XT to get to know your trike and travel routes. Once you become familiar with the range requirements of your travel routes, and the capabilities of your E-Trike XT you can then adjust you riding characteristics if you so desire. -
Page 12: Rider Seat Height & Comfort
While sitting on the bicycle with one pedal at its lowest point, place the ball of your foot on that pedal. The correct saddle height will allow the knee to be slightly bent in this position. WATTWHEELS LTD... -
Page 13: Battery & Charging
The charge left in the battery should be 50%-75% for long storage times. Cleaning the battery and battery housing should only be done while disconnected and powered off. Use a dry rag or if needed a lightly damp rag. WATTWHEELS LTD... - Page 14 Lithium-ion batteries can last longer if you recharge with 10-15% of the charge remaining to prevent damage to the cells. Keep both the battery and charger out of the reach of children and If there appears to be an issue with the charger or battery, stop use immediately and contact either the manufacturer or Wattwheels at admin@wattwheels.co.nz BEST PRACTISES FOR EXTENDING BATTERY LIFE o Use Pedal to assist when climbing hills and accelerating from a stop.
-
Page 15: Useful Tips
• Please do not dismantle and repair parts by yourself. Please go to your local bike repair shop. This trike comes with a manufacturer’s warranty (document included) so any standard repairs please contact Wattwheels, and we will arrange a service agent close to you to look at the trike. We carry spare parts so anything electrical that a standard trike shop doesn’t have we will ship to your nearest retailer. -
Page 16: Parking Storage & Transport
In public places, your E-Trike XT must be parked in accordance with local rules and regulations. o If you must park outdoors in rain, or wet conditions you should only leave your E-Trike XT outside for a few hours and proceed to park the trike in a dry location afterwards to allow all the systems to dry out. -
Page 17: Safety Checks & Basic Troubleshooting
Ensure mid-motor is spinning smoothly and the motor bearings are in good working order. (contact your local store Throttle for assistance) o Ensure battery is charged before use. 11. Battery Pack o Ensure there is no damage to battery pack. o Lock battery to frame and check to see that it is secured. WATTWHEELS LTD... - Page 18 4. Wiring damaged 4. Repair or replace 1. Damaged motor bearings 1. Replace Wheel or motor makes strange 2. Damaged wheel spokes or rim 2. Repair or replace noises 3. Damaged motor wiring 3. Repair or replace motor. WATTWHEELS LTD...
-
Page 19: Error Codes
ERROR DECTECTION Your E-Trike XT is equipped with an error detection system integrated into the LCD display and motor controller. In the case of an electronic system fault an error code should display. The error codes are listed below and can help detect what the issue is on the trike. If your trike has an error code displayed at any time it is recommended that you cease operation and contact your local dealer or Wattwheels. -
Page 20: Servicing
To ensure your trike remains in great shape just like a car it requires regular servicing. Failure to do so may void any potential warranty claims. Please retain your receipts for proof of service 2-3 MONTHS: 12 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: 6 MONTHS: 24 MONTHS: DATE: DATE: STORE/MECHANIC: STORE/MECHANIC: SIGNATURE: SIGNATURE: WATTWHEELS LTD... -
Page 21: Warranty Information
Wattwheels, the component will be replaced during the warranty period. Wattwheels will have no obligation under this warranty in the event the product is damaged or destroyed as a result of any of the following events: components used on a non Wattwheels product, damage or destruction by abuse; collision; theft; improper maintenance or mishandling of the product; natural forces such as wind, lightning, hail, etc.;... - Page 22 Wattwheels will reimburse the original Purchaser for shipping costs incurred as a result of returning the product to Wattwheels for warranty work at standard ground shipping rates, and Wattwheels will pay for shipping costs to return the product to the original. You must retain and send us the receipts for shipping.
- Page 23 Unless otherwise provided, the sole remedy under the above warranty, or any implied warranty, is limited to the replacement of defective parts at the sole discretion of Wattwheels. In no event shall Wattwheels be responsible for direct, incidental, or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether described on arrival and for the warranty period.
