Check entire box and all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical that all parts be carefully inspected prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's
warranty and may affect the safety of the user.
Copyright © 2016 Aqua Creek Products All Rights Reserved
PART #: F-333PEZNA (without anchor)
400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY
LEAVE THIS MANUAL WITH LIFT OWNER
Lift safety can only be ensured if the lift is installed and
operated according to these instructions.
• NEVER permit children to play on or around the lift
• Do not allow children to use the lift without adult
superivsion
• NEVER apply direct water pressure to the electronics
• NEVER use the lift with a dry pool
READ CAREFULLY

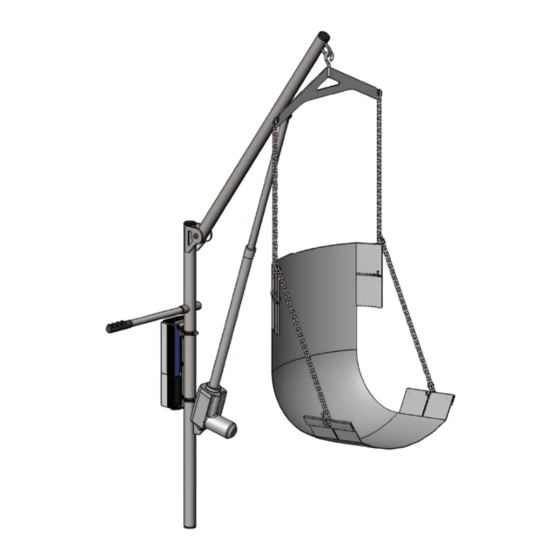

Power EZ
Pool Lift
PART #: F-03PEZ (with anchor)
MANDATORY
Read and follow all instructions.
1
Revised 2/24/16
Advertisement
Related Manuals for Aqua Creek Products Power EZ F-03PEZ
Summary of Contents for Aqua Creek Products Power EZ F-03PEZ
- Page 1 It is critical that all parts be carefully inspected prior to installation. If any damage occurred in transit, Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
- Page 2 3/8” X 1 3/4” HEX BOLT 3/8” NYLOCK NUT BATTERY 3/8” FLAT WASHER CHARGER 2 1/4” HOSE CLAMP EZ SLING ZIP TIES ANCHOR (IF ORDERED WITH LIFT) OWNERS MANUAL LINEAR ACTUATOR EZ ANCHOR Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 3 Clean out the hole using a vaccum or compressed air. Check that the hole is deep enough to allow the anchor to be flush with the finished deck surface. Ground the anchor according to your local code requirements. This may require additional drilling and/or other tools. Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 4 [30.5 cm] 12" MIN [91 cm] 36" MAX ANCHOR SOCKET [15 cm] TOP OF SLAB 6" MIN [20.3cm] 8" MIN. 42" CEMEMNT/EPOXY 48" GROUNDING LUG FIGURE 1 Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 5 Verify all the measurements for accuracy and pour the deck as you normally would, making sure not to get any concrete inside the anchor system. Allow the concrete to cure before installing and using the lift. Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 6 3/8" X 1 3/4" complete this may cause a tripping hazard. See the pictures HEX BOLT below on how to attach the cable to the lift. 3/8" NYLOCK ACTUATOR Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 7 EZ TURN BAR program for the persons who will be operating the lift). For any person operating the lift, please continue to operating instructions. Read carefully for comprehension. 24V BATTERY (CHARGED) Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 8 Thank you for purchasing the Aqua Creek Power EZ Lift. Enjoy the pool and this product for many years with proper use and maintenance. See page 10 of this manual for proper care instructions. Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 9 Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency button only overrides the remote handset. Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 10 3M Scotch Brite™ pad. Use white epoxy paint to touch up the finish. Apply wax to protect when dry. For service and/or replacement parts contact Aqua Creek direct at Toll free: (888) 687-3552 Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 11 COVER, BATTERY/CONTROL BOX, PEZ, BLUE WF 10 WASHER, FLAT, #10 SAE, 316 SS BRB SS-1216-4 BUSHING, BRONZE SLEEVE, SS-1216-4, 3/8 X 1/2 X 1/4 ZIP TIE, 6” 6” CABLE ZIP TIE Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 2/24/16...
- Page 12 (ITEM #’s F-03EZPL, F-03EZPLNA, F-03PEZ, F-333PEZNA, F-190PHBL, F-194PHBL-NA) Aqua Creek Products, LLC (a.k.a. Aqua Creek) also warrants to the original end user purchaser that products manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions, and properly used and maintained, shall be free from defects in...
- Page 13 COVERS ACCESSORIES & OPTIONS F-120PPC Ranger/Pro Pool F-019CA Cycle Attachment Pro Pool XR/Patriot F-105LAR Pull-Out Legrest Portable Pro Pool F-422PLH Headrest (old Pro Pool) F-450BL- cout F-422PLH-2 Headrest (all other lifts) F-720BL- evolution/Titan F-422XR Headrest (Pro Pool-XR) F-EZBL-C EZ/Power EZ F-423CS Chest Strap F-440HBC-...
