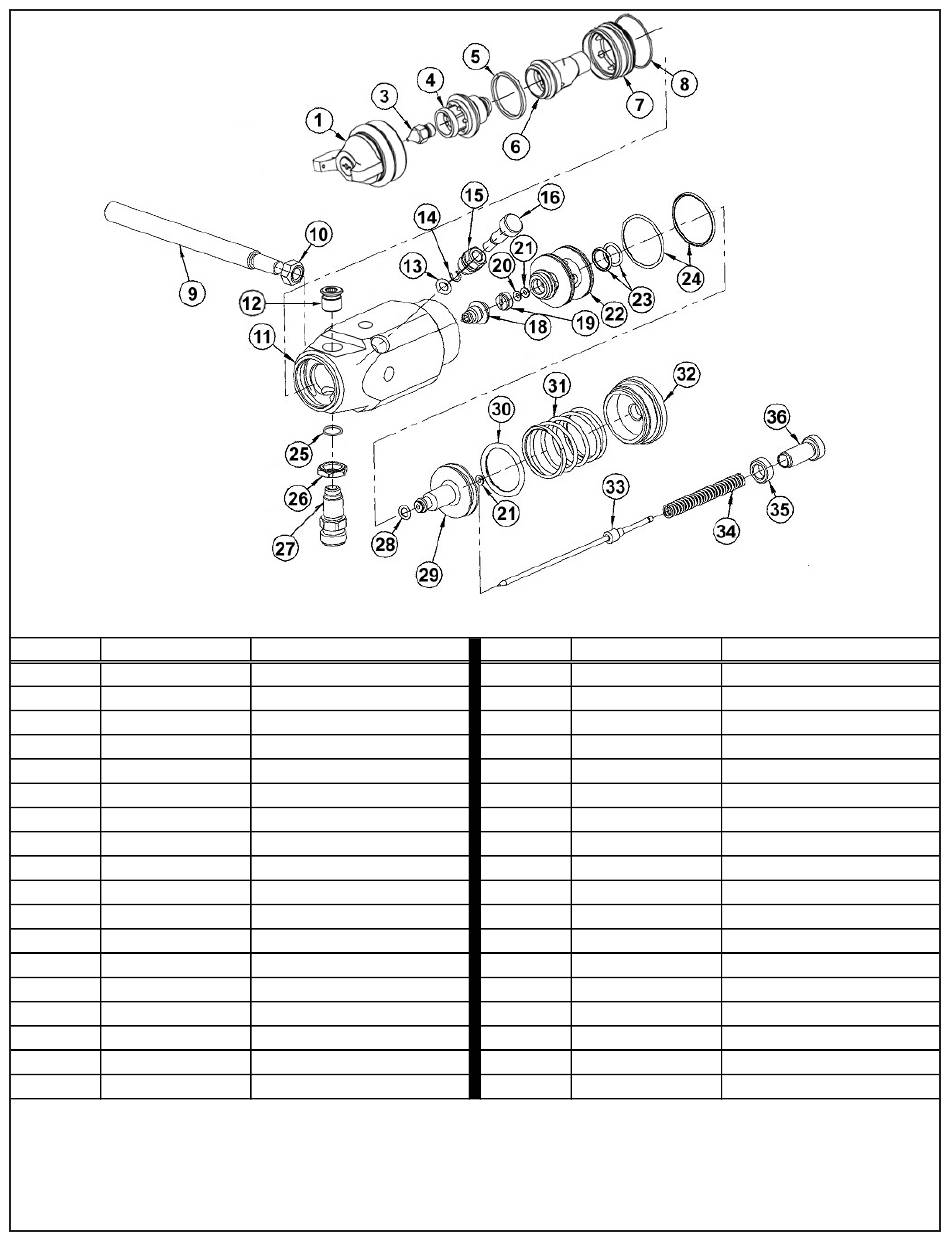

C.A. Technologies AutoCAT 100CVT Product Information page 3

ITEM NO. PART NO.
1 See Air Cap Chart
3 See Air Cap Chart
4 31-2201
5 61-1005
6 60-L11C
7 60-12C
8 60-131
9 60-614
10 98-0115
11 60-622
12 60-136
13 98-8108
14 98-0108
15 60-605
16 60-606
18 60-1400
19 60-604
20 98-8006
*Indicates part included in repair kit # 10-107
**See air cap selection chart on page 1
***Air inlet fittings are available in 90 degree elbow . 90 degree elbow tubing "push on" style fittings
P/N 53-520 1/8 NPT x 1/4" OD Tube
P/N 53-521 1/4 NPT x 3/8" OD Tube
*
*
*
DESCRIPTION
Air Cap**
Fluid Tip**
Fluid Nozzle Body
Seal*
Nozzle Body Carrier
Air Cap Adapter
O-Ring (Teflon)*
Mounting Rod
Locknut (3/8-16)
AutoCAT Gun Body Conventional
Plug
O-Ring (Teflon)*
Circlip
Fan Control Housing
Fan Control Stem
Needle Seal Assembly*
Seal Cap
O-Ring (Teflon)*
*
*
*
*
*
*
*
ITEM NO. PART NO.
21 98-7006
22 60-603
23 98-7014
24 98-7027
25 60-124
26 60-128
27 60-126
28 98-8010
29 60-602
30 98-7217
31 66-246
32 60-601
33 See Air Cap Chart
34 60-613
35 60-612
36 60-608
37 53-551 (Not Show n)***
38 53-552 (Not Show n)***
*
*
DESCRIPTION
O-Ring (Viton) 2 Required*
Air Control Spool
O-Ring (Viton) 2 Required*
O-Ring (Viton) 2 Required*
Seal*
Locknut
Fluid Inlet
O-Ring (Teflon)*
Piston
O-Ring (Viton)*
Piston Return Spring
End Cap
Needle Assembly
Needle Return Spring
Locknut - Fluid Control Knob
Fluid Control Knob
Cylinder Air Fitting 1/8 NPT x 1/4 NPS
Atomz. Air Fitting 1/4 NPT x 1/4 NPT
