C.A. Technologies Jaguar SLP Product Information

HVLP AIR CAP AND FLUID NOZZLE CHART
MODEL
AIR CAPS
NO.
23-1308
23-1310
23-1312
Jaguar
23-1313
SLP
23-1314
(JSLP)
23-1315
23-1317
23-1319
23-1322
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Note: Air cap test gages are available to confirm HVLP compliance.
*Gun inlet pressures may vary as required by application
Coating Atomization Technologies 337 South Arthur Avenue, Louisville CO 80027 Phone: 888.820.4498, Fax: 303.438.5708
*MAX GUN
FAN
INLET PRESS.
CONTROL
FOR HVLP
29* 60-1504 (S)
www.spraycat.com

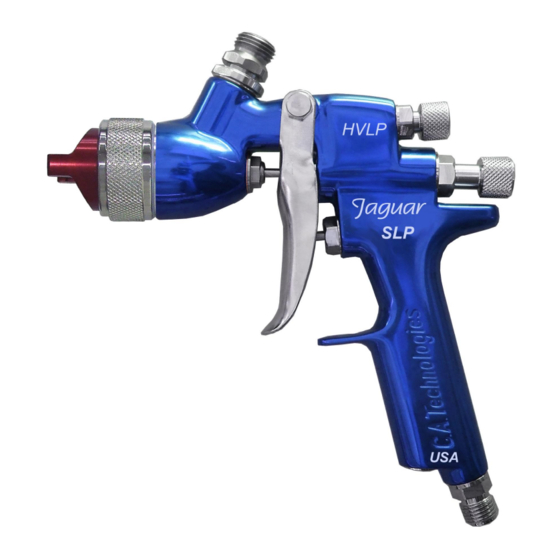

Jaguar SLP
GRAVITY FEED SPRAY GUN
SCFM @ STANDARD
MAX GUN IN CAT
INLET PACK
W, W-PPS
W, A, PPS
13.5
W, A, PPS
W, A, PPS
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS marking on needle
33-0208 0.8mm (.022")
33-0210 1.0mm (.040")
33-0212 1.2mm (.046")
33-0213 1.3mm (.052")
33-0214 1.4mm (.055")
33-0215 1.5mm (.059")
33-0217 1.7mm (.070")
33-0219 1.9mm (.075")
33-0222 2.2mm (.086")
W = Wood
A = Automotive
PPS = 3M™ PPS™
NEEDLES /
40-1308 (308)
40-1310 (310)
40-1312 (312)
40-1313 (313)
40-1314 (314)
40-1315 (315)
40-1317 (317)
40-1319 (319)
40-1322 (322)
