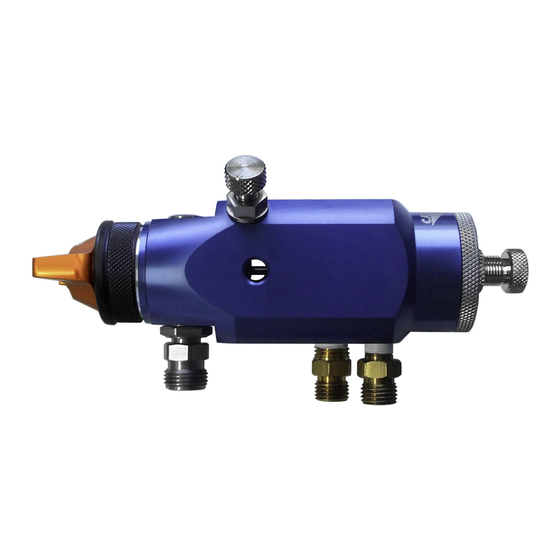

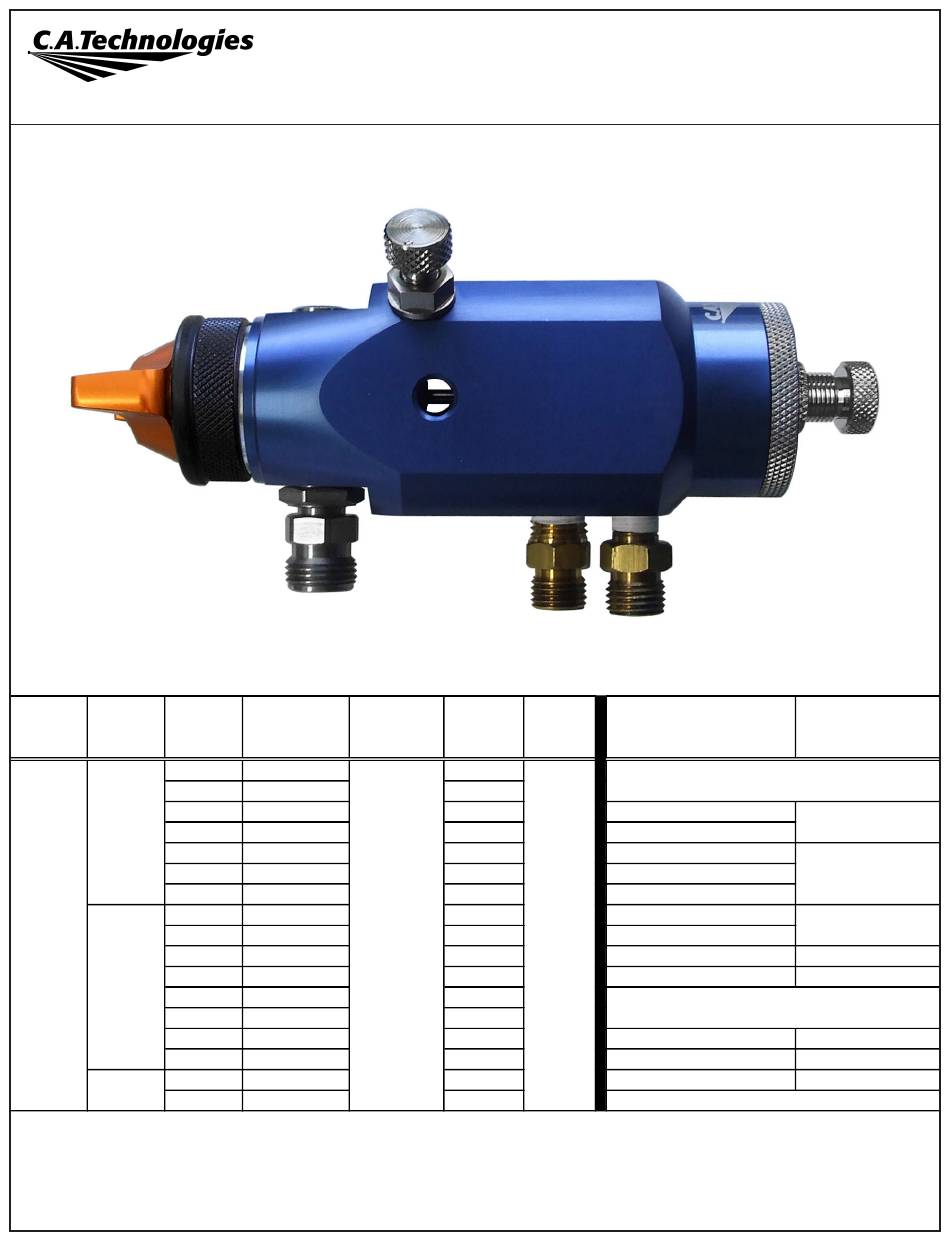

A A A A A ut ut oC oC A A A A A T 1 T 1 00C AUTOMATIC SPRAY GUN PRODUCT INFORMATION CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART MODEL PRESS / FLUID TIP AIR CAP AVAILABLE FLUID NEEDLES / AIR CAP CONTROL...
Page 2
A100C A100C A100C A100C A100C Operation and Maintenance Instructions for Spray Guns Gun Mounting A 1/2” dia. x 5” lg. rod is provided for mounting. The gun can be mounted from the left or right side or from the bottom. Thread the mounting rod (9) into one of the three holes that best suit the mounting location for the application.
Page 3
ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION See Air Cap Chart Air Cap** 98-7006 O-Ring (Viton) 2 Required* See Air Cap Chart Fluid Tip** 60-603 Air Control Spool 31-2201 Fluid Nozzle Body 98-7014 O-Ring (Viton) 2 Required* 61-1005 Seal* 98-7027...
Page 4
FLUID NOZZLE / AIR CAP SELECTION CHARTS AUTOCAT Series 100C - Pressure / Siphon Feed Guns A100C CONVENTIONAL AUTOMATIC SPRAY GUN FLUID ORIFICE x MAXIMUM MATERIAL TYPE PRESS. / SIPHON AIR CAP PATTERN WIDTH Very Thin 0.6, 0.7 mm x 2163 less than 16 sec.
