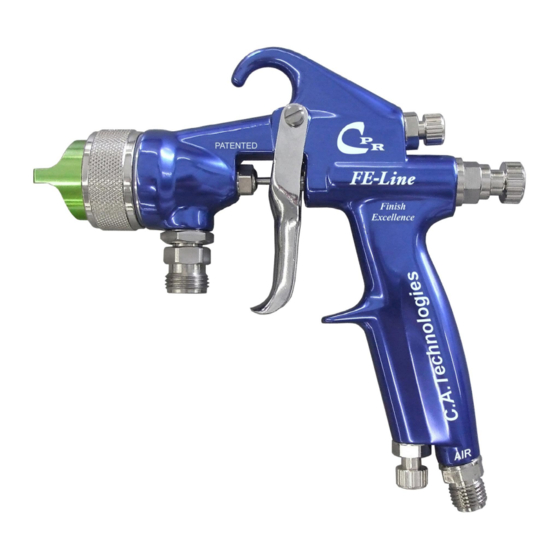

C.A. Technologies CPR-FE Product Information

The CPR-FE gun comes equipped with both a pressure reduced air cap 23-2101 and a HVLP air cap
23-1301 for areas requiring HVLP compliance.
23-2101 - consumes 11 cfm at 29 psi gun inlet.
23-1301 - consumes 13.5 cfm at 29 psi gun inlet.
23-2101 pressure reduced air caps can be used with the 0.8 mm - 1.7 mm fluid orifices listed below.
23-1301 HVLP air caps can be used with the full range of fluid orifices listed below.
HVLP/PRESSURE REDUCED AIR CAP AND FLUID NOZZLE CHART
MODEL FLUID TIP
AIR CAPS
NO. RANGE
23-2101
CPR
0.8 - 1.7
(Pressure
CPR-FE
Reduced)
23-1301
0.8 - 17
(HVLP)
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Note: Air cap test gages are available to confirm HVLP compliance.
*Gun inlet pressures may vary as required by application
*MAX GUN
FAN
INLET PRESS.
CONTROL
FOR HVLP
29*
60-1317
29*
PRESSURE FEED SPRAY GUN
SCFM @ STANDARD
MAX GUN IN CAT
INLET PACK
Included
11
Included
13.5
Included
DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC
CPR -FE
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS marking on needle
33-0208 0.8mm (.022")
33-0210 1.0mm (.040")
33-0212 1.2mm (.046")
33-0213 1.3mm (.052")
33-0214 1.4mm (.055")
33-0215 1.5mm (.059")
33-0217 1.7mm (.070")
PHONE: 586-210-0555
WEB: www.cetinc.com
NEEDLES /
40-1808 (08)
40-1810 (1810)
40-1812 (1812)
40-1813 (1813)
40-1814 (1814)
40-1815 (1815)
40-1817 (1817)
