C.A. Technologies Jaguar 300 Series Product Information

HVLP AIR CAP AND FLUID NOZZLE CHART
MODEL NO. AIR CAPS
23-1010
23-1013
23-1014
J300H 23-1015
23-1017
23-1019
23-1022
*Note: Air cap test gages are available to confirm HVLP compliance.
CONVENTIONAL AIR CAP AND FLUID NOZZLE CHART
MODEL NO. AIR CAPS
23-2013
J300C 23-2014
23-2016
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
Coating Atomization Technology P.O. Box 17820 Boulder CO 80308 (888) 820-4498 Fax (303) 438-5708
Jaguar 300 Series
*MAX GUN
INLET SIDEPORT
PRESS. FOR CONTROL
HVLP
45
45
45
60-1502 (#2)
45
45
45
45
*MAX GUN
INLET SIDEPORT
PRESS. FOR CONTROL
HVLP
45-55
60-1500
45-55
45-55

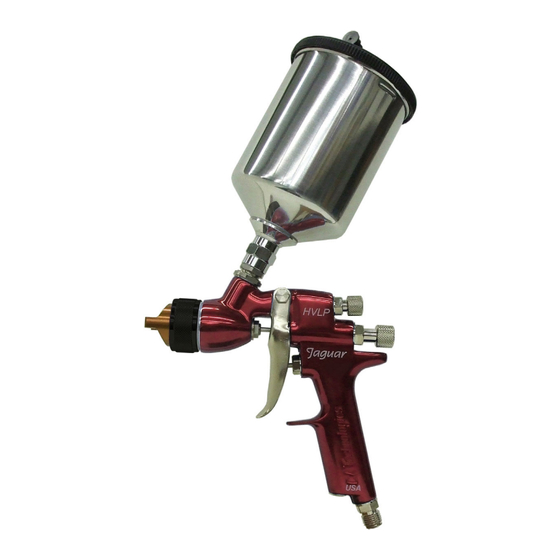

GRAVITY FEED SPRAY GUN
SCFM @
AIR CAP
MAX. GUN
RING
INLET
13.5
13.5
13.5
Included
13.5
13.5
13.5
13.5
SCFM @
AIR CAP
MAX. GUN
RING
INLET
9-10.7
Included
9-10.7
9-10.7
www.spraycat.com
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS
33-0210 1.0mm (.040")
33-0213 1.3mm (.052")
33-0214 1.4mm (.055")
33-0215 1.5mm (.059")
33-0217 1.7mm (.070")
33-0219 1.9mm (.075")
33-0222 2.2mm (.086")
AVAILABLE FLUID
NOZZLES TIPS
33-0613 1.3mm (.051")
33-0614 1.4mm (.055")
33-0616 1.6mm (.063")
NEEDLES /
(marking on
needle)
40-1310 (310)
40-1313 (313)
40-1314 (314)
40-1315 (315)
40-1317 (317)
40-1319 (319)
40-1322 (322)
NEEDLES /
(marking on
needle)
40-1313 (313)
40-1314 (314)
40-1315 (315)
