HVLP/Pressure reduced air cap and fluid nozzle chart
Pressure SCFM @ max
reduced gun inlet
air cap pressure
9 CFM
2403218
@ 29 PSI
9 CFM
2403224
@ 29 PSI
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Gun inlet pressures may vary as required by application
*Smaller and larger nozzle sizes are available upon request
SCFM @ max
gun inlet
HVLP air cap
pressure for
HVLP
9 CFM
2403233
@ 26 PSI
9 CFM
2403235
@ 26 PSI

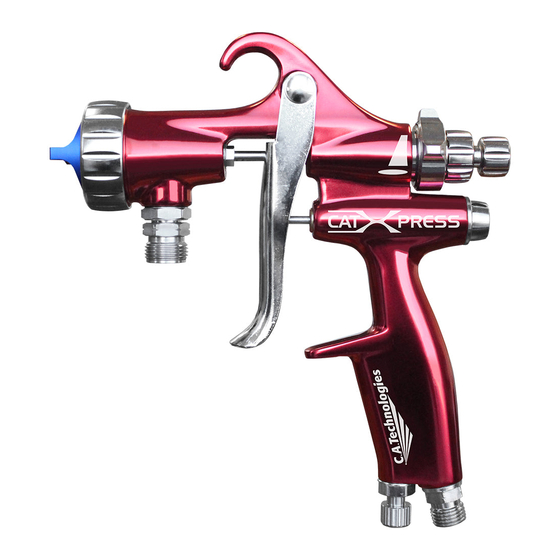

CAT-Xpress
The CAT-Xpress spray gun offers both a pressure reduced
air cap (2403218 &2403224) and HVLP air cap (2403233 &
2403235) for areas requiring HVLP compliance.
2403218 & 2403224
- Consumes 9 cfm at 29 psi gun inlet
- Pressure reduced
- 2403218 - can be used with 0.8 mm - 1.8 mm orifices
- 2403244 - can be used with 2.0 mm - 2.2 mm orifices
2403233 & 2403235
- Consumes 9 cfm at 26 psi gun inlet
- For areas requiring HVLP compliance.
- 2403233 - can be used with 0.8 mm - 1.8 mm orifices
- 2403235 - can be used with 2.0 mm - 2.2 mm orifices
Fluid tip
Orifice size
range
0.8 mm
1.0 mm
1.2 mm
0.8 mm
to 1.3 mm
1.8 mm
1.4 mm
1.5 mm
1.8 mm
2.0 mm
2.0 mm
2.2 mm
2.2 mm
1
PRESSURE FEED SPRAY GUN
PRODUCT INFORMATION
Fluid tip part Fluid needle part
number number
2404488 2397054
2404489 2397055
2404491 2397056
2412850 2412848
2397074 2397057
2404492 2397058
2404493 2397059
2404494 2397060
2404495 2397061
