DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC
PHONE: 586-210-0555
WEB: www.cetinc.com
HVLP AIR CAP AND FLUID NOZZLE CHART
MODEL
Press /
AIR CAPS
NO.
Siphon
21-1090
pressure
FE-LINE
21-1091
pressure
LOW CFM
21-1092
pressure
(FELCFM)
21-1093
pressure
21-1094
pressure
*Note: Air cap test gages are available to confirm HVLP compliance.
Actual fluid nozzle and air cap combinations are determined by application (see application chart page 4)
*Gun inlet pressures may vary as required by application
*MAX GUN
FAN
INLET PRESS.
MAX GUN
CONTROL
FOR HVLP
15
15
60-1317
15
18
33

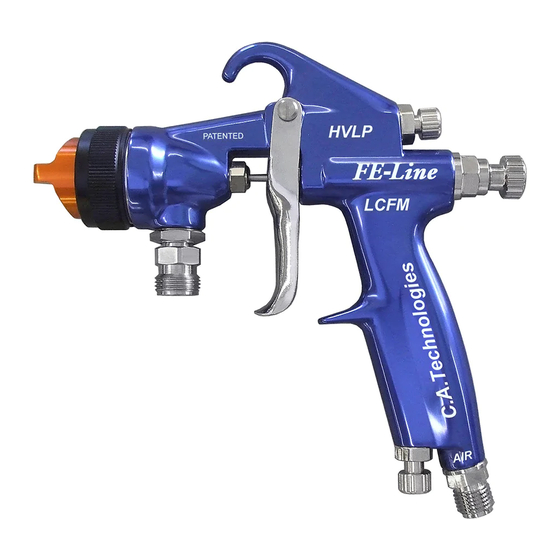

FE-Line LCFM
PRESSURE FEED SPRAY GUN
SCFM @
STANDARD
AIR CAP
IN CAT
RING
INLET
PACK
Included
6
8
21-1001
8
Included
10
13
Included
PRODUCT INFORMATION
AVAILABLE FLUID
NOZZLES TIPS
marking on needle
31-0205 0.5mm (.020")
31-0208 0.8mm (.022")
31-0210 1.0mm (.040")
31-0212 1.2mm (.046")
31-0213 1.3mm (.052")
31-0214 1.4mm (.055")
31-0215 1.5mm (.059")
31-0216 1.6mm (.063")
31-0217 1.7mm (.070")
NEEDLES /
40-1801 (1801)
Advertisement
Related Manuals for C.A. Technologies FE-Line LCFM
Summary of Contents for C.A. Technologies FE-Line LCFM
- Page 1 FE-Line LCFM PRESSURE FEED SPRAY GUN PRODUCT INFORMATION DISTRIBUTED BY COATING EQUIPMENT TECHNOLOGY, INC PHONE: 586-210-0555 WEB: www.cetinc.com HVLP AIR CAP AND FLUID NOZZLE CHART *MAX GUN SCFM @ STANDARD MODEL Press / AIR CAP AVAILABLE FLUID NEEDLES / AIR CAPS INLET PRESS.
- Page 2 FE-LCFM Operation and Maintenance Instructions for Spray Guns Operation 1. Connect air supply hose at handle of gun. 2. Connect a pressurized fluid supply to the gun fluid inlet. 3. Fluid flow can be controlled using the fluid control knob, this restricts flow by limiting needle travel. It is best to control fluid flow by proper selection of fluid orifice size and use the fluid control knob to “fine tune flow rate”.
- Page 3 HVLP AIR CAP TEST GAGES 21-1090-G 21-1092-G FELCFM 21-1093-G GUNS 21-1094-G ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION See Air Cap Chart Air Cap Ring** 60-1312 Fluid Control Knob See Air Cap Chart Air Cap** See Air Cap Chart Fluid Needle** See Air Cap Chart Fluid Nozzle Tip**...
- Page 4 FLUID NOZZLE / AIR CAP SELECTION CHARTS FE-LCFM Series - Pressure Feed Guns FE-LCFM HVLP SPRAY GUN FLUID ORIFICE x MAXIMUM MATERIAL TYPE AIR CAP PATTERN WIDTH Very Thin 0.5, 0.8 mm x 1090 (LCFM) less than 16 sec. Zahn #2 0.5, 0.8 mm x 1091 (LCFM) inks , dyes, 0.5, 0.8 mm x 1092 (LCFM)
