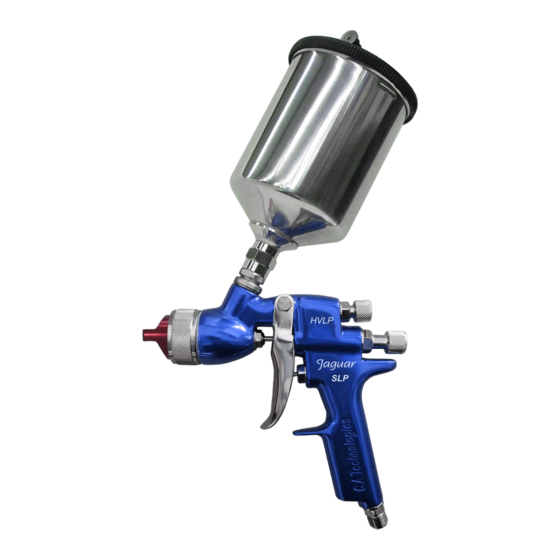

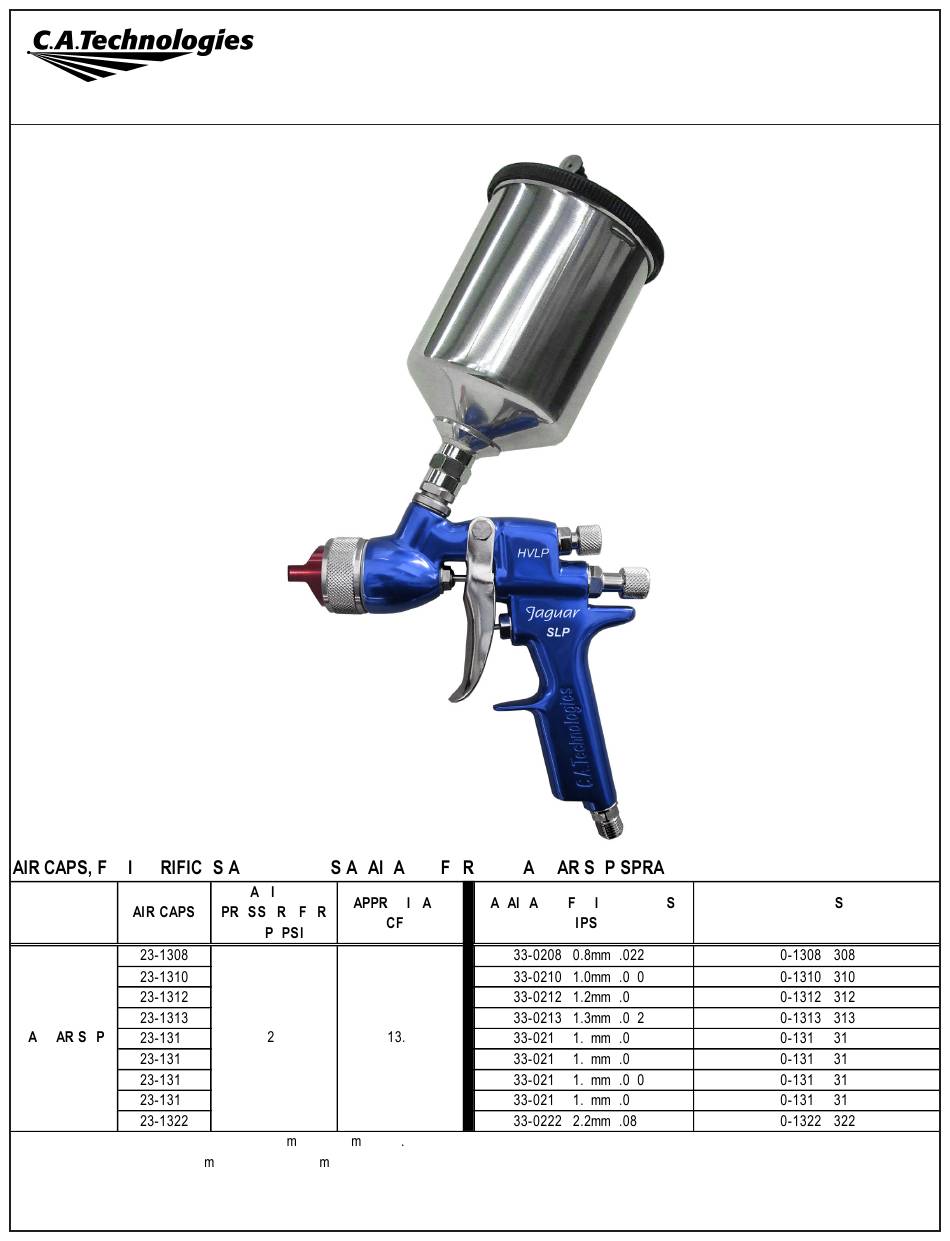

- Page 1 Jaguar SLP GRAVITY FEED SPRAY GUN PRODUCT INFORMATION !"#$ %# #&&'(&...
- Page 2 Operation and Maintenance Instructions for Jaguar SLP Gravity Spray Guns Operation 1. Connect air supply hose at handle of gun. 5/16” air hose x 25 ft. max. length is recommended. Also, only use CAT high flow quick disconnects and avoid using any restrictive fittings for the air supply to the gun.
- Page 3 HVLP AIR CAP TEST GAUGES 23-1308-G 23-1310-G JSLP 23-1312-G GUNS 23-1313-G 23-1314-G 23-1315-G 23-1317-G 23-1319-G 23-1322-G ITEM NO. PART NO. DESCRIPTION ITEM NO. PART NO. DESCRIPTION See Air Cap Chart Air Cap 60-1033 Trigger Pivot Screw s See Air Cap Chart Fluid Tip 60-2101 Trigger...
- Page 4 FLUID NOZZLE / AIR CAP SELECTION CHARTS SLP - Gravity Feed Spray Guns FLUID ORIFICE x MAXIMUM MATERIAL TYPE AIR CAP PATTERN WIDTH Very Thin 0.8 mm x 1308 less than 16 sec. Zahn #2 12" 29 psi @ 13.5 cfm 1.0 mm x 1310 inks , dyes, solvents, stains...
