Slinex SQ-07MT Quick Installation Manual

SQ-07MT

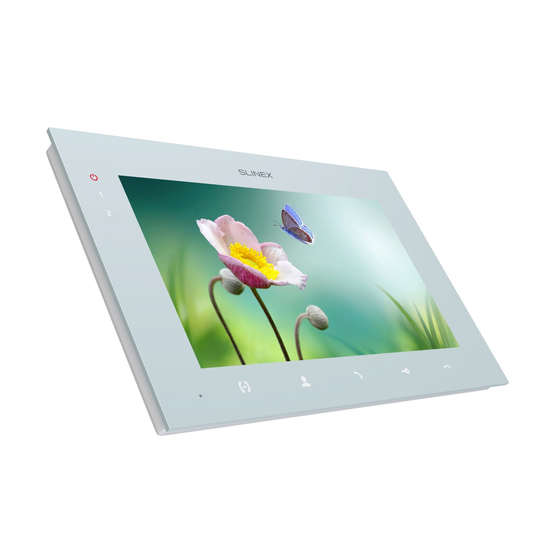

7" indoor monitor
with touch screen
ML-15HR
video outdoor
panel
KIT
Quick Installation Guide
{ Design. Uniqueness. Innovations }

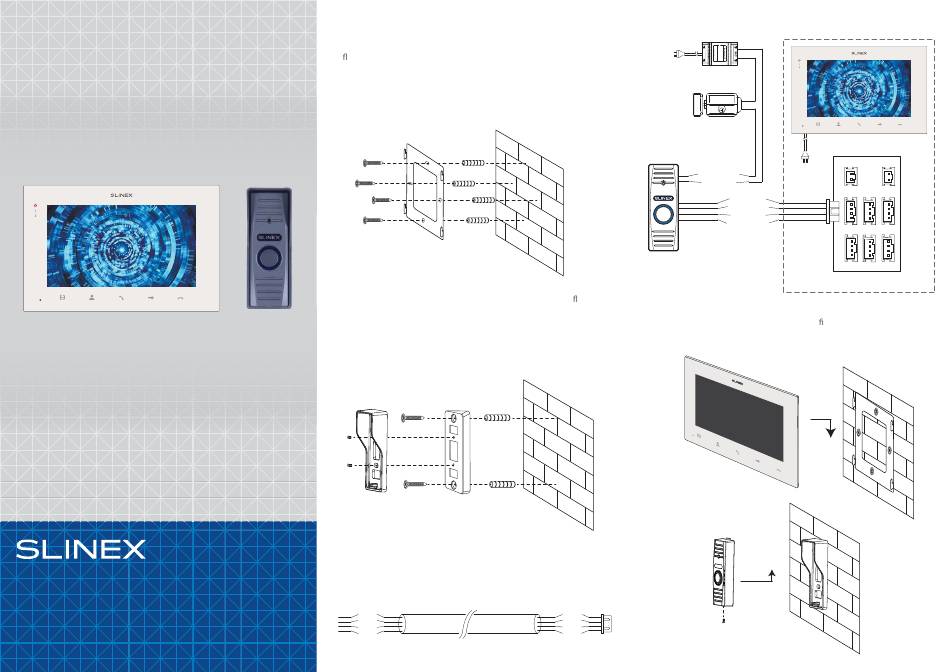

Step 1

• Take the indoor monitor surface mount bracket and place it 5 ft. up the
oor line.
• Mark and drill four halls in the wall.
• Take four wall anchors from the kit and hammer them into the drilled halls.
• Fix surface mount bracket on the wall by four screws from the kit.
+

Step 2

• Take the outdoor panel angle bracket and place it 5 ft. up the oor line.
• Mark and drill two halls inside the wall;
• Take two wall anchors from the kit and hammer them into the drilled halls;
• Fix angle bracket on the wall by two screws from the kit;
• Fix wall mounting bracket on the angle bracket by two screws from the kit;

Step 3

Connect outdoor panel to indoor monitor by 4-wire AWG21 cable according
to the wiring diagram on the next page.
Power
Audio
Ground
Video
Power
Audio
0 - 165 ft
Ground
Video
Wiring Diagram
Lock power
supply
Lock
COM (Brown)
N.O. (Blue)
Power (Red)
Audio (White)
GND (Black)
Video (Yellow)
ML-15HR

Step 4

• After all communication wires connection, x indoor monitor and outdoor
panel on the surface mount brackets installed previously.
TV out Power
Door 1 CCTV 1 Input
Door 2 CCTV 2 Output
SQ-07MT (Master)
