Related Manuals for S&T kontron KBox E-420-R1K/V1K
Summary of Contents for S&T kontron KBox E-420-R1K/V1K

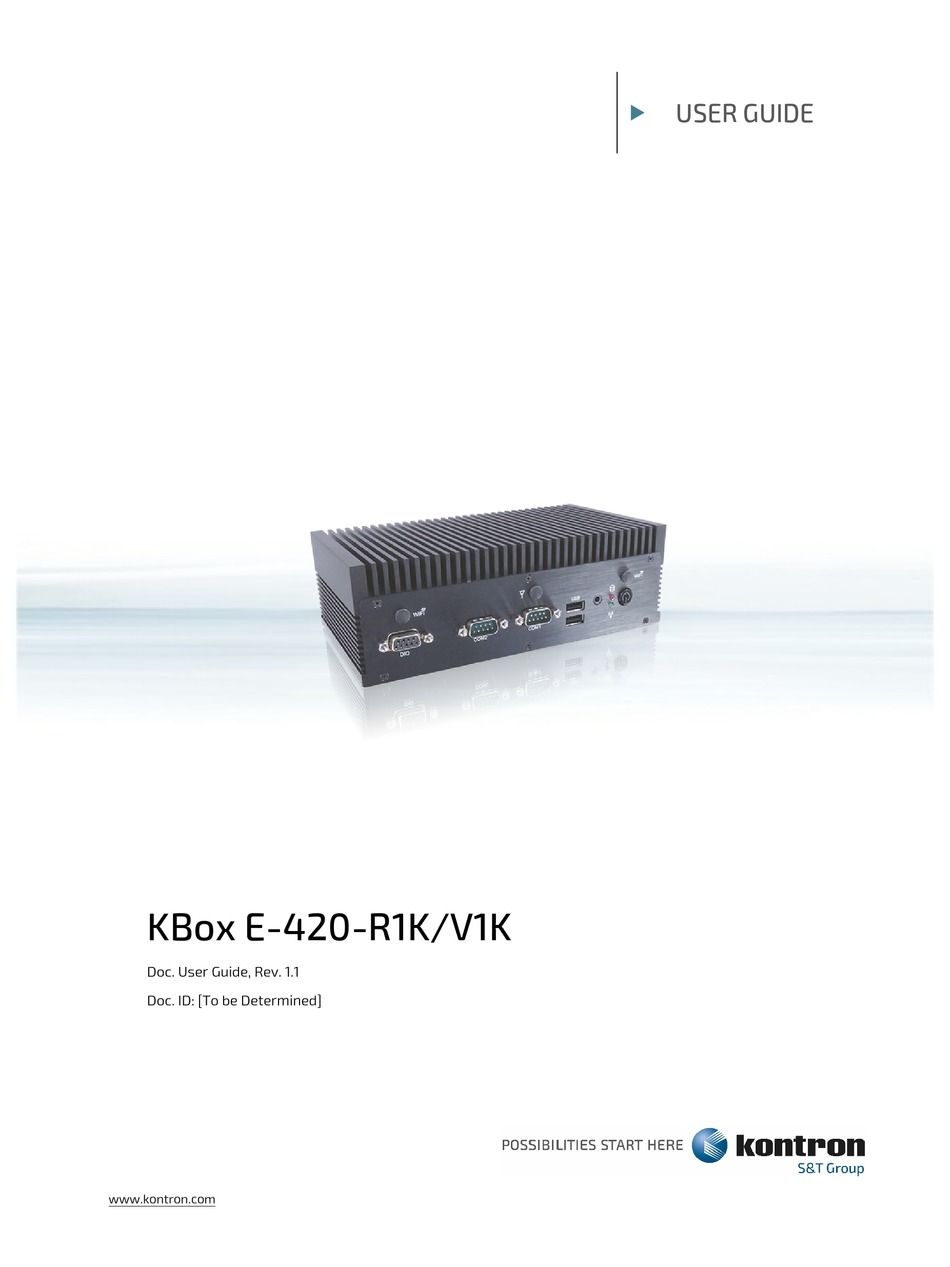

- Page 1 USER GUIDE KBox E-420-R1K/V1K Doc. User Guide, Rev. 1.1 Doc. ID: [To be Determined] www.kontron.com...
- Page 2 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 KBOX E-420-R1K/V1K - USER GUIDE Disclaimer Kontron would like to point out that the information contained in this user guide may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide.
- Page 4 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Intended Use THIS DEVICE AND ASSOCIATED SOFTWARE ARE NOT DESIGNED, MANUFACTURED OR INTENDED FOR USE OR RESALE FOR THE OPERATION OF NUCLEAR FACILITIES, THE NAVIGATION, CONTROL OR COMMUNICATION SYSTEMS FOR AIRCRAFT OR OTHER TRANSPORTATION, AIR TRAFFIC CONTROL, LIFE SUPPORT OR LIFE SUSTAINING APPLICATIONS, WEAPONS SYSTEMS, OR ANY OTHER APPLICATION IN A HAZARDOUS ENVIRONMENT, OR REQUIRING FAIL-SAFE PERFORMANCE, OR IN WHICH THE FAILURE OF PRODUCTS COULD LEAD DIRECTLY TO DEATH, PERSONAL INJURY, OR SEVERE PHYSICAL OR...
- Page 5 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Revision History Revision Brief Description of Changes Date of Issue Author/ Editor Initial Issue 2020-Dec-07 Update LAN chip 2021-Jan-05 Terms and Conditions Kontron warrants products in accordance with defined regional warranty periods. For more information about warranty compliance and conformity, and the warranty period in your region, visit http://www.kontron.com/terms- and-conditions.
-
Page 6: Symbols
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
KBox E-420-R1K/V1K - - User Guide, Rev. 1.1 For Your Safety Your new Kontron product was developed and tested carefully to provide all features necessary to ensure its compliance with electrical safety requirements. It was also designed for a long fault-free life. However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. -
Page 8: Lithium Battery Precautions
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Lithium Battery Precautions If your product is equipped with a lithium battery, take the following precautions when replacing the battery. Danger of explosion if the battery is replaced incorrectly. Replace only with same or equivalent battery type recommended by the manufacturer. ... -
Page 9: Table Of Contents
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. - Page 10 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.3.6. USB 3.1 ........................................25 4.3.7. Reset Button ......................................25 4.3.8. Wafer for External Power Switch ..............................25 4.4. Internal View ......................................26 4.4.1. DDR4 SO-DIMM Memory Socket ..............................26 4.4.2. mPCIe Socket ......................................26 4.4.3.
-
Page 11: List Of Tables
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11.11. Wafer for External Power Switch ..............................54 BIOS ........................................55 12.1. Starting the uEFI BIOS ................................... 55 12.2. Starting the uEFI BIOS ..................................56 12.2.1. Main Setup Menu ....................................56 12.2.2. Advanced Setup Menu ..................................59 12.2.3. - Page 12 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 17: Clamping the KBox E-410-APL onto the DIN rail ....................... 39 Figure 18: Phoenix power plug terminal ..............................40 Figure 19: Mechanical Drawing (model with DC Jack) ......................... 47 Figure 20: Mechanical Drawing (model with Phoenix connector) ....................48 Figure 21: BIOS Main Menu Screen System Data and Time ........................
-
Page 13: 1/ General Safety Instructions For It Equipment
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 1/ General Safety Instructions for IT Equipment Please read this chapter carefully and take careful note of the instructions, which have been compiled for your safety and to ensure to apply in accordance with intended regulations. If the following general safety instructions are not observed, it could lead to injuries to the operator and/or damage of the product;... - Page 14 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Additional safety instructions for DC power supply circuits To guarantee safe operation of devices with DC power supply voltages larger than 60 volts DC or a power consumption larger than 240 VA, please observe that: the device is set up, installed and operated in a room or enclosure marked with ‘‘RESTRICTED ACCESS’’, if ...
-
Page 15: Electrostatic Discharge (Esd)
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 1.1. Electrostatic Discharge (ESD) A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro-circuitry. Therefore proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the following precautions: 1. - Page 16 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Do not dispose of lithium batteries in general trash collection. Dispose of the battery according to the local regulations dealing with the disposal of these special materials, (e.g. to the collecting points for dispose of batteries). www.kontron.com // 16...
-
Page 17: 2/ Electromagnetic Compatibility
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 2/ Electromagnetic Compatibility For detailed information refer to section 10.3 ‘‘CE Directives and Standards’’. 2.1. Electromagnetic Compatibility (EU) This product has been designed for low level of radiated emission for residential, commercial and light industrial environments and high immunity level for industrial environmental. -
Page 18: 3/ Shipment And Unpacking
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 3/ Shipment and Unpacking Please check that your package is complete, and contains the items below (according to the ordered unit configuration). If you discover damaged or missing items, please contact your dealer. 3.1. -
Page 19: 4/ System Overview
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4/ System Overview The KBox E-420-R1K/V1K is an embedded system enclosed within a compact chassis, offering excellent processing and graphics performance. It can be optionally factory-equipped with an mPCIe WLAN / Bluetooth or WWAN card and / or M.2 Key B WWAN card for three antennas. -
Page 20: System Expansion Capabilities
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.1. System Expansion Capabilities 4.1.1. System Expansion via mPCIe Interface The baseboard comes with an onboard full-sized mPCIe interface connector. The connector is intended to be used to install a full-sized mPCIe WLAN, Bluetooth or combo card or a WWAN card. 4.1.2. -
Page 21: Front I/O Panel
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.2. Front I/O Panel Figure 1: Front I/O Panel 1 Power Button w/ LED (see Chapter 4.2.1) 2 Storage LED (see Chapter 4.2.2) 3 Wireless LED (see Chapter 4.2.3) 4 Line-out / Mic-in (see Chapter 4.2.4) 5 USB 2.0 (see Chapter 4.2.5) 6 RS232/422/485 (see Chapter 4.2.6) 7 DIO (see Chapter 4.2.7) -
Page 22: Storage Led
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Signal Description LED Off EUP Power Status 4.2.2. Storage LED The Storage LED blinks red when the data is being written into or read from the SSD which is installed in M.2 Key M socket. -
Page 23: Rear I/O Panel
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.3. Rear I/O Panel Figure 2: Rear I/O Panel (model w/ DC Jack) Figure 3: Rear I/O Panel (model w/ Phoenix Connector) 1 DC-In (Lockable DC Jack) (see Chapter 4.3.1) 2 DC-In (2-pin Phoenix Connector) (see Chapter 4.3.2) 3 DP (see Chapter 4.3.3) 4 HDMI 2.0 (see Chapter 4.3.4) 5 GbE LAN (see Chapter 4.3.5) -
Page 24: Dc-In (Lockable Dc Jack)
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.3.1. DC-In (Lockable DC Jack) The supplied power adapter converts AC power to DC for use with this jack. Power supplied through this jack supplies power to the PC. To prevent damage to the PC, always use the supplied power adapter. Adapter’s power cord shall be connected to a socket-outlet with earthing connection. -
Page 25: Usb 3.1
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.3.6. USB 3.1 The KBox E-420-R1K/V1K provides two USB 3.1 / 2.0 interfaces. These connectors allow connection of USB 3.1, USB 3.0 or USB 2.0 compatible device to the system. 4.3.7. Reset Button The reset button allows users to clear CMOS to reset the BIOS to defaults. -
Page 26: Internal View
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.4. Internal View Figure 5: Internal View (without cover) 1 DDR4 SO-DIMM Memory Socket (DIMM1 & DIMM2, see Chapter 4.4.1) 2 mPCIe Socket (MPCIE1, see Chapter 4.4.2) 3 M.2 Key B Socket (M2B1, see Chapter 4.4.3) 4 M.2 Key M Socket (M2M1, see Chapter 4.4.4) 5 Micro SIM Card Cage (SIM1, see Chapter 4.4.5) 6 Micro SIM Card Selection Jumper (JP6, see Chapter 4.4.6) -
Page 27: Key B Socket
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4.4.3. M.2 Key B Socket The KBox E-420-R1K/V1K reserves one M.2 Key B socket (Figure 5, pos. 3), allowing the expansion with a Type 22x42 WWAN module or M.2 SSD drive. 4.4.4. M.2 Key M Socket The KBox E-420-R1K/V1K reserves one M.2 Key M socket (Figure 5, pos. -
Page 28: 5/ Accessing Internal Components
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 5/ Accessing Internal Components This section contains important information that you must read before accessing the internal components. You must follow these procedures properly when installing, removing or handling any board. It is recommended to expand your system with applicable expansion card(s) before it is installed into an equipment, machine or cabinet. -
Page 29: Opening And Closing The Chassis
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 5.1. Opening and Closing the Chassis The KBox E-420-R1K/V1K is factory configured to meet customer requirements. Kontron does not recommend opening the system as this may cause damage to internal components. Before opening the KBox E-420-V1K, the system must be switched off and disconnected from the main power supply. -
Page 30: Installing So-Dimm Memory Module(S)
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 8: Descrewing the access cover of the KBox E-420-R1K/V1K (model w/ Phoenix connector) 4. Lift the access cover up. 5. Now you have access to the internal DDR4 SO-DIMM, mPCIe, M.2 Key B, M.2 Key M and Micro SIM Card slots / sockets respectively in order to remove or install hardware components. -
Page 31: Installing An Mpcie Expansion Card
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Visually check that each lever latch is fully closed and correctly engaged with the notch on the memory module edge. 6. Repeat step 2 - 5 to install the second SO-DIMM memory module in case two DIMM memory modules are required. Use memory modules with the same memory density in both socket! In case only one memory module is installed, we suggest installing it on the socket DIMM1. -
Page 32: Installing A Micro Sim Card
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 5.1.5. Installing A Micro SIM Card To install a Micro SIM card please proceed according to the steps described: 1. Open the device as described in the subsection 5.1 "Opening and Closing the Chassis" (step 1 - 5). 2. -
Page 33: 6/ Thermal Considerations
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 6/ Thermal Considerations 6.1. Available Processors Please refer to the chapter 10/ "Technical Specifications". The list of processors may be extended over the product lifetime. 6.2. Convection Cooling The applied cooling method provides adequate cooling of the device during operation and performs a one-way thermal transfer to the chassis. - Page 34 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 When the KBox E-420-R1K/V1K is extended and configured with third party components like mPCIe / M.2 expansion card(s) and SSD, it has to be taken into account that the air temperature inside the system is higher than the ambient temperature.
-
Page 35: 7/ Installation Instructions
Only personnel with appropriate qualifications, trainings and authorization are permitted to install and work with the Kontron KBox E-420-R1K/V1K. This device shall only be installed in or connected to systems that fulfill all necessary technical and specific environmental requirements. -
Page 36: System Mounting
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 7.1. System Mounting In order to adapt the KBox E-420-R1K/V1K for mounting Kontron offers different mounting solutions such as: KBox E-420-R1K/V1K configuration with a VESA mounting kit for vertical installation into a control cabinet / custom enclosure / machine / or onto a wall / the back of a monitor ... -
Page 37: Figure 12: Securing The Base Mounting Bracket
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 To mount the KBox E-420-R1K/V1K please proceed according to the steps described: 1. Prepare the mounting surface with sufficient screws (four screws for VESA mount) and if necessary anchors corresponding to the mounting surface type if no VESA-compliant screw holes are available. (The recommended screw size is M4 x 6 ~ 10 mm but it still depends on the available screw holes of the mounting surface and never be larger than M4 if any.) 2. -
Page 38: Vesa Mounting
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4. Place the KBox E-420-R1K/V1K onto the mounting surface by sliding the hooked mounting bracket into the based mounting bracket (Figure 14). 5. Secure the hand-screw knob located on the hooked mounting bracket to fix two brackets (Figure 14). Figure 14: Securing the KBox E-420-R1K/V1K onto the mounting surface 7.1.2. -
Page 39: Figure 16: Securing The Din Rail Clamp
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 16: Securing the DIN rail clamp 2. Make sure that DIN rail mounting clamp is in the upright position. 3. Clip the top of the DIN rail clamp into the DIN rail and push the bottom of the DIN rail firmly until it clamps onto the bottom of the DIN rail. -
Page 40: Dc Power Connection
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 7.2. DC Power Connection Depending on the ordered configuration, the KBox E-420-R1K/V1K is connected by a 2-pin Phoenix connector (Figure 3, pos. 1) via a DC power supply wiring or a DC power input jack (Figure 2, pos. 1) to a DC power source. For the model with DC jack, the KBox E-420-R1K/V1K is delivered with a power adapter to convert AC voltage into DC 12 V and a power cord to carry AC power to the power adapter. - Page 41 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 4. Insert the wires into the corresponding clamp of the Phoenix plug terminal. Make sure that you have the right polarity of the connection [refer to Figure 18 or subsection 11.2 "DC Power Input (Phoenix Connector)"]. 5.
-
Page 42: 8/ Start Up
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 8/ Start Up The KBox E-420-R1K/V1K must be only operated with the nominal voltage of 12 V DC of type SELV for models with DC jack or of 19 V ~ 36 V DC for models with Phoenix connector. - Page 43 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 3. Connect the power cable to a power outlet. 4. Press the power button (Figure 1, pos. 1) on the front panel to turn on the system. For connection to DC main power supply: 1.
-
Page 44: Operating System And Hardware Component Drivers
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 8.2. Operating System and Hardware Component Drivers Your system can be supplied optionally with a pre-installed operating system. If you have ordered your KBox E-420-R1K/V1K with a pre-installed operating system, all drivers are installed in accordance with the system configuration ordered (optional hardware components). -
Page 45: 9/ Maintenance And Cleaning
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 9/ Maintenance and Cleaning Equipment from Kontron requires only minimum servicing and maintenance for proper operation. For light soiling, clean the KBox E-420-R1K/V1K with a dry cloth. Carefully remove dust from the surface of the chassis using a clean, soft brush. -
Page 46: Technical Specifications
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Technical Specifications Table 3: Technical Specifications System Processor AMD Ryzen™ R1000 Series Processors AMD Ryzen™ V1000 Series Processors Memory 2x DDR4 SO-DIMM Video Display Interface 1x DP (on rear) ... -
Page 47: Mechanical Specifications
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 System 1x Wireless LED (on front) 1x Reset Button (on rear) 1x Wafer for External Power Switch (on rear) Cooling Cooling Method Passive Software OS Support Windows 10 10.1. -
Page 48: Figure 20: Mechanical Drawing (Model With Phoenix Connector)
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 20: Mechanical Drawing (model with Phoenix connector) (unit: mm) www.kontron.com // 48... -
Page 49: Environmental Conditions
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 10.2. Environmental Conditions Table 5: Environmental Conditions Operating Temperature 0 °C ~ 45 °C / 32 °F ~ 113 °F Storage Temperature -20 °C ~ 80 °C / -4 °F ~ 176 °F Humidity ... -
Page 50: 11/ Standard Interfaces
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11/ Standard Interfaces -- - Pin Assignments Low-active signals are indicated by a minus sign. 11.1. DC Power Input (DC Jack) Table 7: DC Power Input (see Figure 2, pos. 1) Signal Name DC Jack +12V DC 11.2. -
Page 51: Usb 3.1 Port
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11.5. USB 3.1 Port Table 11: USB 3.1 Port (see Figure 2 & 3, pos. 6) USB 2.0 Contact Pin USB 3.1 Contact Pin 9-pin USB Connector Type A Version 3.1 / 2.0 Signal Name Signal Name +USB_VCC... -
Page 52: Hdmi Connector
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11.7. HDMI Connector Table 13: HDMI Connector (see Figure 2 & 3, pos. 4) Signal Name HDMI Connector Type A Version 2.0 TMDS Data2+ Ground TMDS Data2- TMDS Data1+ Ground TMDS Data1- TMDS Data0+ Ground TMDS Data0- TMDS Clock+... -
Page 53: Digital I/O Port
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11.9. Digital I/O Port Table 15: Digital I/O Port (see Figure 1, pos. 7) Signal Name DIO Port (9-pin D-SUB Female Connector) DIO_0 DIO_1 DIO_2 DIO_3 DIO_4 DIO_5 DIO_6 DIO_7 11.10. Line-Out / Mic-In Combo Jack Table 16: Line-Out / Mic-In Combo Jack (see Figure 1, pos. -
Page 54: Wafer For External Power Switch
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 11.11. Wafer for External Power Switch Table 17: Wafer for External Power Switch (see Figure 2 & 3, pos. 8) Signal Name Wafer for External Power Switch, Pitch = 1.25 mm Power S/W+ Power S/W- www.kontron.com // 54... -
Page 55: 12/ Bios
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 BIOS 12.1. Starting the uEFI BIOS The KBox E-420-R1K/V1K is provided with a Kontron-customized, pre-installed and configured version of AMI Aptio® V uEFI BIOS. AMI BIOS firmware is based on the Unified Extensible Firmware Interface (UEFI) specification and the AMD Platform Innovation Framework for EFI. -
Page 56: Starting The Uefi Bios
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2. Starting the uEFI BIOS The Setup utility features shows six menus in the selection bar at the top of the screen: Main Advanced Power Boot Security Save &... -
Page 57: Figure 21: Bios Main Menu Screen System Data And Time
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 21: BIOS Main Menu Screen System Data and Time BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Product Information Product Name KBox E-420-V1K BIOS Version KE420V1K.100 (x64) BIOS Build Date 12/04/2020 CPU Information AMD Ryzen Embedded V1605B with Radeon Vega Gfx... -
Page 58: Figure 22: Bios Main Menu Screen - - Amd Firmware Version
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 22: BIOS Main Menu Screen -- - AMD Firmware Version BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit AMD Firmware Version AGESA Version EmbeddedPI-FP5_1.2.0.3 PSP BootLoader Version 0.8.0.74 PSP SecureOS Version 0.8.0.74 ABL Version 20022400... -
Page 59: Advanced Setup Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.2. Advanced Setup Menu The Advanced setup menu provides sub-screens and functions for advanced configurations. The following sub- screen functions are included in the menu: M.2 Key B and LAN Configuration Display Configuration ... -
Page 60: Figure 23: Bios Advanced Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 23: BIOS Advanced Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit M.2 Key-B Function [PCIE] Onboard LAN1 Controller [Enabled] Onboard LAN2 Controller [Enabled] Load Intel I211/I210 UNDI [Disabled] LAN Boot I210-AT [Disabled] LAN Boot I211-AT... -
Page 61: Figure 24: Bios Advanced Menu - Display Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 24: BIOS Advanced Menu - Display Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Display Configuration Integrated Graphics Controller [Enabled] → ←: Select Screen UWA Frame Buffer Size* [512M] ↑... -
Page 62: Figure 25: Bios Advanced Menu - - Cpu Chipset Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 25: BIOS Advanced Menu -- - CPU Chipset Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit CPU Chipset Configuration SVM Mode [Enabled] → ←: Select Screen NX Mode [Enabled] ↑... -
Page 63: Figure 26: Bios Advanced Menu - - Nvme Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 26: BIOS Advanced Menu -- - NVMe Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit NVMe Configuration No NVMe Device Found → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 64: Figure 27: Bios Advanced Menu - - Sata Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 27: BIOS Advanced Menu -- - SATA Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit SATA Configuration SATA Controller [Enabled] → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 65: Figure 28: Bios Advanced Menu - - Usb Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 28: BIOS Advanced Menu -- - USB Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit USB Configuration USB Devices: → ←: Select Screen 1 Keyboard ↑ ↓: Select Item Enter: Select Legacy USB Support [Enabled]... -
Page 66: Figure 29: Bios Advanced Menu - - Trusted Computing
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 29: BIOS Advanced Menu -- - Trusted Computing BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Configuration Security Device Support [Disable] NO Security Device → ←: Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt. -
Page 67: Figure 30: Bios Advanced Menu - - Dio Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 30: BIOS Advanced Menu -- - DIO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit DIO Configuration User Configuration [Disabled] DIO_0* [Output High] DIO_1* [Output High] DIO_2* [Output High] DIO_3* [Output High] DIO_4*... -
Page 68: Figure 31: Bios Advanced Menu - - Super Io Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 31: BIOS Advanced Menu -- - Super IO Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super IO Configuration Serial Port UART Protection [No Protection] → ←: Select Screen >... -
Page 69: Figure 32: Bios Advanced Menu - - Super Io Configuration - - Serial Port 1 Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 32: BIOS Advanced Menu -- - Super IO Configuration -- - Serial Port 1 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 1 Configuration Serial Port [Enabled] →... -
Page 70: Figure 33: Bios Advanced Menu - - Super Io Configuration - - Serial Port 2 Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 33: BIOS Advanced Menu -- - Super IO Configuration -- - Serial Port 2 Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Super Port 2 Configuration Serial Port [Enabled] →... -
Page 71: Figure 34: Bios Advanced Menu - - H/W Monitor
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 34: BIOS Advanced Menu -- - H/W Monitor BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit PC Health Status CPU Temperature - TSI : +67 C CPU Temperature - Thermistor : +56 C →... -
Page 72: Figure 35: Bios Advanced Menu - - Tls Auth Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 35: BIOS Advanced Menu -- - Tls Auth Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit > Server CA Configuration > Client Cert Configuration → ←: Select Screen ↑... -
Page 73: Figure 37: Bios Advanced Menu - - Tls Auth Configuration - - Server Ca Configuration - - Enroll Cert
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 37: BIOS Advanced Menu -- - Tls Auth Configuration -- - Server CA Configuration -- - Enroll Cert BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit > Enroll Cert Using File Cert GUID →... -
Page 74: Figure 38: Bios Advanced Menu - - Network Stack Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Figure 38: BIOS Advanced Menu -- - Network Stack Configuration BIOS SETUP UTILITY Main Advanced Power Boot Security Save & Exit Network Stack [Enabled] Ipv4 PXE Support [Enabled] Ipv4 HTTP Support [Disabled] → ←: Select Screen Ipv6 PXE Support [Disabled] ↑... -
Page 75: Power Setup Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.3. Power Setup Menu The Power setup menu provides functions and a sub-screen for power configurations. The following sub-screen function is included in the menu: WatchDog Timer Configuration Figure 39: BIOS Power Setup Menu BIOS SETUP UTILITY Main Advanced... -
Page 76: Figure 40: Bios Power Setup Menu - - Watchdog Timer Configuration
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Feature Option Description MagicPacket] Resume By PCI-E [Disabled], [Enabled] Select whether to enable Wake from PCI-E Device. Device Resume By Ring [Disabled], [Enabled] Select whether to enable Wake from Ring Device. Device Resume By RTC [Disabled], [Enabled] Select whether to enable Wake Up on Alarm, to turn on your Alarm... -
Page 77: Boot Setup Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.4. Boot Setup Menu The boot setup menu lists the for boot device priority order, that is generated dynamically. Figure 41: BIOS Boot Setup Menu BIOS SETUP UTILITY Main Advanced Power Boot Security Save &... -
Page 78: Security Setup Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.5. Security Setup Menu The Security setup menu provides information about the passwords and functions for specifying the security settings. The passwords are case-sensitive. The KBox E-420-R1K/V1K provides no factory-set passwords. If there is already a password installed, the system asks for this first. To clear a password, simply enter nothing and acknowledge by pressing <RETURN>. - Page 79 KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.5.1. Remember the password It is highly recommended to keep a record of all passwords in a safe place. Forgotten passwords results in being locked out of the system. If the system cannot be booted because the User Password or the Supervisor Password are not know, contact Kontron Support for further assistance.
-
Page 80: Save & Exit Setup Menu
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 12.2.6. Save & Exit Setup Menu The exit setup menu provides functions for handling changes made to the UEFI BIOS settings and the exiting of the setup program. Figure 43: BIOS Save & Exit Setup Menu BIOS SETUP UTILITY Main Advanced... -
Page 81: Appendix A: List Of Acronyms
KBox E-420-R1K/V1K - User Guide, Rev. 1.1 Appendix A: List of Acronyms The following table does not contain the complete acronyms used in signal names, signal type definitions or similar. A description of the signals is included in the I/O Connector and Internal connector chapters within this user guide. -
Page 82: About Kontron
KBox E-420-R1K/V1K - - User Guide, Rev. 1.1 About Kontron Kontron is a global leader in Embedded Computing Technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
