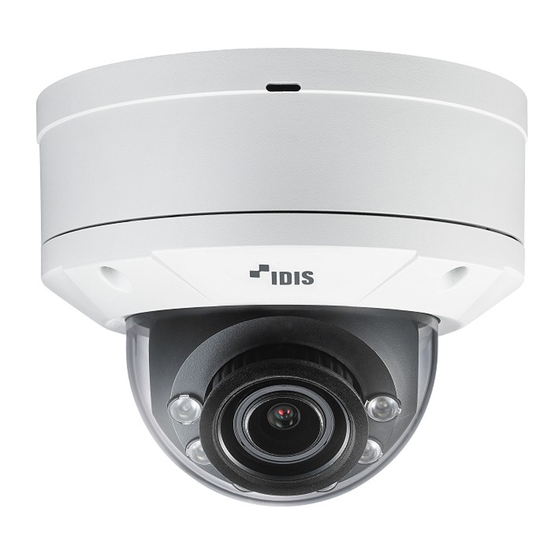

- Page 1 Network Camera Operation Manual DC-D3233HRX-N / DC-D3243HRX-N / DC-D6233HRX / DC-D6243HRX Powered by...
- Page 2 Before reading this manual This is a basic operation manual for use of an IDIS network camera. Users who are using this product for the first time, as well as users with experience using comparable products, must read this operation manual carefully before use and heed to the warnings and precautions contained herein while using the product.
- Page 3 Before reading this manual Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1.
- Page 4 IDIS Co., Ltd. reserves all rights concerning this manual. Use or duplication of this manual in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this manual are subject to change without prior notice for reasons such as functionality enhancements.
-
Page 5: Table Of Contents
Table of Contents Part 1 - Remote Setup ........7 Remote Setup . - Page 6 Part 2 - IDIS Web ........
-
Page 7: Part 1 - Remote Setup
Configure basic network camera settings and all other system settings. Screen images may vary depending on the model. Launch the IDIS Discovery program and then from the main screen, select a network camera whose settings you wish to change. Click on the Setup icon. -
Page 8: Quick Setup
Part 1 - Remote Setup Quick Setup From the Remote Setup screen, select the menu on the left to display the current settings. Select an option under the menu to change the corresponding settings. Once you have changed Quick Setup allows you to set up System, Network, the settings, click Save to apply the settings. -
Page 9: General
There may be some more settings that cannot be changed, too. If you want to change those settings, connect to the camera by using the IDIS Discovery program. - ONVIF Event Type •... -
Page 10: Date/Time
Part 1 - Remote Setup Date/Time User/Group • User/Group: Change remote camera control • Date/Time: Change the camera’s date/time settings permission settings for users and user groups. and display formats and configure the time zone and daylight saving time settings. Click Save to apply the - Add Group: Add a new user group. -
Page 11: Network
Part 1 - Remote Setup Network • User/Group settings can only be configured by users belonging to the Administrator group. • There is no default password for the Administrator group's admin user. • Standard groups (Administrator, Operator, and User) cannot be edited or deleted. Authorities assigned here apply identically to ONVIF protocol user groups. -
Page 12: Ip Address
Part 1 - Remote Setup IP Address IPv6 IPv4 • Check Use to activate IPv6. • Type: Select the type of network you are using. If this option has been changed, click Save to apply the • Type: Select the type of network you are using. If this current settings, and then restart Remote Setup. -
Page 13: Fen
Web browser. (If you can not access special characters, you can access by changing the encoding.) The FEN Server operated by IDIS is a service to its clients and may go offline without notice for server update purposes or due to an unexpected failure. -
Page 14: Port/Qos
Web / HTTP ports are enabled by default and cannot be disabled. By enabling IDIS Web and RTSP ports, you will be able to use the IDIS Web program or a media player that supports RTSP (Real-Time Streaming Click Apply to use the recommended port numbers. -
Page 15: Bandwidth Control
Part 1 - Remote Setup Bandwidth Control • In a WAN environment, it is recommended that you use the UPnP function if you record video by using the FEN function or FEN connection is not smooth. Regulates the camera’s network bandwidth use based Otherwise, monitoring or recording might not be on network traffic fluctuations. -
Page 16: Security
Part 1 - Remote Setup Security IEEE 802.1X Select the IEEE 802.1X option to enable IEEE 802.1X network connection authentication. • IP Filtering: Select this option to enable IP Filtering. IP Filtering allows camera access from certain IP addresses and blocks access from others. •... -
Page 17: Video
Part 1 - Remote Setup Video Camera Image Sensor Configure Image Sensor settings. Configure Camera, Streaming, Webcasting, MAT, and Privacy Masking options. • Frame Rate: Set the frame rate of image sesor. Selecting 30.00 ips limits the frame rate of images for streaming under Video >... - Page 18 Part 1 - Remote Setup White Balance Exposure Configure White Balance settings. Configure Exposure settings. • Preset: Use preconfigured white balance settings. • Iris: Adjust the openness of the lens IRIS. - Auto: Allow the system to adjust the white - Auto: The system will assess the lighting conditions balance automatically.
- Page 19 Part 1 - Remote Setup - HSBLC (High Suppress Backlight Compensation): Day & Night When a certain area of images is too bright Configure Day & Night settings. due to backlight under low lighting conditions and it causes the other area to be too dark, this function provides the other area of images brightly and clearly by blocking the backlight in the certain area.
- Page 20 Part 1 - Remote Setup • Switching Level: Sets up the switching level between Miscellaneous daytime and nighttime modes. For example, if the Configure Miscellaneous settings. darkness level is set to 3 and the brightness level to 5, the system switches to nighttime mode when in lighting conditions of level 3 or below and to daytime mode when in lighting conditions of level 5 or over.
-
Page 21: Streaming
Part 1 - Remote Setup Streaming feature has been enabled. • Intelligent Codec: Analyze real-time video intelligently to minimize bitrate while maintaining frame rate and image quality. In environments where there are many video changes, image quality can be reduced. •... -
Page 22: Webcasting
Part 1 - Remote Setup Webcasting Select the MAT option to use the MAT (Motion Adaptive Use the webcasting service to view live images from the camera on a web site. Transmission) feature during video transmission and recording. • HTML Code: Copy and paste the html code shown on •... -
Page 23: Privacy Masking
Part 1 - Remote Setup Audio Privacy Masking Select Privacy Masking to set up a privacy mask over Configure audio in/out settings. a specific area. The section on which a privacy mask is applied will appear as black when monitoring video. •... -
Page 24: Audio
Part 1 - Remote Setup Event Action Input/Output Designate event detection alert actions. • Audio Codec: Select an audio codec. • Input: Select an option and then adjust the volume.Noise Filter reduces the environmental noise and enhances the voice. If you turn on the noise filter, the sound may be distorted somewhat. -
Page 25: Alarm Out
Part 1 - Remote Setup Alarm out Email Select Email to send out emails. Select Alarm Out to enable alarm out. • SMTP Server/Port: Enter the SMTP server’s IP address • Dwell Time: Designate the alarm out duration. When (or domain name) and port number you received an event occurs, alarm out will be generated for the from the network administrator. -
Page 26: Remote Callback
Select Remote Callback to send callback messages to a Select Audio Alarm to generate audio. remote system. • Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 27: Ftp Upload
Part 1 - Remote Setup FTP Upload Select FTP Upload to upload .jpg image of the event detected to an FTP server. - FTP Server: Enter the FTP server’s IP address (or domain name). - Upload Path: Designate the file upload path. - Port: Enter the FTP server’s port number. -
Page 28: Record
Part 1 - Remote Setup Record • When specifying the Upload Path or Base File Name, you cannot use special characters such as \, /, #, *, |, :, ", <, >, and ?. Select Record to record video on the SD memory card. •... - Page 29 • Recordings saved on the SD memory card can be cause the recording to exceed the 60MB limit and searched and played back from the IDIS Solution stop before the end of the specified recording Suite Compact program or remotely from the duration.
-
Page 30: Event
• Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 31: Motion Detection
Some detection blocks by the number of points. models only Polygon is not supported in IE 10 or earlier. DC-D6233HRX, DC-D6243HRX • Sensitivity: Select daytime and nighttime motion detection sensitivity levels. Higher values will result in more sensitive motion detection. -
Page 32: Trip-Zone
- Remote Callback: Select this option to send a message to a remote system and then select which system to send the message to. • Not supported from the IDIS Web program. • The camera must be registered to the remote DC-D6233HRX, DC-D6243HRX system in order to use the Remote Callback feature. - Page 33 Part 1 - Remote Setup (Region): Select/unselect multiple trip zone • Not supported from the IDIS Web program. blocks. • The camera must be registered to the remote (Fill): Select/unselect all trip zone blocks. system in order to use the Remote Callback (Polygon): Select/unselect polygon trip zone feature.
-
Page 34: Audio Detection
• Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 35: Tampering
DC-D3233HRX-N, DC-D3243HRX-N DC-D6233HRX, DC-D6243HRX • Sensitivity: Define the tampering detection sensitivity. Higher values will result in more sensitive detection. -
Page 36: Line Cross
• Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 37: Loitering
• Not supported from the IDIS Web program. • The camera must be registered to the remote system in order to use the Remote Callback feature. -
Page 38: Object Detection
• Area: Click Setup and define the object detection area using blocks. • Not supported from the IDIS Web program. (Select)/ (Unselect): Enable/disable object • The camera must be registered to the remote detection blocks. -
Page 39: System Event
- Send Email: Select to send out an email when the • Not supported from the IDIS Web program. system comes on line. • The camera must be registered to the remote... - Page 40 Action must be configured correctly in order to send out emails and messages. • Remote Callback is not supported on IDIS Web. • The camera must be registered to the remote system in order to use the Remote Callback feature.
-
Page 41: Part 2 - Idis Web
– Tools → Internet Options → Advanced → Security → Use TLS 1.0 (select) • If connecting by entering an IP address and a port number, you can connect by entering just the IP address if IDIS Web connection port number has been set to 80 (443 when entering https). - Page 42 Run as administrator option. Otherwise, certain IDIS Web functions might not be available. • When running IDIS Web, the bottom section of the screen may get cut off if the address bar or the status bar is shown.
-
Page 43: Web Live Mode
2013-05-29 16:25:22 2013-05-29 16:25:22 Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays the current time. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen. - Page 44 Part 2 - IDIS Web Used to control zoom and focus at a remote location. • One push button - Press this button to find the optimum focus automatically. - It is recommended to get an approximate focus using the manual focusing button before pressing the one push button for fast and efficient focusing.
- Page 45 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Live mode does not affect the camera's name on the remote system.
-
Page 46: Web Search Mode
113.49 NC-D320-IP & Press to terminate IDIS Web. Place the mouse pointer on the logo to check IDIS Web's version. TYPE 1 Displays time information of the video recording from the remote locale. Click to view the video in full screen. Press the ESC key on the keyboard to return to the previous screen. - Page 47 Part 2 - IDIS Web Apply image filters (Sharpen, Blur, Equalizer, Interpolation, and Revert) to the images. Image calibration is applied only during the paused state. TYPE 1 Use the calendar to search for video recordings by specific dates. Dates containing video recordings are highlighted in light blue. Selecting a date containing video recording data loads the earliest recording from that date.
- Page 48 Part 2 - IDIS Web Right-click on the screen to display the pop-up menu. Click to enable or disable each function. • Fisheye Dewarping: This function is not supported. • Change Camera Title: Used to change the camera's name. Renaming the camera in Web Search mode does not affect the camera's name on the remote system.
-
Page 49: Part 3 - Appendix
Part 3 - Appendix Setup Menu Tree (Remote Setup) Remote Setup Quick Setup System Network Video Audio System General Date/Time User/Group Network IP Address Port/QoS Bandwidth Control Security IEEE 802.1X Video Camera Streaming Webcasting Privacy Masking Audio In/Out Event Action Alarm Out Email Remote Callback... -
Page 50: Index
Part 3 - Appendix Index Quality Bitrate Control Remote Port Resolution RTSP Port Camera Name Compression Date/Time DSCP Time Sync FEN Name Use FEN FEN Server Use HTTPS Frame Rate User/Group Use UPnP IDIS Web port IPFiltering Network Bandwidth Limit ONVIF Protocol V2.1... - Page 51 IDIS Co., Ltd. For more information, please visit at www.idisglobal.com...
