Summary of Contents for Idis DC-D3212RX

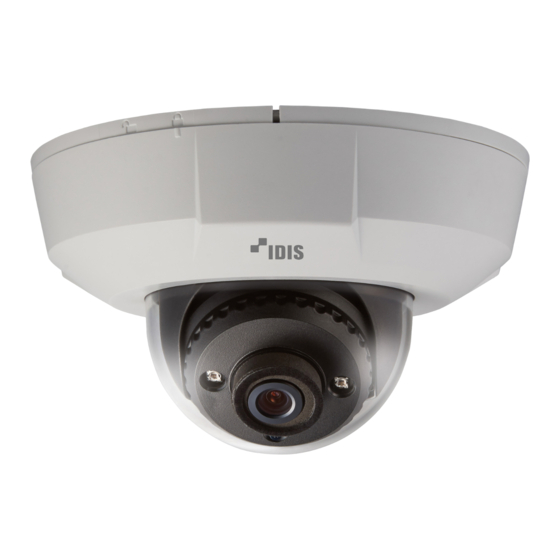

- Page 1 Network Camera Quick Guide DC-D3212RX / DC-D3212X Powered by...
-
Page 2: Safety Precautions
Safety Precautions WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Important Safeguards 1. Read Instructions 10. Overloading Do not overload wall outlets and extension cords as this can result All the safety and operating instructions should be read before the appliance is operated. -
Page 3: Fcc Compliance Statement
IDIS Co., Ltd. reserves all rights concerning this document. Use or duplication of this document in part or whole without the prior consent of IDIS Co., Ltd. is strictly prohibited. Contents of this document are subject to change without prior notice for reasons such as functionality enhancements. - Page 4 • For more details on each part name, refer to the manual. DC-D3212X Dome Cover Side Cable Access Body Lens Video Out Wall/Ceiling IR LED DC-D3212RX Installation Hole Status LED Bottom Cover Factory Reset Button Cable Access Hole SD Memory Card Slot Network Port Quick Guide...
-
Page 5: Camera Installation
Camera Installation Installation Push the SD memory card until it disengages from the slot, and then pull it out. Removing the Dome Cover Use the provided guide pattern to check the Turn the dome cover counterclockwise. distance between the screw holes if necessary. Remove the white paper of the provided insulator and attach it to the wall or ceiling. - Page 6 Use the screws, anchor provided with the camera Closing the Dome Cover to secure the bottom cover on a wall or a ceiling. Attach the dome cover to the bottom cover. Turn the dome cover clockwise to fasten the dome cover. Angle Adjustment Connect external devices, the network cable, and the power adapter.
- Page 7 Operating Temperature -10˚C ~ 50˚C (14˚F ~ 122˚F) Boot Up Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F) Operating Humidity 0% ~ 90% Power Consumption DC-D3212RX Max. 4.5W DC-D3212X Max. 3.4W Approval FCC, CE External Dimensions (Ø x H) 131mm x 79.3mm (5.16" x 3.12")
- Page 8 Memo...
- Page 9 Memo...
- Page 10 Memo...
- Page 11 Memo...
- Page 12 IDIS Co., Ltd. For more information, please visit www.idisglobal.com...
