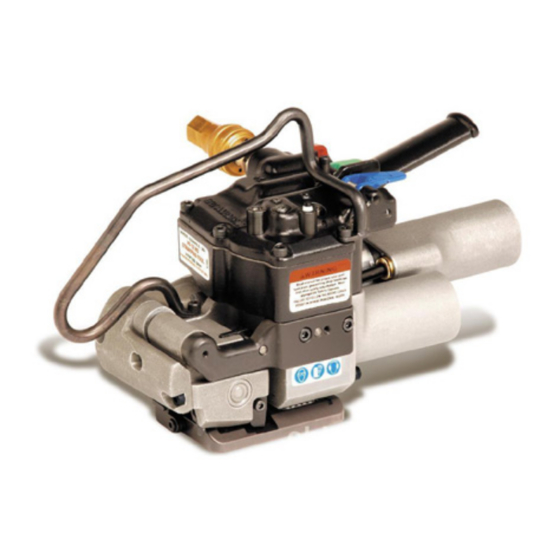

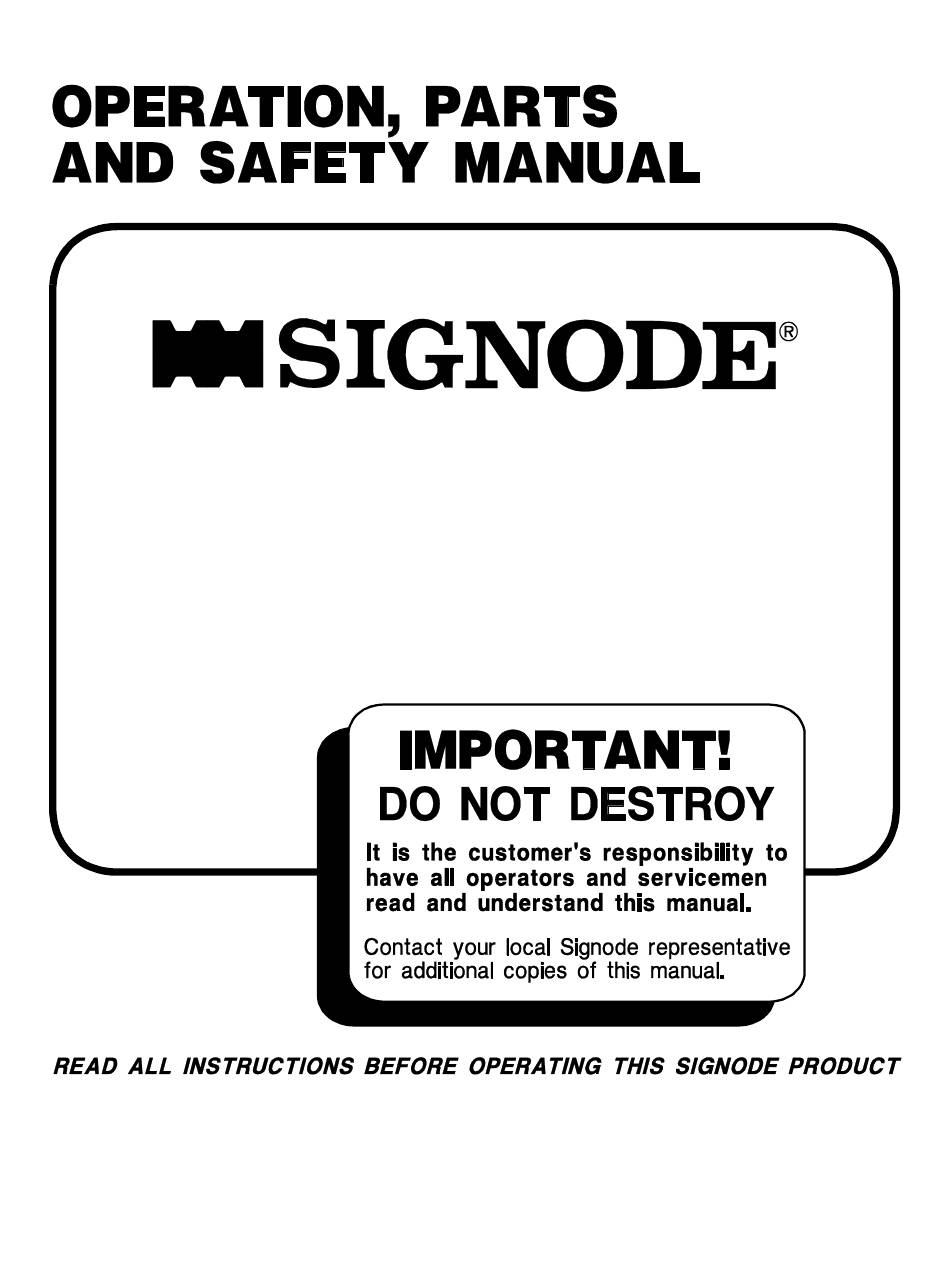

- Page 1 VT-16/19 TENSION-WELD® STRAPPING TOOL...
- Page 2 Use the correct Signode products for your application. 2. TRAINING. This tool must not be used by persons not properly trained in its use. Be certain that you receive proper training from your employer. If you have any questions contact your Signode Representative. 3. EYE INJURY HAZARD.
- Page 3 7. WORK AREA. Keep work areas uncluttered and well lighted. Several types of strap can be used with this tool. Use the correct Signode products for your application. If you need help contact your Signode Representative. SAFETY PROCEDURES FOR TOOL OPERATION Before using this tool, read its Operation and Safety instructions.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Page Page Parts List, Tool General Safety Instructions Parts List, Air Motors Specifications Troubleshooting Major Components Maintenance Pneumatic Information Overhead Suspension Strap Size Conversion Tool Options Operating Instructions Adjustments VT-16 Strapping Tool Part No. 423990 VT-19 Strapping Tool Part No. -
Page 5: Major Components
MAJOR COMPONENTS... -
Page 6: Pneumatic Information
Filter-Regulator-Lubricator Unit, 1/2" NPT (Signode Part No. 424773) FRL Mounting Bracket (Signode Part No. 071982) Air Hose, 1/2" ID, 3/8" Fittings (Signode Part No. - Page 7 The remaining moisture is removed at the water leg in the piping system or in the filter (Part No. 008559). NOTE: Additional information is available in the Signode publication, "Air Supply Manual" (Part No. 186038). If you have any questions, contact your local Signode Representative.
- Page 8 Air pressure is assumed to be 90 psig (6.2 Bar) with recommended size and length of air hose. Volume of air is at room temperature and sea level pressure, or so-called "free air" conditions. For more detailed information about air supply systems refer to Signode manual Part No. 186038.
- Page 9 Use of an air line dryer adjacent to the compressor. b. Use lubricant recommended by Signode. Signode has tested the use of anti-freezes, none work well in air tool; the tool will gum up when anti-freezes are introduced and will not function properly.
- Page 10 VT tool cycles. If pressure readings fall below the minimums, inspect your air supply system as well as the tool for worn and/or broken parts. Contact your Signode representative if you have any questions. AIR LINE PRESSURE MINIMUMS FOR CYCLING TOOL...
-
Page 11: Strap Size Conversion
2. The outer guide (Key 109) must be exchanged with the appropriate guide for the strap size (Signode P/N 423956 for 16mm and P/N 423957 for 19mm). Guides can be identified by the outer surface being marked “16" or “19". Remove the guide’s mounting screw (Key 23) and install the proper guide. -
Page 12: Operating Instructions
OPERATING INSTRUCTIONS Wear safety glasses. Stand to one side of the strap when tensioning. Make sure all bystanders are clear before proceeding. PLEASE NOTE: Do not operate tool without strap, as damage to the tool may occur. 1. With the dispenser placed behind you, bring the strap over the top and around the package, place the straps together and... - Page 13 3. Recheck the strap alignment at the rear of the tool and realign if necessary. Release the tension motor. Press down the Green Tension Control Lever to begin tensioning the strap. When the tension motor stalls, indicating completion of tension, release the control lever. The strap will remain tensioned around the package.
- Page 14 OPERATING INSTRUCTIONS, Continued 5. The internal weld timer is energized. The main piston brings the welding pads together and the strap is welded. The supply end of the strap is then cut off. Pull the cut strap away from the tool during welding.
- Page 15 6. Swing the tool out from the completed strap joint. Inspect the joint to make sure the straps have been properly welded. STRAP JOINT INSPECTION This tool is a Tension Weld® type sealer. A properly made joint will appear as shown in the illustration.
-
Page 16: Adjustments
4. If you are unable to produce an acceptable joint or if you have any questions as to whether your tool is producing good weld strength, contact your Signode Sales Representative. 5. Replace the cap over the screw. LOCATION OF WELD TIME ADJUSTMENT WELD COOLING TIME Cool time has been factory adjusted to allow the proper time for a weld to properly cool. - Page 17 (Key 98) as shown by arrow, in 1/4 increment turns counter-clockwise to increase strap tension and clockwise to reduce strap tension. Use the 4mm hexwrench (Signode Part No. 274467) included with every new tool. NOTE: Operating air pressure must be set between 85 and 90 psi (5.7-6.2 Bar).
- Page 18 TOOL ADJUSTMENTS, Continued STRAP CUTTER The VT strap cutter has two serrated cutting edges. After the first edge has become dull or strap cut-off becomes difficult the blade can be remounted to use the second cutting edge. Once both edges have become worn the blade should be replaced.
-
Page 19: Troubleshooting
TROUBLESHOOTING The following items are the most common types of tool malfunctions. For symptoms or remedies not shown, contact your Signode service representative for additional information and details. The following tool conditions are shown in this manual: AIR SUPPLY #1 - The air motor is frozen. - Page 20 TROUBLESHOOTING, Continued #3 CONDITION: The tool runs sluggishly. CAUSE REMEDY 1. The air filter-regulator-lubricator is 1A. Check the regulator to see that the correct air malfunctioning or is not properly maintained. pressure is getting to the tool. 1B. Check to see the filter unit is clean and functioning properly.
- Page 21 #6 CONDITION: A poor weld identified by an incomplete area of weld. CAUSE REMEDY Welding is achieved by a combination of vibration and Dismantle and clean the weld mechanism by brushing downward pressure of the upper gripper. Either a away the strap residue or washing the entire unit in a restriction of motion or a reduction of downward solvent.
- Page 22 TROUBLESHOOTING, Continued #10 CONDITION: Strap weld time is erratic. CAUSE REMEDY 1. Air leakage in timing circuit. Check o-rings and pneumatic components for leaks. Replace parts as required. 2. Dirty or very dry pilot valve (Key 106). Remove, clean and lubricate the pilot valve using air line oil or replace if needed.
-
Page 23: Maintenance
MAINTENANCE TOOL 1. Clean the teeth on the feedwheel and the gripper plug with the special brush provided. 3. Periodically clean the tool with compressed air. 4. Disassemble, clean and lubricate the welding mechanism. GEAR HOUSING Periodically check the gear housing portion of the tool: 1. -
Page 24: Overhead Suspension
VT can be suspended in various operating positions by using the proper tool hanger and hardware. Review the illustrations below for the appropriate configuration for the tool application. Applications are recommended to use an Overhead Tool Balancer as shown (Signode Part No. 306809). HORIZONTAL SEALING... -
Page 25: Tool Options
TOOL OPTIONS TENSION LATCH KIT This option makes the VT tool easier for the operator to use. The tension control lever only needs to be pressed one time to fully tension a load. This option eliminates the need to hold down the tension control for the entire tension cycle. - Page 26 OPTIONAL WEAR RING An optional wear ring is available to protect the tension motor from harsh operating environments. This wear ring can be used with either the VT-16 or the VT-19 tools. To install the wear ring spread open the ring gap using an appropriate spreading tool. Begin to slip the ring over the end of the tension motor.
- Page 27 It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directive 89/392/EEC Machine Supplier: Signode, Division of ITW Ltd. Queensway, Fforestfach Swansea SA5 4ED Machine Description:...
- Page 28 Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgement such replacement is appropriate. Any new replacement tool provided to an owner will carry a full sixty (60) day warranty. Any warranty repaired tool or like-new replacement tool will carry a warranty for the balance of the time remaining on the initial sixty (60) day warranty.
