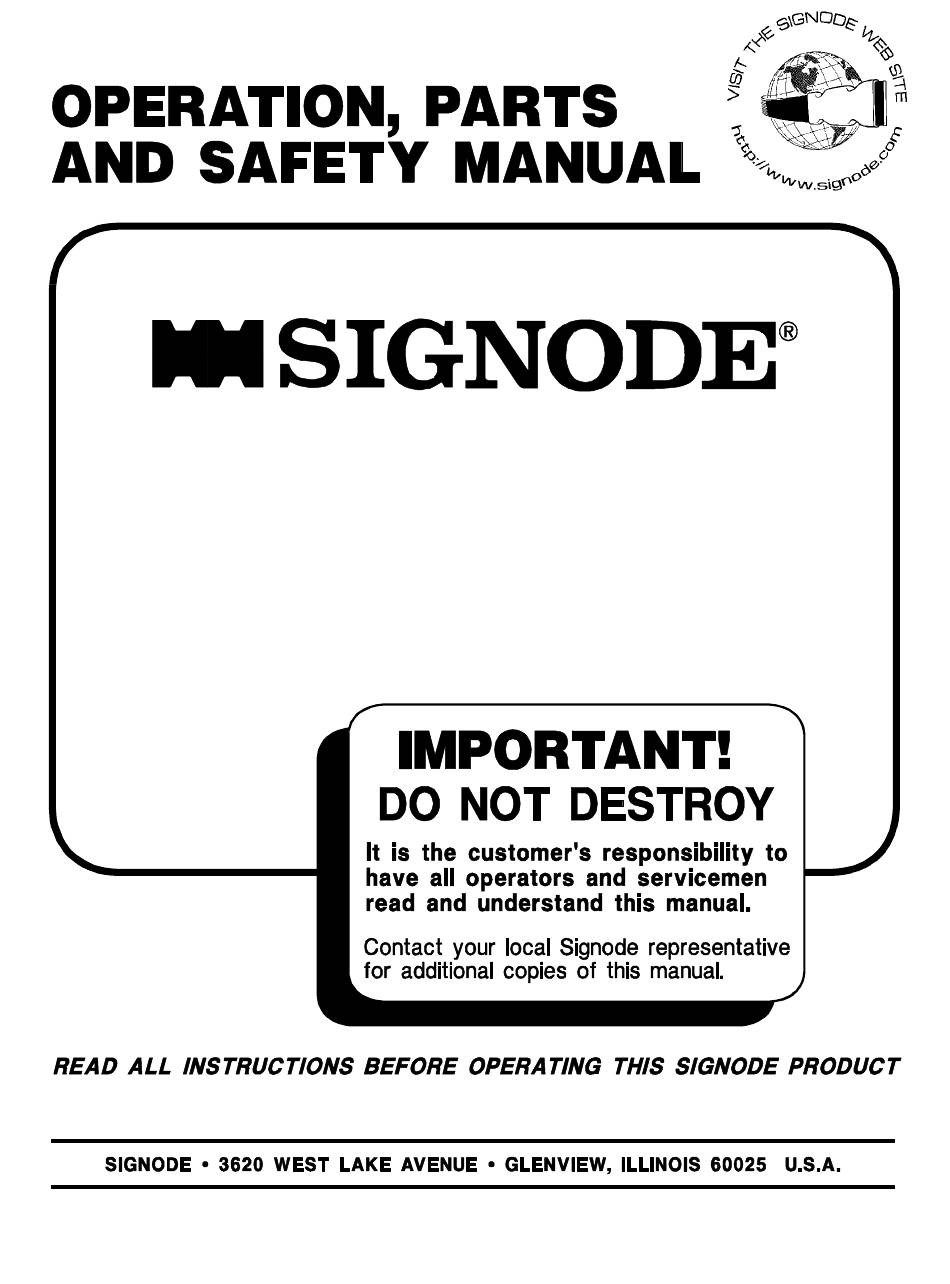

- Page 1 BTS-16/19/25/32 TENSION-WELD® STRAPPING TOOL NOTE: Fully charge battery before first use of tool.
-
Page 2: General Safety Considerations
Replace any worn or broken parts. WORK AREA Keep work areas uncluttered and well lighted. Several types of strap can be used with this tool. Use the correct Signode products for your application. If you need help contact your Signode Representative. CUTTING TENSIONED STRAP Use only cutters designed for cutting strap;... - Page 3 SAFETY PROCEDURES FOR ELECTRIC TOOLS GUARD AGAINST ELECTRIC SHOCK CONSIDER WORK AREA ENVIRONMENT ! ! ! ! Try not to operate tool in damp or wet locations. ! ! ! ! Prevent body contact with grounded surfaces, such as pipes, radiators, ranges, refrigerator enclosures.
-
Page 4: Specifications
Operating Instructions SPECIFICATIONS MODEL MODEL STRAP RECOMMENDED (110 Volt) (220 Volt) TENSIONER TYPE WIDTH THICKNESS BTS-16 BTS-16 16mm 0.030" to 0.044" Signode PT-16 (426500) (429516) (.629") (0.76-1.11mm) BTS-19 BTS-19 19mm 0.045" to 0.055" Signode PT-19 (426501) (429519) (.748") (1.14-1.40mm) High Strength... -
Page 5: Major Components
MAJOR COMPONENTS BATTERY INFORMATION Before attempting to us this tool make sure the batteries are properly charged. A discharged battery may result in a poor weld or no weld condition. The battery pack accepts only about 80% of its maximum capacity with its first few charge cycles. - Page 6 BATTERY INFORMATION, Continued INDICATORS, SYMBOLS AND MEANING If the indicator lights are "OFF", the charger is not receiving power from power supply outlet. If the green indicator light is "ON", the charger is plugged in but the battery pack is not inserted, o the battery pack is fully charged and is being trickle charged If the green indicator light is "BLINKING", the battery pack is being fast-charged.
- Page 7 Make sure all bystanders are clear before proceeding. PLEASE NOTE: Do not operate tool without strap, as damage to the tool may occur. 1. Using a Signode PT manual strap tensioner tool, encircle the package with strap and tension the strap as required.
- Page 8 OPERATING INSTRUCTIONS, Continued 4. Push the BTS tool all the forward so that the straps are fully seated into the base of the tool as shown. 5. Release the operator handle to secure the strap in the tool. Press the weld button on the top of the tool.
- Page 9 4. If you are unable to produce an acceptable joint or if you have any questions as to whether your tool is producing good weld strength, contact your Signode Sales Representative.
-
Page 10: Parts List
PARTS LIST Key Qty Part No. Description Key Qty Part No. Description 427082 Lee Spring LC-020B-8M 426583 Frame (16/19/25) 427083 Lee Spring LC-035C-15M 427139 Frame (32) 427086 O-Ring SAE -157 426586 Frame Cover 426580 Gates Belt 426508 Vibrator Arm 162383 M4 X 8 SHCS 426577 Weld Gripper (16/19/25) -
Page 12: Troubleshooting
TROUBLE SHOOTING The following items are the most common types of tool malfunctions. For symptoms or remedies not shown, contact your Signode service representative for additional information and details. The following tool conditions are shown in this manual: #1 - A poor weld identified by an incomplete area of weld. -
Page 13: Tool Maintenance
TOOL MAINTENANCE GENERAL Clean the teeth on the upper welding gripper and welding base with the special brush provided. Periodically clean the tool with compressed air. Disassemble, clean and lubricate the welding and cutting mechanisms. CUTTER INSERT SERVICE The cutter insert of the BTS has two serrated cutting edges. Over time the cutter blade insert may become worn. - Page 15 It is hereby declared that the undermentioned machinery has been designed and constructed to comply with the health and safety requirements defined in EC Directive 89/392/EEC Machine Supplier: Signode, Division of ITW Ltd. Queensway, Fforestfach Swansea SA5 4ED Machine Description:...
- Page 16 Glenview, Illinois plant, any tool which proves to not operate per functional specifications within the stated period. Signode reserves the right to replace any tool which proves not to operate per functional specifications with a new or like-new tool of the same model if in Signode's judgment such replacement is appropriate.
