2 in 1
Air velocity/Temp., Air flow

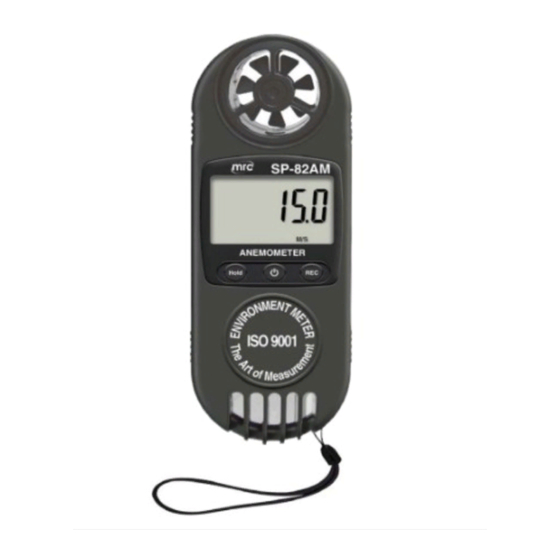

ANEMOMETER
Model : SP-82AM ( Sper version )
PLEASE READ THIS MANUAL CAREFULLY BEFORE OPERATION
3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529
Your purchase of this
ANEMOMETER marks a
step forward for you
into
precision measurement.
Although this METER is
a complex and delicate
instrument, its durable
structure
many years of use if
p r o p e r
t e c h n i q u e s
developed. Please read
t h e
instructions
and always keep this
manual
reach.
MRC.5.17
the
field
of
will
allow
o p e r a t i n g
a r e
f o l l o w i n g
carefully
within
easy
mrc@mrclab.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MRC SP-82AM
Summary of Contents for MRC SP-82AM

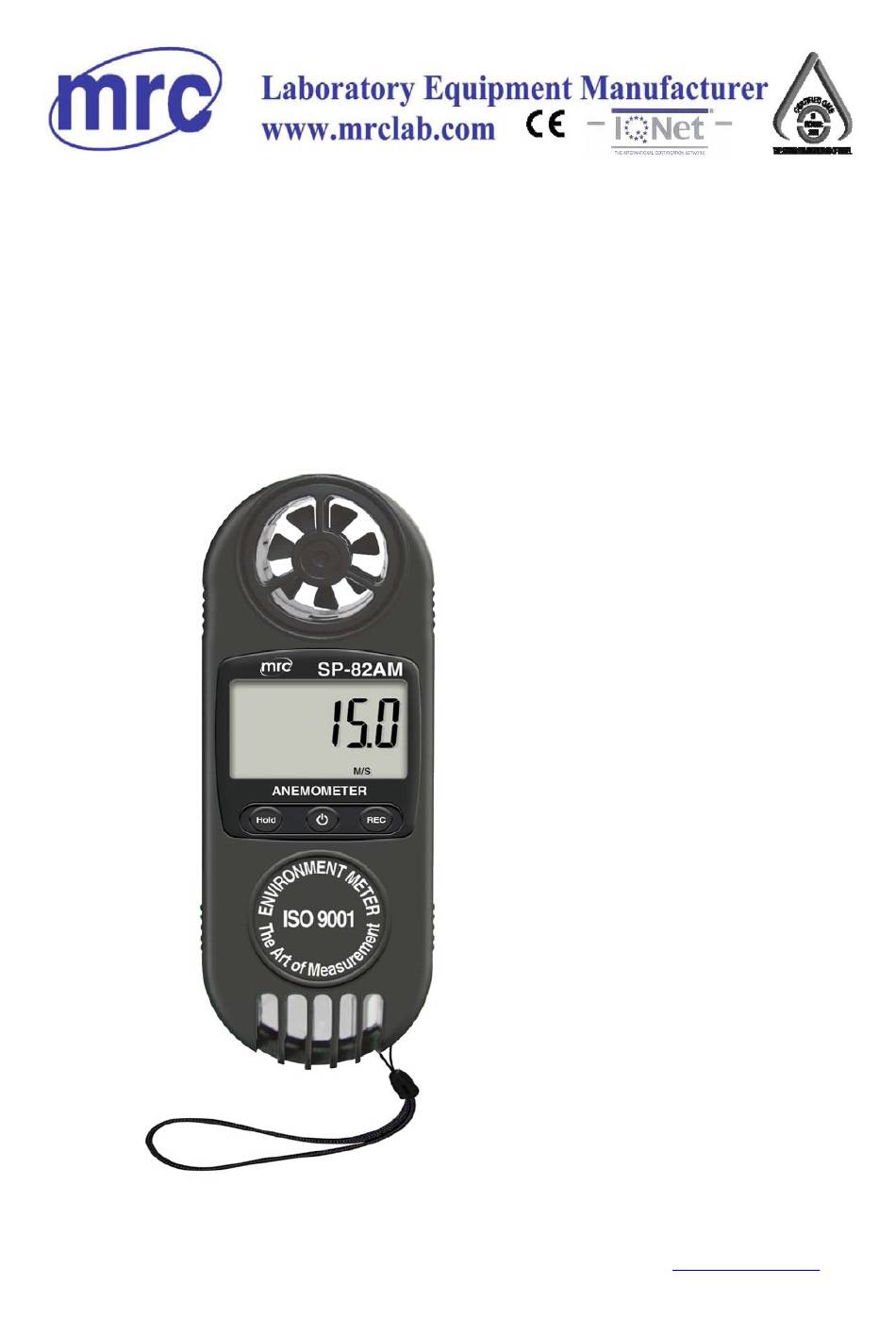

- Page 1 2 in 1 Air velocity/Temp., Air flow ANEMOMETER Model : SP-82AM ( Sper version ) Your purchase of this ANEMOMETER marks a step forward for you into field precision measurement. Although this METER is a complex and delicate instrument, its durable...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............1 3. FRONT PANEL DESCRIPTION........3 3-1 Hold button............3 button ( Power button )........3 3-3 REC button............3 3-4 LCD display............3 3-5 Wristlet..............3 3-6 Anemometer Vane..........3 3-7 Battery Compartment / Cover.........3 3-8 Buttons operation label..........3 4. -
Page 3: Features
1. FEATURES * 2 in 1 professional environment instruments: 1. Air velocty, 2. Air flow ( CMM, CFM ). * Tiny bone shape with lightweight and small size case design are suitable for handling with one hand. * Wristlet design provides extra protection to the instrument especially for user one hand operation. - Page 4 Weight 160g (battery included) Dimension HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch). Standard Instruction Manual Accessory 2-2 Electrical Specification ( 23 ± 5 ℃ Air velocity Unit Range Resolution Accuracy ft/min 80 to 3937 ft/min 1 ft/min 0.4 to 20.0 m/s 0.1 m/s...
-
Page 5: Front Panel Description
3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Hold button Button ( Power button ) 3-3 REC nutton 3-4 LCD display 3-5 Wristlet 3-6 Anemometer Vane 3-7 Battery Compartment / Cover 3-8 Buttons operation label... -
Page 6: Measuring Procedures
4. MEASURING PROCEDURE 4-1 Power on/off Button = Power Button Power on : Press " Power Button " once. Power off : During power on, press " Power Button " > 3 seconds. will power off. 4-2 LCD backlight on/off During power on, press "... -
Page 7: Unit Selection
4-4 Unit selection During power on, press the " REC button " continuously > 3 seconds, the Display will show the text " Unit " release the " REC button ", then press " button " to select the desired unit, after the desired unit is sleeted, press the "... -
Page 8: Hold Function
3)Use the " Hold button " and the " button " adjust the air flow dimension value. Until the desired dimension value is set, press " REC button " to save the setting value with default. button = button ▲ Hold button = button ▼... -
Page 9: Auto Power Off Disable
4-8 Auto power off disable In order to prolong the battery life, the instrument has "Auto Power Off " function. The meter will switch off automatically if no buttons are pressed for around 10 minutes. However if intend disable the " Auto power off " function, just execute the "...
