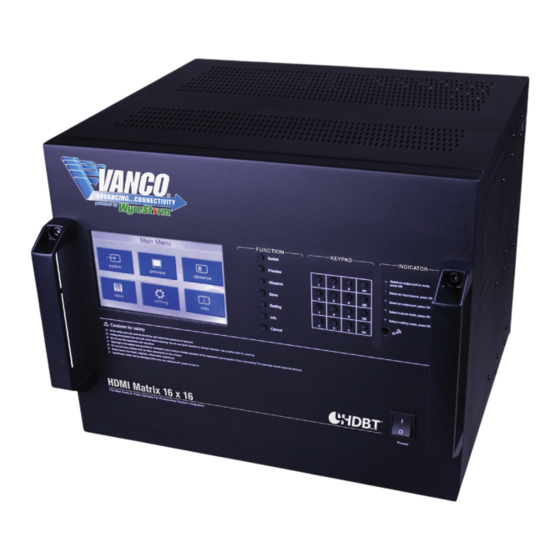

Vanco VPW-280799 Product Manual

Matrix selector switch over utp cable
Hide thumbs

Advertisement

Quick Links

Download this manual
HDMI®
MATRIX
S E L E C TO R S W I TC H O V E R U T P C A B L E
PRODUCT MANUAL
Vanco Part Number
280799
VPW-
Technical Support
888.769.4156
www.vanco1.com • info@vanco1.com •

Advertisement

loading
Need help?

Need help?

Do you have a question about the VPW-280799 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vanco VPW-280799

Summary of Contents for Vanco VPW-280799

  • Page 1 HDMI® MATRIX S E L E C TO R S W I TC H O V E R U T P C A B L E PRODUCT MANUAL Vanco Part Number 280799 VPW- Technical Support 888.769.4156 www.vanco1.com • info@vanco1.com •...
  • Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. This product is 100% inspected and tested in the United States to verify HDMI performance parameters.
  • Page 3 The HD Base T technology utilized allows the HDMI signal to travel over a single Cat 5e or Cat 6 UTP cable from the Matrix to the Receiver (Vanco Part # VPW-280791). The transmission distance over a UTP cable can achieve a distance of up to up to 100 meters (328 ft) with a video format of 1080p and 36/48 bit deep color, together with the infrared control signal.

  • Page 4: Package Contents

    PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton: • Matrix Unit • 1 RS-232 to RS-485 convertor • Product Manual • 1 IR RX (IR receiver cable) • Handles • 16 IR TX (IR emitter cable) • Mounting ears...

  • Page 5: Connect And Operate

    BACK PANEL 10. RS-232 port to operate work with the Receiver 1. ISP port 11. Status of Link: when the UTP cable is connected, the LED inside lights 2. LAN port 12. UTP OUT, connects to the Receiver’s UTP IN 3.
  • Page 6 OPERATION ON THE TOUCH PANEL MAIN MENU SWITCH MENU TYPE A: Step A.1: Select an output port or ‘A’, and press “OK”, Step A.2: Select an input source, and press “OK”. TYPE B: Step B.1: Select a model, and press “OK”. NOTE: ‘C’...
  • Page 7 OBSERVE MENU Step: Select an Output port and press OK SERVE MENU Step: Select a Save model and press OK SETTING MENU - There are 5 Sub Menus here: EDID/LC/IR/EQ/RST 888.769.4156...
  • Page 8 1. EDID menu There are 6 modes provided. When selecting a different mode and pressing “OK”, the following warning box will pop up: The mode selected will be effective after next power-on. EDID Mode Details: INDEX EDID MODE DETAILS REMARKS Full Copy Copy HDMI output’s edid to Note 1...
  • Page 9 2. LC menu There are 4 modes in the LC menu. INDEX LONG CABLE MODE DETAILS H-OFF, UTP-ON Hdmi LC mode off; UTP LC mode on.(Default) H-OFF, UTP-OFF Hdmi LC mode off; UTP LC mode off H-ON, UTP-ON Hdmi LC mode on; UTP LC mode on H-ON, UTP-OFF Hdmi LC mode on;...
  • Page 10 3. IR menu IR call- back from remote locations to control the HDMI Matrix Switch. You can use the Matrix’s remote through the IR RX of the UTP receiver to change the input channel for the UTP out of the Matrix, just by changing this UTP output. This function can be set on or off: INDEX IR CALL BACK...
  • Page 11 INDEX SETTING DETAILS INDEX SETTING DETAILS INDEX SETTING DETAILS INDEX SETTING DETAILS 0db/0db 16db/0db 23db/0db 26db/0db 0db/-3db 16db/-3db 23db/-3db 26db/-3db 0db/-6db 16db/-6db 23db/-6db 26db/-6db 0db/-9db (default) 12 16db/-9db 23db/-9db 26db/-9db 10db/0db 19db/0db 25db/0db 27db/0db 10db/-3db 19db/-3db 25db/-3db 27db/-3db 10db/-6db 19db/-6db 25db/-6db 27db/-6db 10db/-9db...
  • Page 12 OPERATION ON PANEL BUTTONS “FUNCTION” area: Select the operation function “KEYPAD” area: Auxiliary to complete the function “INDICATOR” area: Simple Tips for steps 1. Switch Function TYPE A: Step A.1: Press “Switch”, Step A.2: Select an output port or ‘A’, and press “OK”, Step A.3: Select an input source, and press “OK”.
  • Page 13 2. Operation via IR remote. IR Local or IR extender: Step1: select an output port; Step2: select an input port or ‘<<’/’>>’ (down/up) NOTE: The time between the two steps must be less than 4 seconds. IR callback: Step: select an input port or ‘<<’/’>>’ (down/up) NOTE: Can only control the corresponding UTP port.

  • Page 14: Specifications

    SPECIFICATIONS Operating Temperature Range ........5 to +35oC (41 to +95oF) Operating Humidity Range .......... 5 to 90 % RH (no condensation) Video Amplifier Bandwidth .......... 2.25Gbps Input Video Signal ............0.5-1.0 volts p-p Input DDC Signal ............5 volts p-p (TTL) Maximum Single Link Range ........
  • Page 15 HDBaseT™ Receiver - Part Number 280791 The Vanco 280791 HDMI Receiver uses HD Base T technology to transport a HDMI signal from the Vanco 280799 HDMI 16x16 Matrix Switch and from the Vanco 280759 HDMI 8x8 Matrix Switch. This allows the HDMI signal to be transported a maximum distance of 100 meters (328 ft) while using a single Cat-5e or Cat 6 UTP cable as the transmission media.
  • Page 16 CONNECT AND OPERATE 1. The 280791 Receiver works in conjunction with a HDMI Extender Transmitter or Matrix Switch employing HD Base T technology. 2. Connect a single Cat 5e or Cat 6 cable assembly from the UTP output of a Extender Transmitter or Matrix switch to the UTP input of the 280791 Receiver.
  • Page 17 7. A second stage of verifying the content of the EEPROM follows, also with a progress percentage report NOTE: For RS-232 control signal transmission, just connect two RS-232 cables to both RS-232 ports of Extender Transmitter or Matrix Switch and the Receiver, they work like an RS-232 extension cable. SPECIFICATIONS Operating Temperature Range ........
  • Page 18 IR HEX CODES - 280799 Output1 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0016 05d5 Output2...
  • Page 19 Output7 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0016 05d5 Output8...
  • Page 20 Output13 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0016 05d5 Output14...
  • Page 21 Input1 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0016 05d5 Input2...
  • Page 22 Input7 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0016 05d5 Input8...
  • Page 23 Input13 0000 006f 0000 0022 0151 00a7 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 0015 0015 0015 0015 0015 0015 003f 0015 0015 0015 003f 0015 0015 0015 003f 0015 003f 0015 003f 0015 003f 0016 05d5 Input14...
  • Page 24 RS-232 transmission format: Baud Rate : 9600 bps ; Data Bit : 8 bits; Parity : None; Stop Bit : 1 bit Command OUTPUT COMMAND (Hex) ACTION Output 1 80 80 F5 0A Output 1 select Input1 81 80 F5 0A Output 1 select Input2 82 80 F5 0A Output 1 select Input3...
  • Page 25 80 CA BF 0A Output 3 select Input11 80 CB BE 0A Output 3 select Input12 80 CC B9 0A Output 3 select Input13 80 CD B8 0A Output 3 select Input14 80 CE BB 0A Output 3 select Input15 80 CF BA 0A Output 3 select Input16 Output 4...
  • Page 26 Output 7 81 A8 DC 0A Output 6 select Input9 81 A9 DD 0A Output 6 select Input10 81 AA DE 0A Output 6 select Input11 81 AB DF 0A Output 6 select Input12 81 AC D8 0A Output 6 select Input13 81 AD D9 0A Output 6 select Input14 81 AE DA 0A...
  • Page 27 82 86 F1 0A Output 9 select Input7 82 87 F0 0A Output 9 select Input8 82 88 FF 0A Output 9 select Input9 82 89 FE 0A Output 9 select Input10 82 8A FD 0A Output 9 select Input11 82 8B FC 0A Output 9 select Input12 82 8C FB 0A...
  • Page 28 82 E4 93 0A Output 12 select Input5 82 E5 92 0A Output 12 select Input6 82 E6 91 0A Output 12 select Input7 82 E7 90 0A Output 12 select Input8 82 E8 9F 0A Output 12 select Input9 82 E9 9E 0A Output 12 select Input10 82 EA 9D 0A...
  • Page 29 Output 15 83 C0 B6 0A Output 15 select Input1 83 C1 B7 0A Output 15 select Input2 83 C2 B4 0A Output 15 select Input3 83 C3 B5 0A Output 15 select Input4 83 C4 B2 0A Output 15 select Input5 83 C5 B3 0A Output 15 select Input6 83 C6 B0 0A...

  • Page 30: Troubleshooting

    TROUBLE-SHOOTING 1. Best results are usually achieved when the source and display resolutions are the same. If resolutions differ, the splitters will try to adjust the signal to match the resolution of the HD TV with the lowest resolution. This will result in a picture with a lower resolution on the other HD TV sets. 2.

  • Page 31: Limited Warranty

    Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended.
  • Page 32 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 888.769.4156 fax: 630.879.9189 visit: www.vanco1.com...
