USER GUIDE

FACTORY INSTALLED DRAIN PUMP

If your drain line will run up to a stand pipe, disposal
or spigot assembly, or does not otherwise meet the
requirements for a gravity drain, you may have ordered a
pre-installed U-Line P60 drain pump.
If you need to install a P60 drain pump into your unit, see
DRAIN PUMP section in the User Manual.

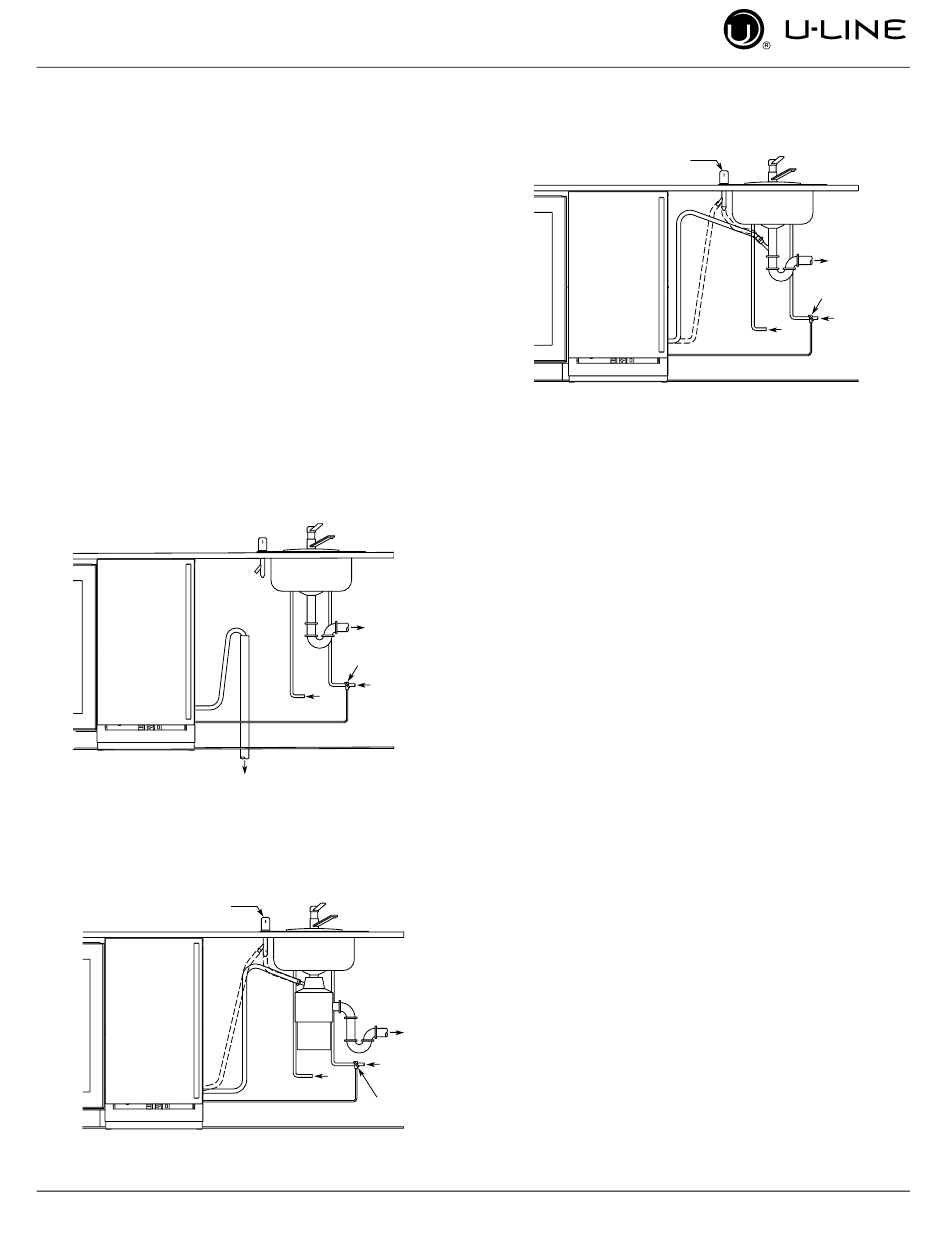

See below for typical installations requiring a drain pump.
Stand Pipe
P60 Pump Required
Disposal Assembly
P60 Pump Required
Air Gap
(Optional Hook-Up)
Drain
Waste
Shut-Off
Valve
Cold
Water
Hot
Water
Waste
Waste
Cold
Hot Water
Water
Shut-Off
Valve
Y-Branch Tailpiece
P60 Pump Required
Air Gap
(Optional Hook-Up)
NOTICE
The maximum lift for the P60 drain pump is
10 feet. This must be done as close to the rear of
the unit as possible.
13
u-line.com
Waste
Shut-Off
Valve
Cold
Hot Water
Water
