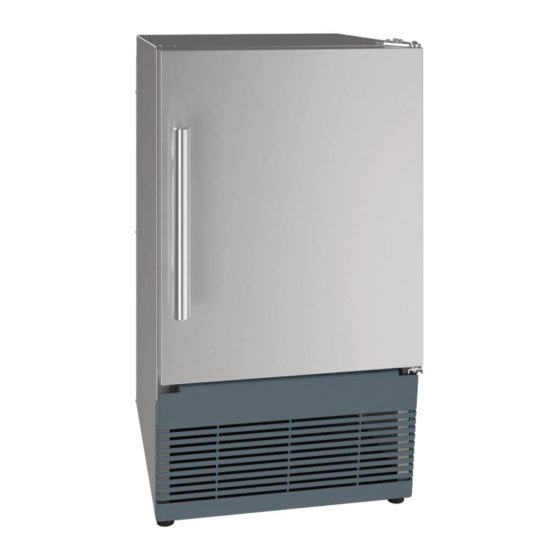

- Page 1 USER GUIDE & SERVICE MANUAL UACR015 15” Crescent Ice Maker ● ●...
-
Page 2: Table Of Contents
USER GUIDE & SERVICE MANUAL u-line.com Table of Contents Intro Parts Ordering Replacement Parts Safety System Diagnosis Guide Safety and Warning Compressor Specifications Disposal And Recycling Troubleshooting Extended Defrost Installation Warranty Environmental Requirements Electrical Cutout & Product Dimensions Water Hookup... - Page 3 ® to preserve the right product, in the right place, at the right temperature. Since 2014, U-Line has been part of the Middleby family of brands. All products are designed, engineered, and assembled in Milwaukee, Wisconsin, USA, and select products are available worldwide.
-
Page 4: Safety And Warning
USER GUIDE u-line.com Safety and Warning DANGER NOTICE This unit contains R600a (Isobutane) which is a Please read all instructions before installing, flammable hydrocarbon. It is safe for regular operating, or servicing the appliance. use. Do not use sharp objects to expedite defrosting. -
Page 5: Disposal And Recycling
USER GUIDE u-line.com Disposal and Recycling DANGER RISK OF CHILD ENTRAPMENT. Before you throw away your old refrigerator or freezer, take off the doors and leave shelves in place so children may not easily climb inside. If the unit is being removed from service for disposal,... -
Page 6: Environmental Requirements
USER GUIDE u-line.com Environmental Requirements This model is intended for indoor/interior applications only and is not to be used in installations that are open/ exposed to natural elements. This unit is designed to operate between 50°F (10°C) and 100°F (38°C). Higher ambient temperatures may reduce the unit’s ability to reach low temperatures and/or reduce... - Page 7 USER GUIDE u-line.com Electrical WARNING SHOCK HAZARD — Electrical Grounding Required. Never attempt to repair or perform maintenance on the unit until the electricity has been disconnected. Never remove the round grounding prong from the plug and never use a two-prong grounding adapter.
-
Page 8: Cutout & Product Dimensions
Cutout & Product Dimensions 14 ⁄ ” (376 mm) PREPARE SITE Your U-Line product has been designed for either free- standing or built-in installation. When built-in, your unit 27 ¼” 10” does not require additional air space for top, sides, or... -
Page 9: Water Hookup
The water valve uses a standard 1/4" (6.35 mm) is under pressure at all times. Plastic may crack compression fitting. U-Line recommends using accessory or rupture with age and cause damage to your water hook up kit – part # ULAWATERHOOKUP. The kit home. - Page 10 USER GUIDE u-line.com 3. Locate water valve inlet. 9. Install retaining clip. 4. Break away filler feature in bushing with flat screwdriver. Remove screwdriver 5. Thread water line through back panel hole (with bushing). 6. Locate water valve inlet and connect to valve.
-
Page 11: General Installation
USER GUIDE u-line.com General Installation LEVELING INFORMATION NOTICE Because these units do not have leveling legs, it is extremely important that they sit on a level surface. If they are not level, the ice mold will not fill evenly. Use a level to confirm the unit is level. -
Page 12: Grille Installation
USER GUIDE u-line.com Grille Installation REMOVING AND INSTALLING GRILLE WARNING Disconnect electric power to the unit before removing the grille. When using the unit, the grille must be installed. WARNING DO NOT touch the condenser fins. The condenser fins are SHARP and can be easily damaged. -
Page 13: Door Swing
USER GUIDE 16-1/2" 16-1/2" u-line.com 90° 90° Door Swing Door Swing Door Swing Black, White and Wood Overlay Stainless Steel 2175R(F) & 2275WC Models Wall Wall 1/4" Min. 2-1/8" Min. (6 mm) (54 mm) 90° 90° Door Swing Door Swing... -
Page 14: Door Adjust
USER GUIDE u-line.com Door Adjustments TO REVERSE THE DOOR Remove top hinge and door: DOOR ALIGNMENT AND ADJUSTMENT Hold door to keep it from falling. Align and adjust the door if it is not level or is not sealing properly. If the door is not sealed, the unit may not cool Remove top hinge from cabinet using a Torx T-25 properly, or excessive frost may form in the interior. - Page 15 USER GUIDE u-line.com Remove corresponding screws on opposite side of cabinet. Install bottom hinge on opposite side. Install top hinge: Top Hinge Right Side Top Hinge Left Side Pivot Screw Remove pivot screw from hinge, flip hinge over, and install the pivot screw in the same hole from the opposite surface.
- Page 16 First Use Initial startup requires no adjustments. NOTICE U-Line recommends discarding the ice produced during the first two to three hours of operation to avoid possible dirt or scale that may dislodge from the water line. To turn the unit on or off: Press the rocker switch located inside the door on the front panel, or behind the grille.
- Page 17 USER GUIDE u-line.com CAUTION ICE MAKER OPERATION NEVER use an ice pick, knife or other sharp When the ice bucket is full, the ice making mechanism will instrument to separate cubes. Shake the ice shut off. However, the refrigeration system will continue bucket instead.
- Page 18 USER GUIDE u-line.com ICE MAKER ADJUSTMENT 3. Turn the adjusting screw toward the minus (-) sign (clockwise) for smaller cubes or toward the plus (+) Ice Cube Thickness Adjustment sign (counterclockwise) for larger cubes. Interval - As Required 4. Install the ice maker assembly cover.
- Page 19 USER GUIDE u-line.com Airflow and Product Loading NOTICE The unit requires proper airflow to perform at its highest efficiency. Do not block the front grille at any time, or the unit will not perform as expected. Do not install the unit behind a door.
-
Page 20: Cleaning
USER GUIDE u-line.com Cleaning If any surface discoloring or rusting appears, clean it ® ® quickly with Bon-Ami or Barkeepers Friend Cleanser EXTERIOR CLEANING and a nonabrasive cloth. Always clean with the grain. ® Always finish with Claire Stainless Steel Polish and... - Page 21 USER GUIDE u-line.com DEFROSTING NOTICE Manual Defrost Models DO NOT clean ice bucket using a dishwasher. The This unit is a manual defrost model and will require bucket is not dishwasher safe and will be damaged. occasional defrosting. When there is build-up of 1/4"...
-
Page 22: Cleaning Condenser
USER GUIDE u-line.com Cleaning Condenser INTERVAL - EVERY SIX MONTHS To maintain operational efficiency, keep the front grille free of dust and lint, and clean the condenser when necessary. Depending on environmental conditions, more or less frequent cleaning may be necessary. -
Page 23: Extended Non-Use
If the unit will be exposed to temperatures of 40°F (5°C) or less, the steps above must be followed. For questions regarding winterization, please call U-Line at 414.354.0300. CAUTION Damage caused by freezing temperatures is not covered by the warranty. -
Page 24: Troubleshooting
• Evaporator: Refrigerant flowing through an evaporator may sound like boiling liquid. BEFORE CALLING FOR SERVICE If you think your U-Line product is malfunctioning, read • Condenser Fan: Air moving through a condenser may the CONTROL OPERATION section to clearly understand be heard. - Page 25 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Causes which affect the internal temperatures of Problem Possible Cause and Remedy the cabinet include: Product is Not Air temperature does not indicate product • Temperature setting.
-
Page 26: Wire Diagram
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Wire Diagram Wire Diagram 1... -
Page 27: Product Liability
The part that caused the damage must be returned to U-Line in its entirety. The part must be clearly labeled with the serial number of the unit it was removed from, the date, and the servicer who removed the part. -
Page 28: Warranty Claims
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Warranty Claims warranty status. We also accept the following information to verify warranty status: The following information defines the parameters for filing a warranty claim: •... -
Page 29: Parts
Parts U-BI98B-00A Item Description U-Line P/N Back panel 80-54598-00 Compression nut/sleeve 80-54355-00 Compressor electricals only 80-54377-00 Compressor w/electricals 80-54376-00 Condenser assembly 80-54601-00 Condenser fan 80-54378-00 Condenser fan blade 80-54379-00 Control assembly 80-54590-00 Door assembly w/out hinges 80-54593-00 10 Drier 80-54055-00... -
Page 30: Ordering Replacement Parts
Warranty parts will be shipped at no charge after U-Line confirms warranty status. Please provide the model, serial number, part number and part description. Some parts will require color or voltage information. -
Page 31: System Diagnosis Guide
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE System Diagnosis Guide REFRIGERATION SYSTEM DIAGNOSIS GUIDE System Suction Suction Compressor Condenser Capillary Evaporator Wattage Condition Pressure Line Discharge Tube Normal Normal Slightly below Very hot... -
Page 32: Compressor Specifications
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Compressor Specifications DANGER OVERLOAD PROTECTOR Electrocution can cause death or serious injury. Burns from hot or cold surfaces can cause serious injury. Take precautions when servicing this unit. -
Page 33: Troubleshooting Extended
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Troubleshooting - Extended SPECIFIC ERRORS & ISSUES CAUTION Never attempt to repair or perform maintenance on the unit until the main electrical power has been disconnected from the unit. - Page 34 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Concern Potential Causes Suggested Remedy Power cord not plugged in. Plug in power cord. Not freezing (compressor On/Off switch in off position. Turn switch to on position.
- Page 35 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE ICE MAKER DIAGNOSIS FLOW CHART DOES THE UNIT REFRIGERATE? Sealed System Leak Low Voltage Electrical Failure Voltage Drop Compressor Failure Wiring Fan Motor Failure Defrost System Failure...
- Page 36 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE ICE MAKER OPERATING CYCLES Freeze Cycle • Temperature control terminals 2 and 3 are closed. • Power to the condenser. • Power to the condenser fan.
- Page 37 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Harvest-1 Cycle • Temperature control terminals 2 and 3 are open - 2 and 1 close. • No power to the compressor or condenser fan.
- Page 38 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE HARVEST-2 CYCLE • Ice maker ejector blades reach approximately 2:00 position and cam depresses the hold switch. Power goes through the hold switch to the ice maker motor and mold heater.
- Page 39 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE WATER FILL CYCLE • Ice maker ejector blades reach approximately 10:00 position and cam depresses the water fill switch. • Power to the water valve. Ice maker mold fills.
- Page 40 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE TEMPERATURE CONTROL SPECIFICATIONS Double Throw Ice Maker Thermostat Numbers 4548, AR-19-12, 2636, 2690, 2691, 2717, 2783, 2782-S, 2763-S, 2780, 80-26005-02 These temperature controls are double throw, single pole controls.
- Page 41 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE LIMIT SWITCH SPECIFICATIONS • Normally closed Bi-metal switch • Open temperature: 104°F • Close temperature: 83°F The function of this switch is to open in the event of an overheating condition.
- Page 42 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE REPLACING ICE MAKER ASSEMBLY (CO29F 8. Remove ice maker assembly. ONLY) 1. Unplug the unit from the main power source. 9. Place new ice maker assembly into position and secure with three screws (5).
- Page 43 USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE REPLACING ICE MAKER ASSEMBLY (ALL MODELS 17.Mount the back panel. EXCEPT CO29F) 1. Remove back panel. 18.Plug in unit and test. 2. Disconnect all wires at bell connectors (5 wires-Models 220 Volt Conversion List BI95, BI98 or SP18;...
-
Page 44: Defrost
USER GUIDE u-line.com SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE Defrost These units are manual defrost. To defrost unit remove ice bucket. Turn unit off. Use toweling inside to absorb water as it melts down. This will help prevent water from getting onto customer’s floor. - Page 45 For products installed and used for normal residential use, material cosmetic defects are included in this warranty, with coverage limited to 60 days from the date of original purchase. All service provided by U-Line under the above warranty must be performed by a U-Line factory authorized servicer, unless otherwise specified by U-Line.
