Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

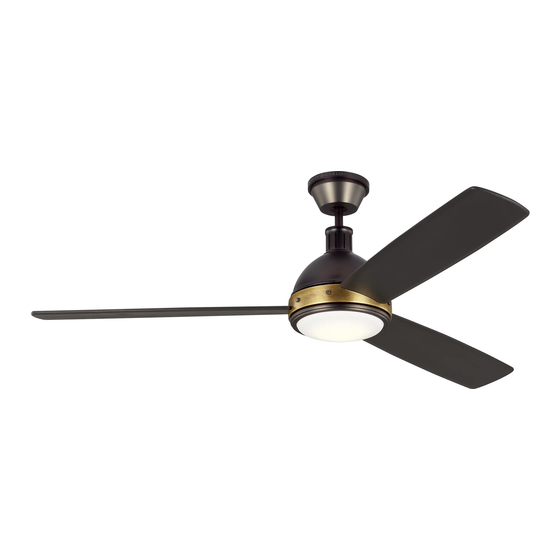

3HCKR60XXXD Series Fan
cETL Model NO. : 3HCKR60XXD
RETAILER NAME:
RETAILER ADDRESS:
8.7 kg
19.14 lbs
Total fan weight with light
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company Hicks 3HCKR60 D Series
Summary of Contents for Monte Carlo Fan Company Hicks 3HCKR60 D Series
- Page 1 Owner’s Guide and Installation Manual 3HCKR60XXXD Series Fan cETL Model NO. : 3HCKR60XXD Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 8.7 kg 19.14 lbs Total fan weight with light...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70) including fire-rated construction. - Page 3 Mounting bracket Canopy Decorative ring Before you begin installing the fan, Switch Before installing this fan make sure the Remove decorative ring from canopy by turning counterclockwise. power off at Service panel and lock outlet box is properly installed to the service disconnecting means to prevent house structure.
- Page 4 SAFETY CABLE INSTALLATION Cross pin Lag screw Keeper pin Safety cable Slot Washer Lock washer Slip downrod into motor housing yoke, Install ball end of downrod into mounting For Canadian installation and for USA fan aligning holes and install cross pin and bracket opening.
- Page 5 Plate on motor Decorative ring Groove Blade Light pan Blade supporting plate Raise canopy to mounting bracket, Insert blade into the slot on flywheel. Loosen 2 and remove 1 preassembled aligning loosened screws in mounting Install blade with a blade supporting plate screw from the plate on motor.
- Page 6 Install Blanking Plate Top ring Glass Bottom plate Blanking plate assembly Remove bottom plate and top ring from Place the blanking plate in position and Isolate the quick connects with electrical glass assembly by removing the set install the bottom plate and top ring with tape.
- Page 7 Remote Controller Operation Remove the battery cover from the remote control transmitter and install batteries. Replace the cover. This remote uses 2 1.5V/AAA batteries. DIM (D) Note: If not using for long periods of time, remove battery to prevent ON/OFF (O) damage to remote transmitter, and store the remote transmitter away from excess heat or humidity Dimming, Non Dimming Setting (Only available for fans with light)
- Page 8 Install Transmitter wall mount cradle with 2 screws provided. Useful tips: Take remote transmitter up by pushing it at lower area of the transmitter. The remote transmitter can be held on magnetic metal materials by a magnet built in the transmitter. Wall mount cradle The receiver provides the following protective functions Lock protection- The DC motor has a build-in safety feature...
-
Page 9: Troubleshooting
Trouble Shooting or wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, installation, please call our Customer Service Center at the number printed on your parts list insert sheet. Warning means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. - Page 10 Jan.2021...
