Owner's Guide and Installation Manual
Attach sales receipt to this card and retain as your proof of purchase
DATE OF PURCHASE:
MODEL NUMBER:
To register your fixture, please visit our website www.montecarlofans.com

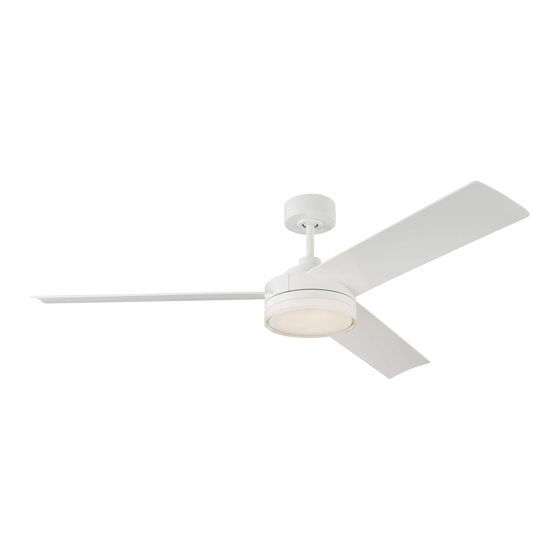

3CQR56XXXD Series Fan
cETL Model NO. : 3CQR56
RETAILER NAME:
RETAILER ADDRESS:
8.2 kg
18.04 lbs
Total fan weight
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company 3CQR56 D Series
Summary of Contents for Monte Carlo Fan Company 3CQR56 D Series
- Page 1 Owner’s Guide and Installation Manual 3CQR56XXXD Series Fan cETL Model NO. : 3CQR56 Attach sales receipt to this card and retain as your proof of purchase DATE OF PURCHASE: RETAILER NAME: RETAILER ADDRESS: MODEL NUMBER: To register your fixture, please visit our website www.montecarlofans.com 8.2 kg 18.04 lbs Total fan weight...
-
Page 2: Cautions And Warnings
Cautions and Warnings WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING READ AND SAVE THESE INSTRUCTIONS Installation work and electrical wiring must be done by qualified person(s) in accordance with applicable codes and standards (ANSI/NFPA 70), including fire-rated construction. - Page 3 Mounting bracket Before you begin installing the fan, Switch Before installing this fan make sure the Use metal outlet box suitable for fan power off at Service panel and lock outlet box is properly installed to the support and use only the screws provided service disconnecting means to prevent house structure.
- Page 4 Downrod Canopy Canopy bottom Yoke cover Place downrod over canopy, canopy Thread lead wires and safety cable from For easy assembling of the Helpful hint: bottom cap and yoke cover. motor assembly through downrod. cross pin on the next installation step. After slip downrod into the motor yoke, carefully insert a Phillips screwdriver through the yoke and downrod ( don’t damage the...
- Page 5 Wall Switch Black (Live) Power source White (Neutral) Blue (For Light) Ground/Green White (For Light) Red (Motor 1) Purple (Motor 2) Gray (Motor 3) Green/Ground Receiver Black (AC IN L) White (AC IN N) Partially loosen one and remove one Make wiring connections using wire connectors provided as indicated above.
- Page 6 Install LED Light Kit LED light fixture Caution Remove 3 preassembled screws from Connect white wire from fan to white wire : Corresponding to next light pan. Keep screws. from LED light fixture and then connect installation step, tuck the lead wires into blue (or black) wire from fan to blue (or the light pan as shown in illustration and black) wire from LED light kit.
-
Page 7: Transmitter Operation
REMOTE CONTROL SETTING and OPERATION Transmitter Operation Remove the battery cover from the remote control transmitter and install battery, battery provided. Replace the cover. Note: Use 2 1.5V/AAA battery. Note: If not using for long period of time, remove battery to prevent damage to remote transmitter, and store the remote transmitter away from excess heat or humidity. - Page 8 The buttons on the remote control transmitter control the fan speed and light as follows. Fan speed 1 = minimum speed 2 = low speed 3 = medium low speed 4 = medium speed 5 = medium high speed 6 = high speed This button turns the fan off.
-
Page 9: Troubleshooting
Trouble Shooting Warning Trouble Suggested Remedy CAUTION CAUTION CAUTION © 2020 Monte Carlo Fan Collections 1/2020... - Page 10 Jan.2020...
