5. Front Panel
For detailed operation instruction of other series, please refer to the User's Manual included
in the resources CD.

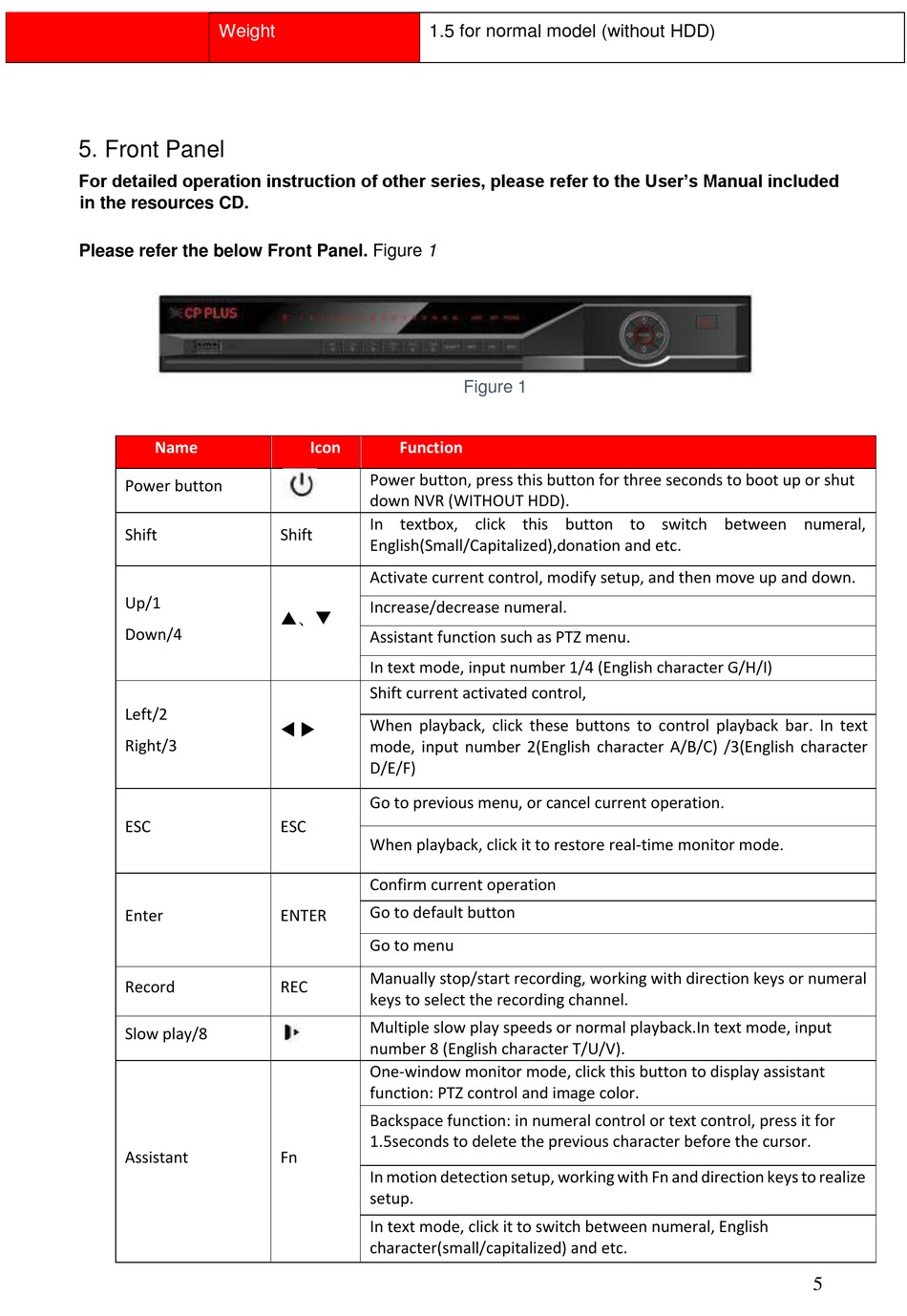

Please refer the below Front Panel. Figure 1
Name
Power button
Shift
Up/1
Down/4
Left/2
Right/3
ESC
Enter
Record
Slow play/8
Assistant
1.5 for normal model (without HDD)
Icon
Function
Power button, press this button for three seconds to boot up or shut
down NVR (WITHOUT HDD).
In textbox, click this button to switch between numeral,
Shift
English(Small/Capitalized),donation and etc.
Activate current control, modify setup, and then move up and down.
Increase/decrease numeral.
、
Assistant function such as PTZ menu.
In text mode, input number 1/4 (English character G/H/I)
Shift current activated control,
When playback, click these buttons to control playback bar. In text
mode, input number 2(English character A/B/C) /3(English character
D/E/F)
Go to previous menu, or cancel current operation.
ESC
When playback, click it to restore real-time monitor mode.
Confirm current operation
Go to default button
ENTER
Go to menu
Manually stop/start recording, working with direction keys or numeral
REC
keys to select the recording channel.
Multiple slow play speeds or normal playback.In text mode, input
number 8 (English character T/U/V).
One-window monitor mode, click this button to display assistant
function: PTZ control and image color.
Backspace function: in numeral control or text control, press it for
1.5seconds to delete the previous character before the cursor.
Fn
In motion detection setup, working with Fn and direction keys to realize
setup.
In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.
Figure 1
