MIC IN
MIC OUT

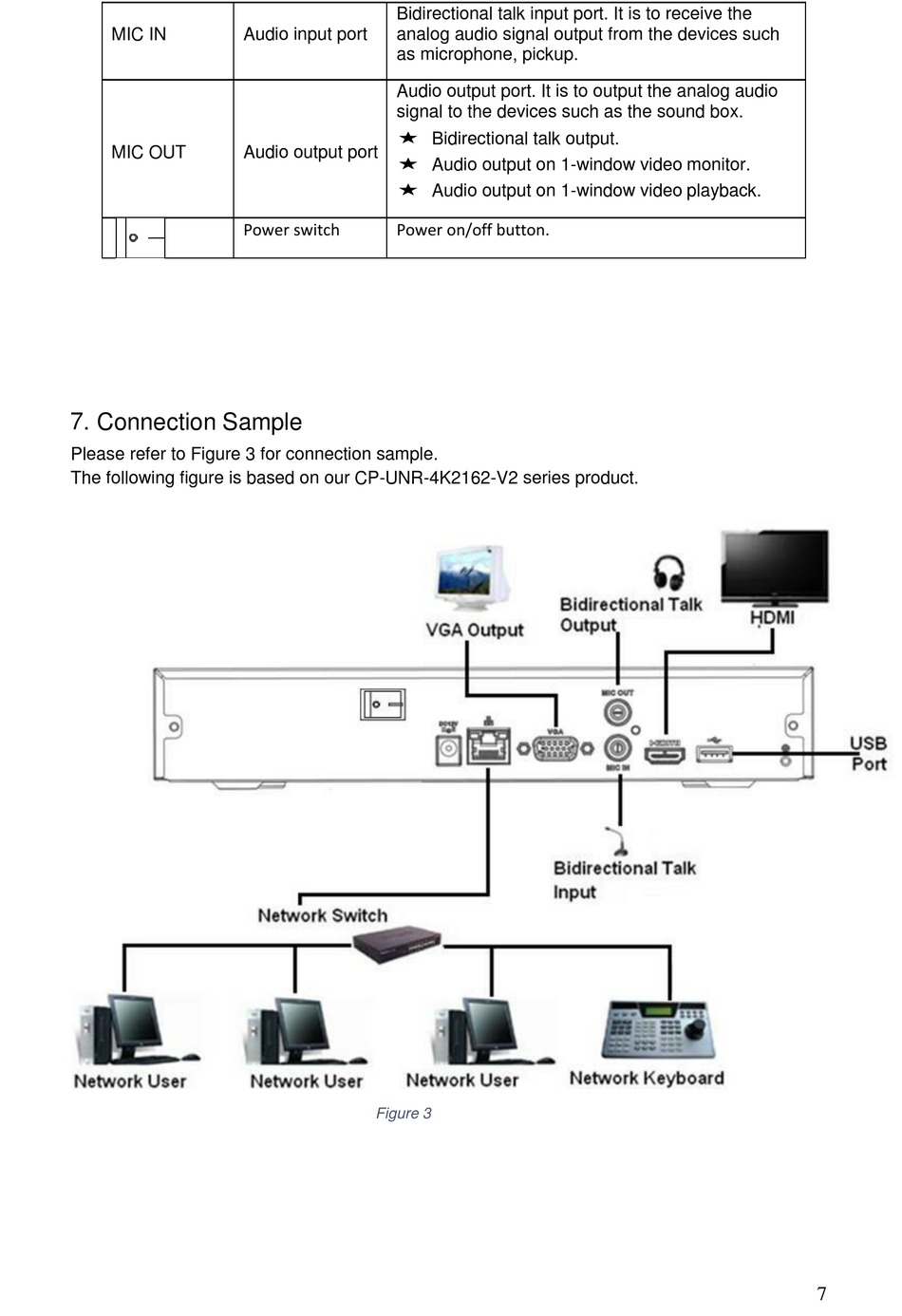

7. Connection Sample

Please refer to Figure 3 for connection sample.
The following figure is based on our CP-UNR-4K2162-V2 series product.
Bidirectional talk input port. It is to receive the
Audio input port analog audio signal output from the devices such
as microphone, pickup.
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
 Bidirectional talk output.
Audio output port
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
Power switch Power on/off button.
Figure 3
