3. HDD Installation

This series NVR has only one SATA HDD. Please use HDD of 7200rpm or higher.

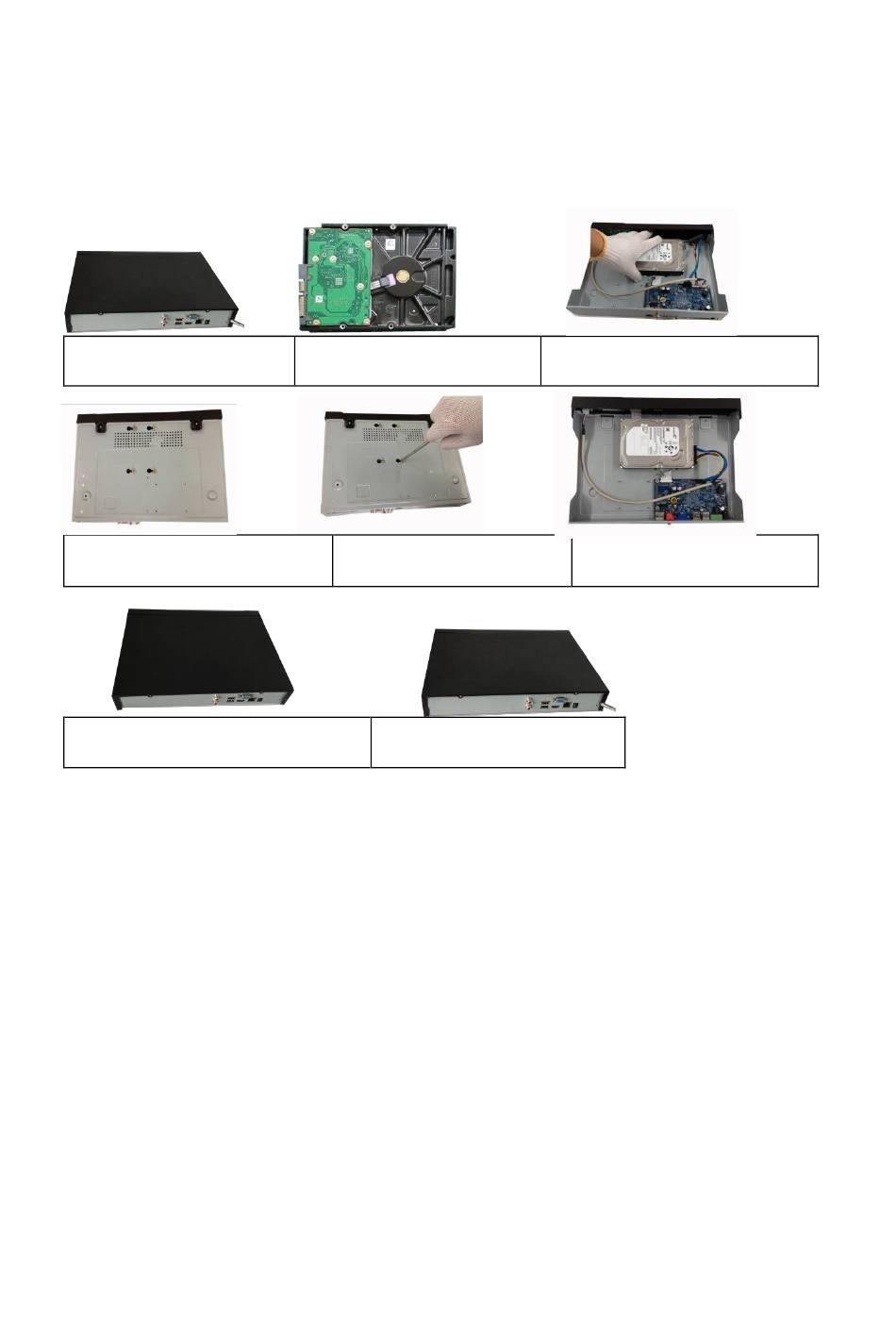

Please follow the instructions below to install hard disk.
All figures listed here are for reference only.
1. Loosen the screws of the
rear panel and side panel.
4. Turn the device upside down and
then turn the screws in firmaly
7. Put the cover in accordance with the
clip and then place the upper cover back.
2. Fix four screws in the HDD
(Turn just three rounds).
5.
Fix the HDD firmly.
8. Secure the screws in the rear
panel and the side panel.
3. Place the HDD in accordance with
the four holes in the bottom.
6. Connect the HDD cable and
power cable.
