TV-Free
Video-in-motion Interface
TF-NTG1
for Mercedes Benz
NTG1 and
Comand APS DVD
navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 28.01.2013
TF-NTG1
Advertisement
Table of Contents
Related Manuals for Car-Interface TV-Free TF-NTG1
Summary of Contents for Car-Interface TV-Free TF-NTG1
- Page 1 TV-Free Video-in-motion Interface TF-NTG1 for Mercedes Benz NTG1 and Comand APS DVD navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Check compatibility of vehicle and accessories 1.3. Setting the Dip-switches of the CAN-Box TV-500 1.4. Pin-assignments 2. Installation 3. Activation of the video-in-motion function 4. Specifications 5. Technical support 1. Prior to installation Read the manual prior to installation.
- Page 3 1.2. Check compatibility of vehicle and accessories Requirements Vehicle Mercedes Benz CL-class (C215) from 10/03, S-class (W220) from 10/03, SL-class (R230) from 06/04, CLS-Coupe (W219) from 10/04 til approx 04/08, E-class (W211) til approx 04/08, SLK-class(R171) from 03/04 til approx 04/08 Navigation NTG1, Comand APS DVD 1.3.

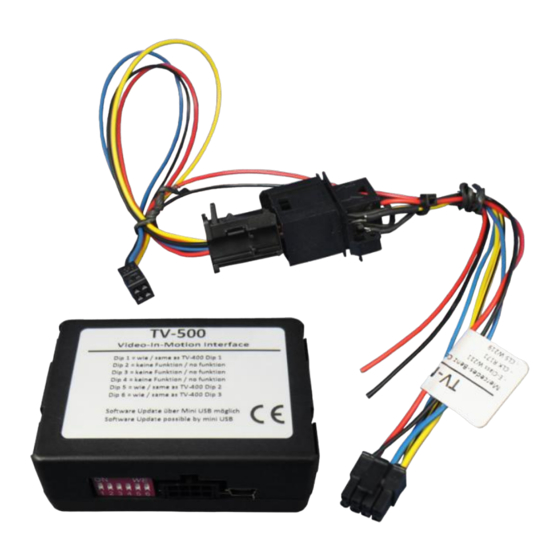

- Page 4 Pin-assignment of the CAN-Box TV-500 (Molex 8pin) Cable colour Pin-No. Assignment ● Yellow Pin 4 CAN-HIGH – connection to the head-unit ● Blue Pin 3 CAN-LOW – connection to the head-unit ●● Yellow/Black Pin 8 CAN-HIGH – connection to the vehicle ●●...
- Page 5 3. Activation of the video-in-motion function The video-in-motion can be activated and deactivated by Dip 1 or alternatively by the included loose green cable in connection with a switch (not included in delivery). Video-in-motion permanent With dip1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
