Installing in Hard Ceiling Using a Rough-in Pan (New Construction)
For information on installing a rough-in pan, see the DesignMax Rough-in Pan installation guide at PRO.BOSE.COM. Once the rough-in
pan is installed, see Mounting the Loudspeaker on page 6.
Attaching the Grille

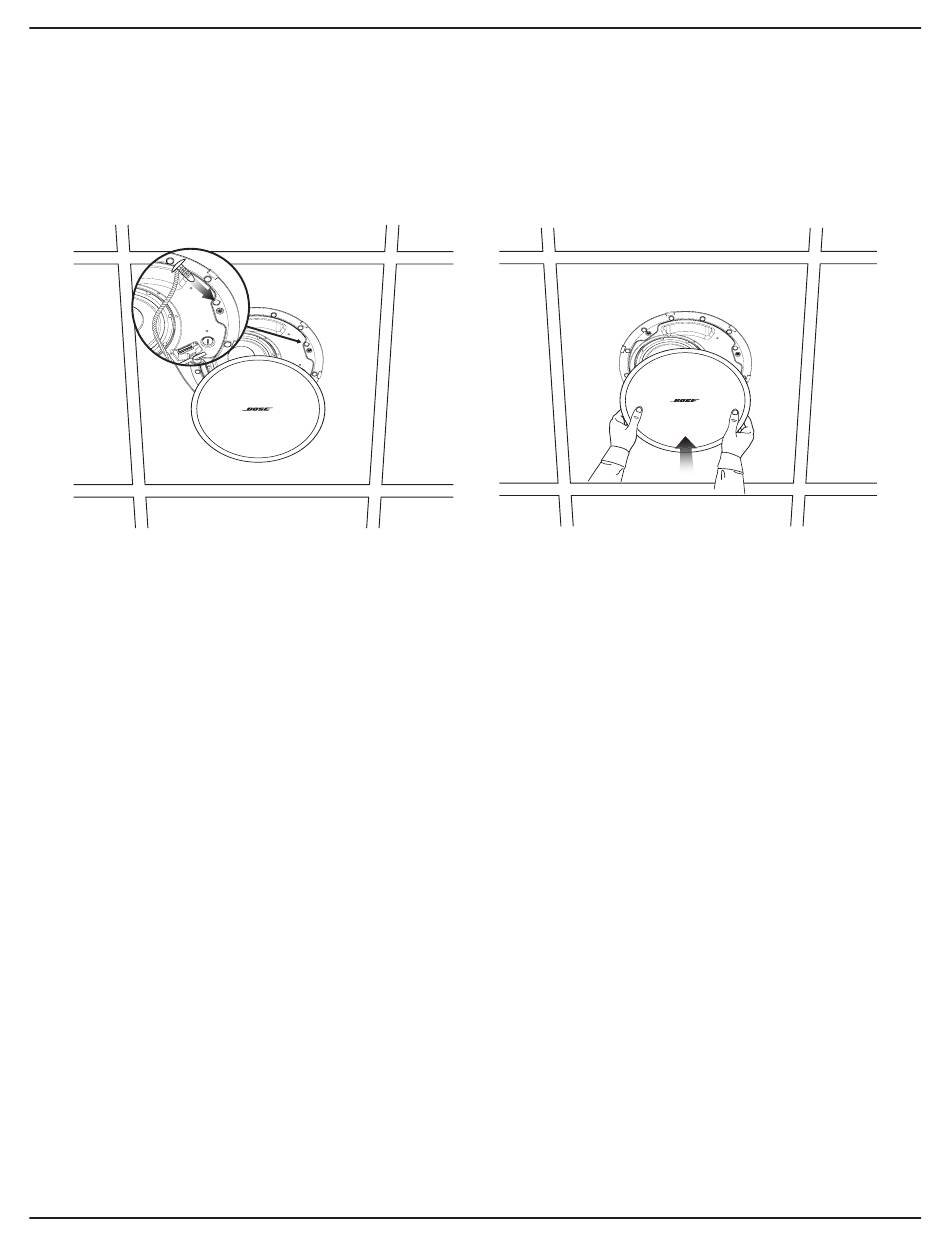

Insert the safety lanyard pin into the hole in the loudspeaker. Using both hands, position the grille against the loudspeaker. The grille
secures to the loudspeaker magnetically.
Safety and Regulatory Compliance
The Bose DesignMax DM8C-SUB loudspeaker has passed testing and complies with the following specifications and uses:
Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use
General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89
UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces.
Suitable for use in air handling (plenum) spaces.
Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code,
2017, Article 640
NFPA 70, National Electrical Code, 2017, Article 300-22(c)
NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5
The DesignMax DM8C-SUB loudspeaker has been designed to the requirements defined in the following European regulatory
specification for combination systems:
Tested to IEC60268-5, 2007
