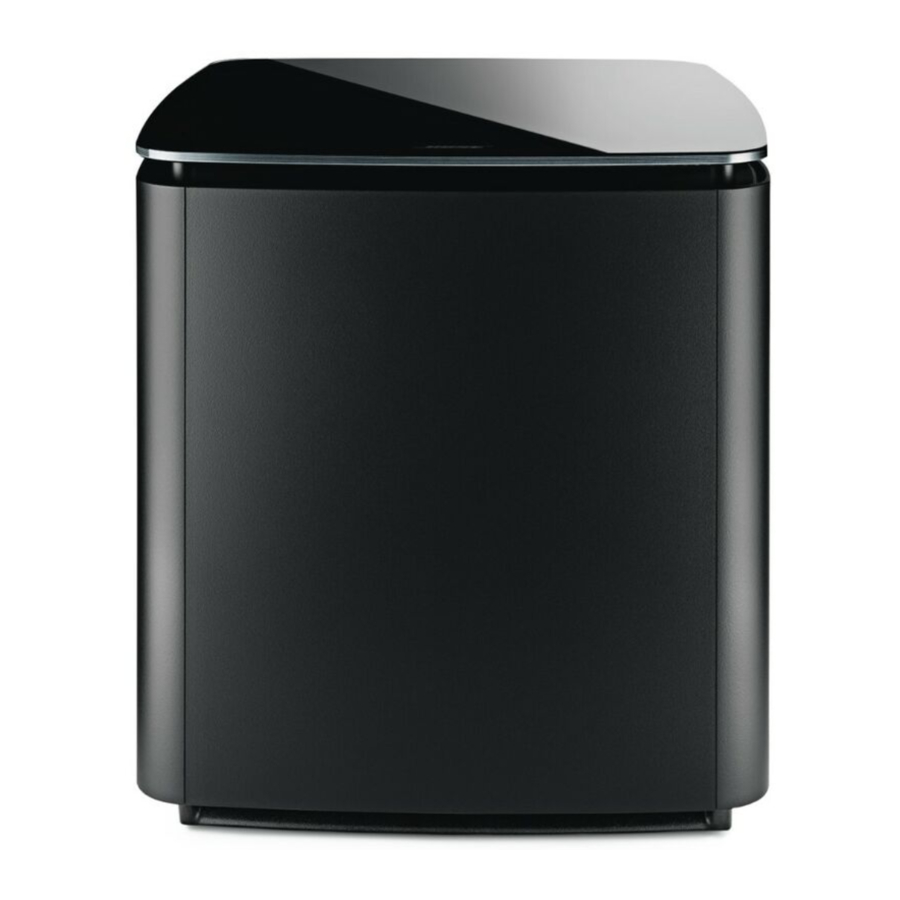

Bose BASS MODULE 700 Manual

WHAT'S IN THE CARTON

Confirm that the following parts are included:

*May ship with multiple power cords. Use the power cord for your region.

NOTE: If any part of the product is damaged or if the glass on the bass module is broken, do NOT use it. Contact your authorized Bose dealer or Bose customer service.
Visit: worldwide.Bose.com/Support

UNIT PLACEMENT

RECOMMENDATIONS

For best performance, follow these recommendations when placing the bass module:
Do NOT place any objects on top of the bass module.
To avoid wireless interference, keep other wireless equipment 1 – 3 ft. (0.3 – 0.9 m) away from the bass module. Place the bass module outside and away from metal cabinets, other audio/video components and direct heat sources.
Place the bass module on a stable and level surface. Vibration can cause the bass module to move, particularly on smooth surfaces like marble, glass or highly polished wood.
Place the bass module along the same wall as your TV, or along any other wall in the front third of the room.
Keep the front side of the bass module (the side opposite the POWER connector) at least 3 in. (7.6 cm) from any other surface. Blocking the port on the bottom of this side may affect acoustic performance.

For more bass, place the bass module closer to walls and corners. For less bass, place the bass module further from walls and corners.

Make sure there is an AC (mains) outlet nearby.

Do NOT place the bass module on its top or sides when in use.

PLACING A SECOND DEVICE

Try placing each bass module in multiple locations to see what sounds best for your listening area. After placing a module in a new location, run ADAPTiQ audio calibration using the instructions in your soundbar owner's guide. For more bass, place the modules closer to each other or closer to walls and corners.

CONNECT THE DEVICE TO POWER

1. Connect the power cord to the connector on the bass module.
2. Plug the other end of the power cord into an AC (mains) power outlet.

CONNECT TO A SOUNDBAR OR SPEAKER

CHOOSE YOUR CONNECTION METHOD

The way you connect the bass module depends on your soundbar or speaker.
Choose your connection method from the table below.

SOUNDBAR OR SPEAKER	CONNECTION METHOD
Bose Smart Soundbar (voice-enabled soundbar)	Connect using the Bose app (see "Connect Using the Bose App"). NOTE: If you can't access or have trouble connecting using the Bose app, see "Troubleshooting".
SoundTouch 300 soundbar	Connect using your soundbar's remote (see "Connect Using the SoundTouch 300 Remote").
Bose TV Speaker (or alternate wired setup for soundbars)	Connect using an audio cable (not provided) (see "Connect Using an Audio Cable").

CONNECT USING THE BOSE APP

1. In the Bose app, select your soundbar.
2. Go to the Settings menu to add your bass module.

New to the Bose app?

1. On your mobile device, download the Bose app.


2. Follow the app instructions.

CONNECT USING THE SOUNDTOUCH 300 REMOTE

1. On the SoundTouch 300 remote, press the SoundTouch button .
2. Press and hold 7 until the connectivity light on the soundbar blinks white.

Once connected, you hear a tone. The light on the back of the bass module and on the soundbar glow white.

NOTES: Connecting may take several minutes.
If the bass module doesn't connect to the soundbar, see "Troubleshooting".

Check for sound
NOTE: To avoid hearing distorted audio, turn off your TV speakers. Refer to your TV owner's guide for more information.

1. Power on your TV.
2. If you are using a cable/satellite box or other secondary source:
   1. Power on this source.
   2. If this source is connected to your TV, select the appropriate TV input.
3. Power on the soundbar.
   You hear sound coming from the bass module.
   NOTE: If you do not hear sound from the bass module, see "Troubleshooting".

CONNECT USING AN AUDIO CABLE

You can connect the module to the soundbar or speaker using a 3.5 mm audio cable (not provided).
If you don't have a 3.5 mm audio cable (commonly used for headphones and mobile devices), visit Bose.com/BM700 to purchase a 15 ft. (4.5 m) cable. You can also purchase this part at your local electronics store.

1. Connect one end of a 3.5 mm audio cable to the BASS IN connector on the bass module.

2. Connect the other end of the cable to the BASS connector on the back of the soundbar or speaker.


NOTES:
Bose Smart Soundbar: Make sure to connect the cable to the BASS connector, not the IR connector.
Bose TV Speaker: Make sure to connect the cable to the BASS connector, not the AUX IN connector.
SoundTouch 300 soundbar: Connect the cable to the ACOUSTIMAS connector.

3. Check for sound (see "Connect Using the SoundTouch 300 Remote").

CONNECT A SECOND DEVICE

(OPTIONAL)
Connecting a second bass module may produce more consistent or powerful bass throughout your listening area.

NOTES:
For more information about placing a second bass module, see "Unit Placement".
If your current bass module is connected to your soundbar or system with a 3.5 mm audio cable (see "Connect Using an Audio Cable"), you can't connect a second bass module.

Compatible bass modules
You can connect a Bose Bass Module 700 or an Acoustimass 300 bass module as a second bass module.

Connect to a Bose Smart Soundbar or SoundTouch 300 soundbar
Choose the connection method that's appropriate for your soundbar (see "Choose Your Connection Method").

Connect to a Lifestyle 650/600 home entertainment system

1. On the Lifestyle 650/600 remote, press SETUP.
2. From the UNIFY menu, select Speaker Management, then select Setup Second Bass Module.
3. Follow the on-screen instructions to connect your second bass module.

STATUS LIGHT

The light on the back of the module shows system status.

CARE AND MAINTENANCE

CLEAN THE PRODUCT

Clean the exterior of the bass module with a soft, dry cloth.

Do NOT allow liquids to spill onto the bass module or into any openings.
Do NOT use any sprays near the bass module.
Do NOT use any solvents, chemicals or cleaning solutions containing alcohol, ammonia or abrasives.
Do NOT allow objects to drop into any openings.

REPLACEMENT PARTS AND ACCESSORIES

Replacement parts and accessories can be ordered through Bose customer service
Visit: worldwide.Bose.com/Support

TROUBLESHOOTING

TRY THESE SOLUTIONS FIRST
If you experience problems with the bass module:

Unplug the power cords for the bass module and soundbar or speaker, wait 30 seconds and plug them firmly into a live AC (mains) outlet.
Secure all cables.
Check the bass module status (see "Status Light").
Move the bass module and soundbar or speaker away from possible interference (wireless routers, cordless phones, televisions, microwaves, etc.).
Move the bass module within the recommended range of your wireless router or mobile device for proper operation.
Place the bass module according to the placement guidelines (see "Unit Placement").

OTHER SOLUTIONS
If you could not resolve your issue, see the table below to identify symptoms and solutions to common problems. If you are unable to resolve your issue, contact Bose customer service.
Visit: worldwide.Bose.com/contact

IMPORTANT SAFETY INSTRUCTIONS

Please read and keep all safety, security, and use instructions.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
10. Only use attachments/accessories specified by the manufacturer.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock.
This symbol on the product means there are important operating and maintenance instructions in this guide.
This product contains a tempered glass surface. Use caution to avoid impact. In the event of breakage, use care in handling broken glass.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

•
  To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture.
• Do NOT expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
• Do NOT make unauthorized alterations to this product.
• Do NOT use a power inverter with this product.
• Do NOT use in vehicles or boats.
• The speaker wire and interconnect cables included with this system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Use at altitude less than 2000 meters only.

• Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
• The product label is located on the bottom of the product.

To register your product, visit global.Bose.com/register for instructions.
Failure to register will not affect your limited warranty rights.

Bose Corporation
100 The Mountain Road, Framingham, MA 01701-9168 USA AM772090-0020
