F1 Flexible Array Loudspeaker System
F1 Model 812 and F1 Subwoofer
Owner's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1 812 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bose F1 812

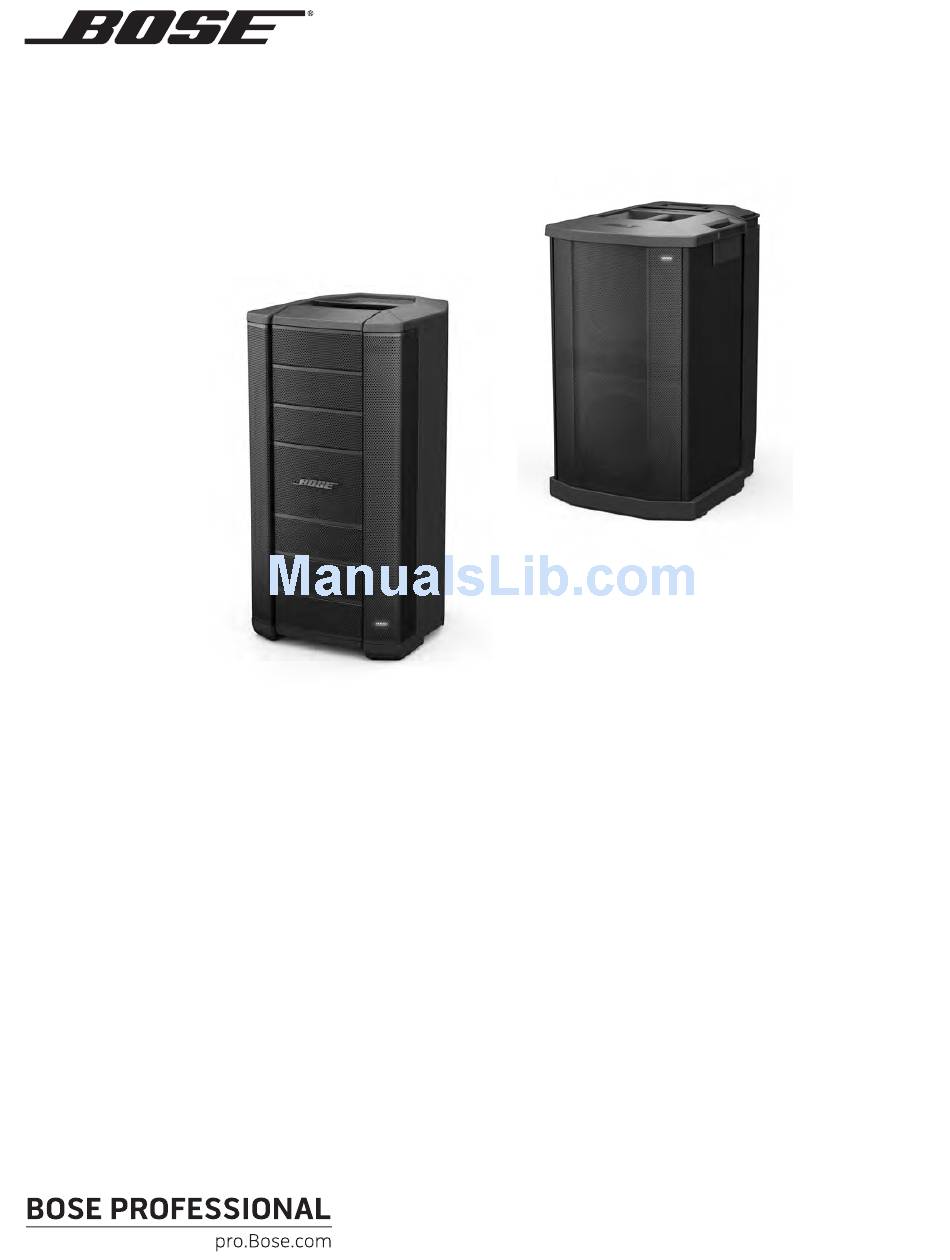

  • Page 1 F1 Flexible Array Loudspeaker System F1 Model 812 and F1 Subwoofer Owner’s Guide...
  • Page 2: Important Safety Instructions

    F1 Subwoofer ________________________________________ This Class A digital apparatus complies with Canadian ICES-003. Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment. 2 - English...
  • Page 3: Table Of Contents

    Contents Introduction Product Description ..............................Features and Benefits ..............................Carton Contents ................................F1 Model 812 Flexible Array Loudspeaker ........................F1 Subwoofer ................................Using the Flexible Array ..............................Adjusting the array ..............................Four coverage patterns ............................Applications ................................Setting Up the System Using the F1 Model 812 with the F1 Subwoofer ......................
  • Page 4: Product Description

    For extended bass response, the Bose F1 Subwoofer packs all the power of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy.

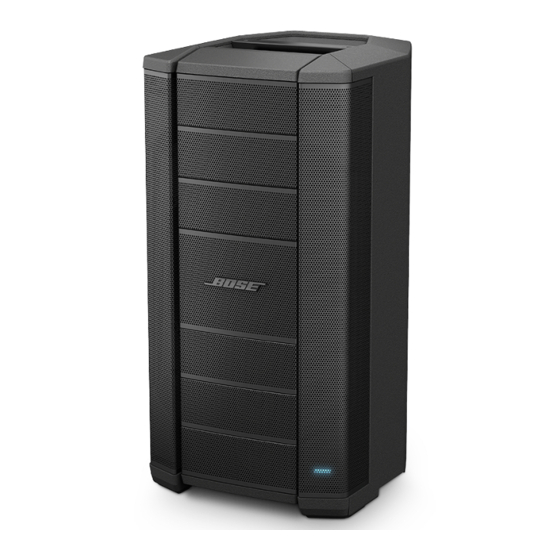

  • Page 5: F1 Model 812 Flexible Array Loudspeaker

    Introduction F1 Model 812 Flexible Array Loudspeaker Note: The F1 Model 812 comes with threaded M8 inserts for rigging or attaching accessory brackets. CAUTION: Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead. Carry handle Threaded M8 inserts...
  • Page 6: Using The Flexible Array

    Introduction Using the Flexible Array You can shape the coverage pattern by moving the position of the top and bottom array. The array position is held in place by magnets that trigger internal sensors that adjust EQ according to array shape. Adjusting the array Pushing the array in Pulling the array out...
  • Page 7: Applications

    Introduction Applications Straight pattern Use the straight pattern when the audience is standing and their heads are approximately at the same height as the loudspeaker. Reverse-J pattern The reverse-J pattern is good for an audience in raked seating that starts at loudspeaker height and extends above the top of the loudspeaker.
  • Page 8: Setting Up The System

    Setting Up the System Using the F1 Model 812 with the F1 Subwoofer The built-in loudspeaker stand is stored in the rear of the subwoofer. Setting up the F1 Model 812 Loudspeaker with the F1 Subwoofer is easy: 1. Remove the built-in speaker stand from the back of the F1 Subwoofer and insert it into the stand slots. Built-in speaker stand Stand slots...
  • Page 9: Using The F1 Model 812 On A Tripod Stand

    Setting Up the System 3. Plug in your audio cables. Feed the cables from the F1 Model 812 through the channels in the speaker stand to help keep them organized. Cable channel (both sides) Using the F1 Model 812 on a Tripod Stand The bottom of the F1 Model 812 Loudspeaker includes pole cup for mounting the loudspeaker on a tripod speaker stand.
  • Page 10: Operation

    Operation F1 Model 812 Control Panel Note: For a complete list of LED indications and behaviors, see “LED Indicators” on page 20. POWER: AC AC power input power on/off SIGNAL/CLIP: Displays the input signal status SIGNAL/CLIP: Displays the input signal in color.
  • Page 11: F1 Subwoofer Control Panel

    Operation F1 Subwoofer Control Panel Note: For a complete list of LED indications and behaviors, see “LED Indicators” on page 20. FRONT LED selector switch: • POWER enables LED to indicate power status. • LIMIT enables LED to indicate limiting. •...
  • Page 12: Power On/Off Sequence

    Operation Power On/Off Sequence When turning the system on, turn on input sources and mixing consoles first and then turn on the F1 Model 812 Loudspeaker and the F1 Subwoofer. When turning the system off, turn off the F1 Model 812 and F1 Subwoofer first followed by input sources and mixing consoles.
  • Page 13: Connection Scenarios

    Operation Connection Scenarios Full band, mixing console stereo output to L/R F1 Model 812 Loudspeakers Set F1 Model 812 EQ to FULL RANGE. F1 Model 812 If using INPUT 1, set F1 Model 812 SIGNAL INPUT to LINE LEVEL. F1 Model 812 Full band with mixing console, one F1 Subwoofer and two F1 Model 812 Loudspeakers Set LINE OUTPUT EQ...
  • Page 14: Mixing Console Stereo Output To F1 Subwoofer And Left/Right F1 Model 812 Loudspeakers

    Operation Mixing console stereo output to F1 Subwoofer and left/right F1 Model 812 Loudspeakers Note: The recommend EQ settings are provided under the heading, “Power On/Off Sequence” on page 12. How- ever, for maximum bass response, set the EQ selector switch on both F1 Model 812 Loudspeakers to FULL RANGE and set the EQ selector switch on the F1 Subwoofer to THRU.
  • Page 15: Stereo Input To Left/Right F1 Subwoofers And F1 Model 812 Loudspeakers

    Operation Full band with mixing console stereo output to two F1 Subwoofers and two F1 Model 812 Loudspeakers Set LINE OUTPUT EQ to THRU (full range). Set F1 Model 812 EQ to WITH SUB. F1 Subwoofer F1 Model 812 Set LINE OUTPUT EQ Set F1 Model to THRU...
  • Page 16: Mic To F1 Model 812 Loudspeaker Input 1

    Operation Mic to F1 Model 812 Loudspeaker INPUT 1 Set F1 Model 812 Set F1 Model 812 SIGNAL INPUT to EQ to FULL RANGE. MIC. Mobile device to single F1 Model 812 Loudspeaker Set F1 Model 812 EQ to FULL RANGE. Mobile device headphone output to F1 Model 812 INPUT 2 RCA connectors.
  • Page 17: Mobile Device To F1 Flexible Array Loudspeaker System

    Operation Mobile device to F1 Flexible Array Loudspeaker system Set F1 Model 812 EQ to WITH SUB. Mobile device headphone output to F1 system. Mobile device to F1 Model 812 Loudspeaker and F1 Subwoofer F1 Model 812 F1 Subwoofer Set F1 Model 812 EQ to FULL RANGE.
  • Page 18: Dj Console To Two F1 Subwoofers And Two F1 Model 812 Loudspeakers

    Operation DJ Console to two F1 Subwoofers and two F1 Model 812 Loudspeakers F1 Subwoofer F1 Model 812 Set LINE Set F1 OUTPUT EQ Model to THRU 812 EQ to (full range). WITH SUB. F1 Subwoofer F1 Model 812 18 - English...
  • Page 19: Care And Maintenance

    • Do not use any sprays near the product or allow liquids to spill into any openings. • If necessary, you may carefully vacuum the grille of the loudspeaker array. Getting Service For additional help in solving problems, contact the Bose Professional Sound Division at (877) 335-2673 or visit our support area online at www.Bose.com/livesound. Troubleshooting If you experience problems while using this product, try the following solutions.
  • Page 20: Led Indicators

    Register your products online at www.Bose.com/register or call (877) 335-2673. Failure to do so will not affect your warranty rights. Accessories A variety of wall/ceiling brackets, carry bags and covers are available for these products. Contact Bose to place an order. See the contact information inside the rear cover of this guide. 20 - English...
  • Page 21: Technical Information

    Care and Maintenance Technical Information Physical Dimensions Weight F1 Model 812 Loudspeaker 26.1" H x 13.1" W x 14.6" D (665 mm H x 334 mm W x 373 mm D) 44.5 lb (20.18 Kg) F1 Subwoofer 27.0" H x 16.1" W x 17.6" D (688 mm H x 410 mm W x 449 mm D) 55.0 lb (24.95 Kg) F1 system stack 73.5"...
  • Page 23 Additional Resources Visit us on the web at pro.Bose.com. Hong Kong Bose Limited Americas Suites 2101-2105, Tower One, Times Square (USA, Canada, Mexico, Central America, South America) 1 Matheson Street, Causeway Bay, Hong Kong Bose Corporation 852 2123 9000 The Mountain...
  • Page 24 ©2015 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM740644 Rev. 00...
