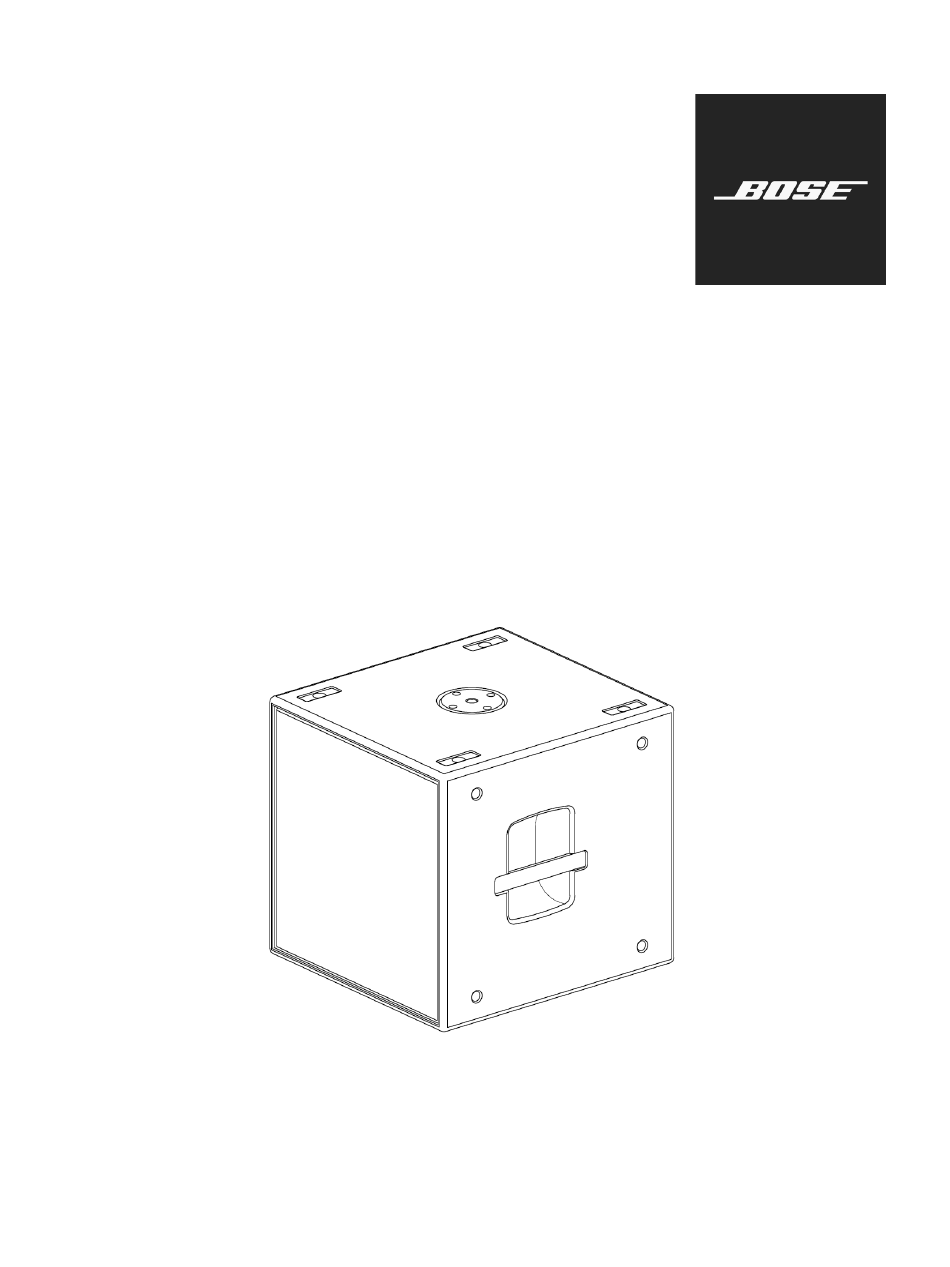

AMS115
Compact Subwoofer
Service Manual
©2021 Bose Corporation
Reference Number 843163-SM
REV 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMS115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bose AMS115

Summary of Contents for Bose AMS115

  • Page 1 AMS115 Compact Subwoofer Service Manual ©2021 Bose Corporation Reference Number 843163-SM REV 00...

  • Page 2: Table Of Contents

    CONTENTS Title Page PRODUCT DESCRIPTION .........................3 SAFETY INFORMATION ..........................3 ELECTROSTATIC DISCHARGE SENSITIVE (ESDS) DEVICE HANDLING ..........4 WARRANTY..............................4 PART LIST NOTES .............................4 PACKAGING PART LIST ...........................5 Figure 1. Packaging Exploded View ......................5 MAIN ASSEMBLY LIST..........................6 Figure 2. Main Assembly Exploded View ....................7 DISASSEMBLY PROCEDURE........................8 Figure 3.

  • Page 3: Product Description

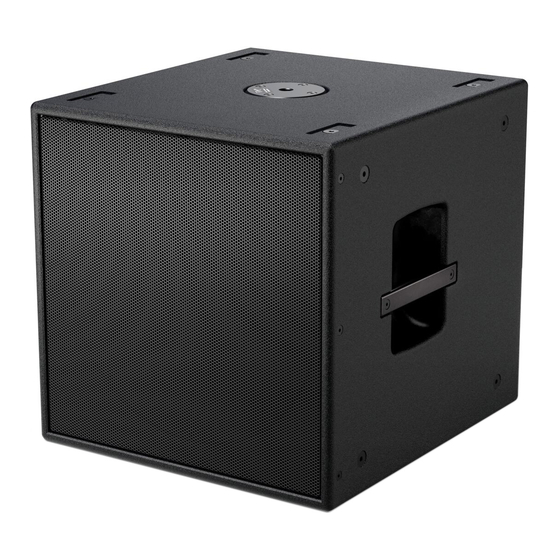

    Designed for use with the AMM multipurpose loudspeakers, the AMS115 subwoofer extends system bandwidth to 35Hz. A compact, high output design, the AMS115 utilizes a single 15-inch driver in a direct radiating, bass-reflex tuned enclosure the AMS115. Integrated M20 thread pole-mount adaptor, handles and castor mounting points facilitate porta- ble use, while M10 threaded inserts allow for flown installation where required.

  • Page 4: Electrostatic Discharge Sensitive (Esds) Device Handling

    WARRANTY The Bose AMS115 Compact Subwoofer is covered by a limited 5-year transferable warranty. Units that fail within 90 days of sale should be replaced. PART LIST NOTES 1.

  • Page 5: Packaging Part List

    PACKAGING PART LIST AMS115 Compact Subwoofer (see Figure 1) Item Number Description Part Number Note PAPER TRAY-TOP BAG, FOAM-FILM, .5 EPE, 667X130 CARTON, SLEEVE 853683-0010 PAPER TRAY-BOTTOM Figure 1. AMS115 Packaging Exploded View...

  • Page 6: Main Assembly List

    MAIN ASSEMBLY LIST AMS115 Compact Subwoofer (see Figure 2) Item Number Description Part Number Note ASSY, ENCLOSURE ASSY, GRILLE 855787-0110 WOOFER 845741-0010 CUP, HANDLE HANDLE, ALUMINUM GASKET, HANDLE CUP GASKET, POLE MNT GASKET, HANDLE FOOT, ENCLOSURE BRACKET SUPPORT, M10 CGASKET, M10 SUPPORT BRKT...
  • Page 7 MAIN ASSEMBLY EXPLODED VIEW Figure 2. AMS115 Exploded View...

  • Page 8: Disassembly Procedure

    DISASSEMBLY PROCEDURE 1. Grille Removal 1.1 On the Enclosure of the unit, remove the 6 M6 screws (both sides) securing the Grille as indicated in Figure 3. Re-assembly Note: The install torques of the Grille is around 20 +/-1 kgf*cm. Figure 3.

  • Page 9: Functional Test Procedure

    FUNCTIONAL TEST PROCEDURES Required Equipment • Audio Sweep Generator • L2400 Power Amplifier 1. Air Leak Test 1.1 Apply a 50 Hz, 10 Vrms tone signal to the unit’s PARALLEL (left) input. 1.2 Listen for any air leaks from sealed areas such as the Grille Assy and Cup Pole.

  • Page 10: Service Manual Revision History

    SERVICE MANUAL REVISION HISTORY Revision Changes Driven Pages (s) Date Description of Changes Level Affected 4/2021 Document released at revision 00 Initial Release...
  • Page 11 Bose Corporation 100 The Mountain Road Framingham Massachusetts USA 01701 Reference Number 843163-SM REV 00, 4/2021 http://serviceops.bose.com...
