1. Use screwdriver (in accessories bag) to loosen adjusting screw.
2. Adjust the device in all possible directions, and set its monitoring direction according to use
requirement.
3. Use screwdriver to tighten the adjusting screws.
Step 7
Waterproof connector installation for network port; see Figure 2-4 for more details.
Note:
Please implement this step if the device is equipped with network port waterproof connector and
it is used outdoors.
1. Keep the convex groove outward and install the rubber ring into the network port, keep the
smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of
the waterproof connector.
2. Pull the network cable without crystal head through main body of waterproof connector, fixing
rubber ring and waterproof locking cover, make the crystal head of network cable, and then
insert it into the network cable.

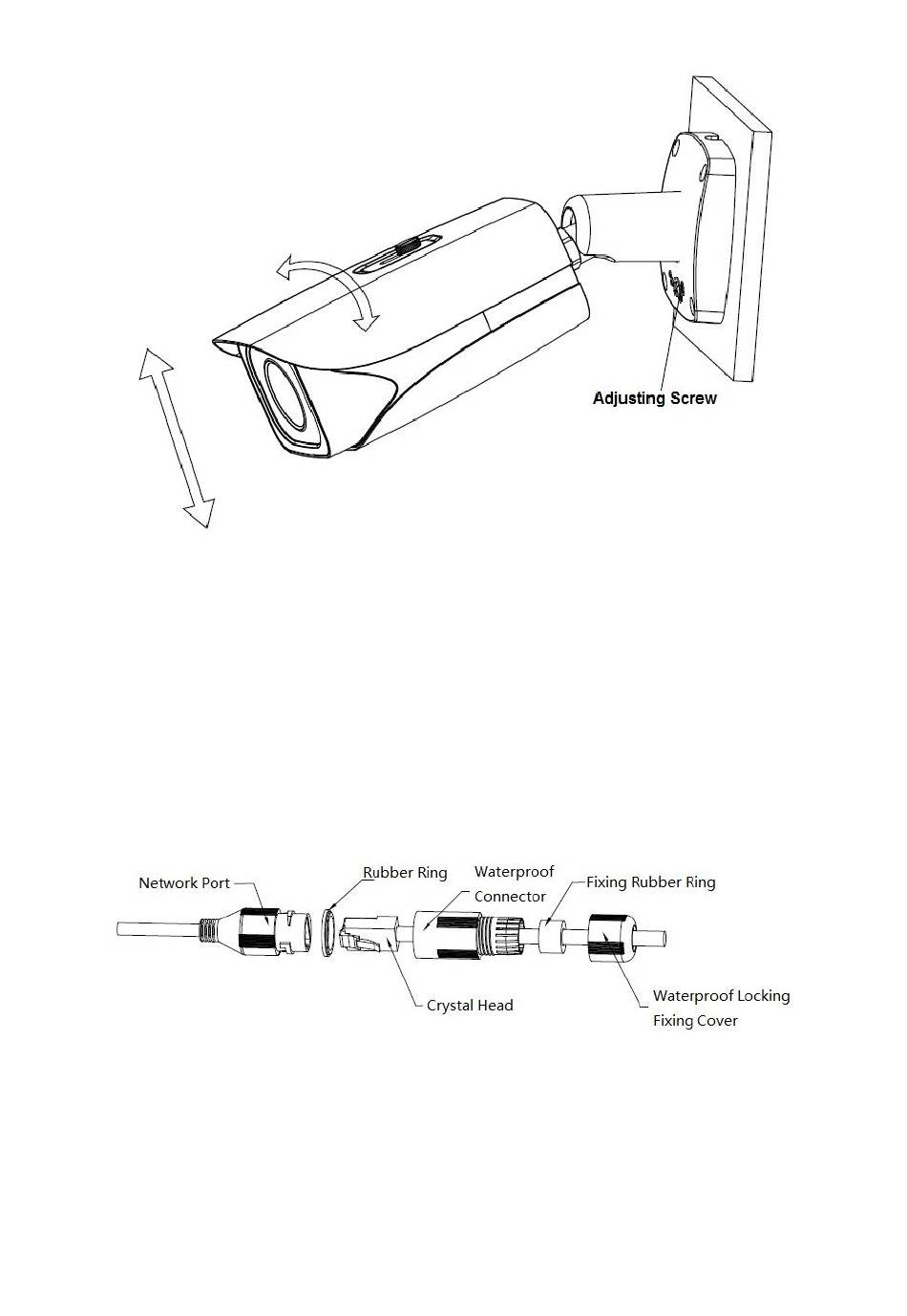

Figure 2-3
