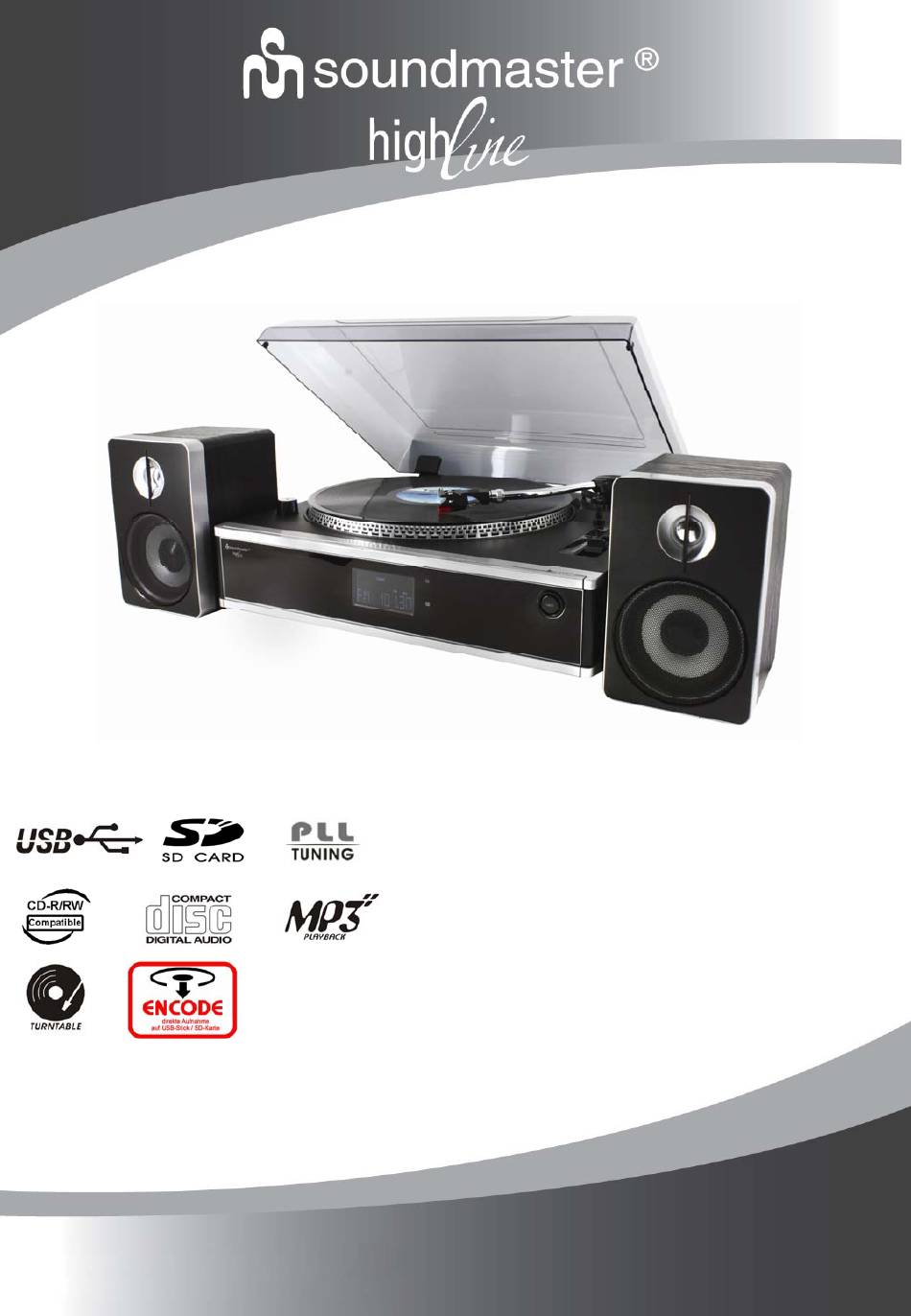

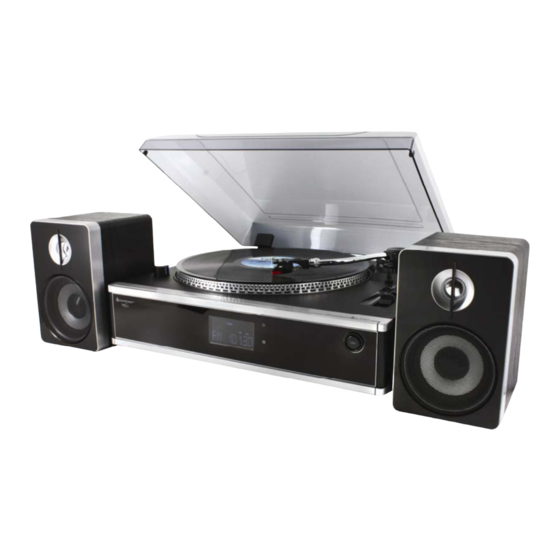

- Page 1 DEUTSCH ENGLISH FRANÇAIS NEDERLANDS ESPAÑOL PL870USB...
- Page 2 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
-
Page 3: Location Of Controls
LOCATION OF CONTROLS 1) DUST COVER 2) LCD DISPLAY 3) CD TRAY OPEN/CLOSE BUTTON 4) CD TRAY 5) 3.5MM AUX IN JACK 6) 3.5MM HEADPHONE JACK 7) PANEL COVER 8) USB SOCKET 9) SD/MMC CARD SLOT 10) STANDBY LED INDICATOR 11) POWER ON/STANDBY BUTTON 12) FUNCTION BUTTON 13) MEMORY/CLOCK-ADJUST BUTTON... -
Page 4: Setting The Clock
REMARK : THE WORKING PRESSURE OF THE PROVIDED STYLUS IS FROM THE RANGE 4 – 6 GRAMS ACCORDING TO THE CARTRIDGE MANUFACTURER. ALL STYLUS HAS IT OWN WORKING PRESSUE AND PLEASE REFER TO THE SPECIFICATION RESPECTIVELY. CONNECTION CONNECT THE POWER CORD (37) TO AC OUTLET AND CONNECT THE SPEAKER WIRE TO THE SPEAKER TERMINAL (34) LOCATED ON THE REAR SIDE OF UNIT. -
Page 5: Fm & Fm-Stereo Reception
THE PRE-SET MEMORIES WILL BE CANCELLED COMPLETELY IF SWITCHING OFF THE MAIN POWER BUTTON ON SYSTEM. YOU ARE RECOMMENDED TO SWITCH THE SYSTEM INTO STANDBY MODE FOR CONVENIENCE USAGE. YOU CAN OVERWRITE A PRESET STATION BY STORING ANOTHER FREQUENCY IN ITS PLACE. FM &... - Page 6 SONG TITLE/FOLDER NAME SEARCH FUNCTION (BY REMOTE HANDSET) YOU CAN SEARCH THE TRACK BY THE TITLE/FOLDER NAME IN DISC DURING STOP OR PLAYBACK MODE:- PRESS THE “ FIND “ BUTTON ONCE, THEN PRESS THE “SKIP UP ” OR SKIP DOWN BUTTON (18/20), YOU CAN SEARCH THE TITLE OF EACH SONG ONE BY ONE UNDER ALPHABET ORDER &...
- Page 7 3. SELECT A DESIRED TRACK BY PRESSING SKIP UP OR DOWN BUTTONS (18/20). 4. PRESS THE“ MEM/CLK-ADJ ” BUTTON (13) TO STORE THE TRACK INTO MEMORY. 5. REPEAT STEPS 3 AND 4 TO ENTER ADDITIONAL TRACKS INTO THE MEMORY IF NECESSARY. 6.
- Page 8 PRESS THE “ “ BUTTON (15) AND THE UNIT WILL DISPLAY “ ” & “ “ AND FLASHING. ENCODING IS NOW PERFORMING. PRESS THE “ “ BUTTON (15) REPEATLY AGAIN TO SELECT “ REC_ALL “. AFTER COMPLETED OF ENCODING ACCORDING TO THE PRESET PROGRAM, UNIT WILL STOP PLAYBACK AUTOMATICALLY.
- Page 9 • ENCODE AND CONVERT THE MUSIC FILES FROM THE CONNECTED DEVICE TO USB/SD INTO MP3 FORMAT. FOLLOW THE SAME PROCEDURE AS DESCRIBED IN THIS MANUAL. TRACK SEPARATION (BY REMOTE HANDSET) YOU CAN DIVIDE THE RECORDING MUSIC FROM PHONO, OR RADIO TO USB/SD TRACK BY TRACK DURING ENCODING.
- Page 10 PLAY EJECTION PRESS THE EJECT BUTTON (16) ANYTIME DURING PLAYBACK WILL RETURN THE TONE ARM TO THE REST POSITION IMMEDIATELY. Remark : - DUE TO THE LENGTH OF THE RECORD IS VARIOUS, IF YOU FIND THE TONE ARM CANNOT RETURN AUTOMATICALLY AFTER PLAYBACK OF RECORD. PLEASE PRESS THE EJECT BUTTON AND RETURN THE TONE ARM BACK TO THE REST POSITION - USERS SHOULD NOT CHANGE TO A MAGNETIC CARDRIDGE SYSTEM, OTHERWISE UNIT CAN´T BE CONNECTED ANYMORE TO AN AUX-IN OF MUSIC-CENTER...
-
Page 11: Line Out Connection
LINE OUT CONNECTION YOU CAN CONNECT THE SYSTEM TO YOUR WHOLE HI-FI SYSTEM BY CONNECTING THE LINE OUT SOCKET (35) TO THE AUXILIARY INPUT SOCKET WITH A RCA CABLE (NOT PROVIDED). MORE FEATURES A. SLEEP SETTING (BY REMOTE CONTROL) 1. PRESS “SLEEP” BUTTON AND SLEEP INDICATOR “ “... - Page 12 REMOTE CONTROL TRANSMITTER BUTTON DESCRIPTION BATTERY INSTALLATION (BATTERY NOT PROVIDED) THE INFRA-RED TRANSMITTER REQUIRE 2 PC AAA SIZE BATTERY FOR OPERATION BUTTON DESCRIPTION ON/STANDBY PRESS TO SWITCH ON/STANDBY THE SYSTEM FUNCTION PRESS TO SELECT THE FUNCTIONS (TUNER-CD-USB-SD-PHON/AUX) DISPLAY AT POWER ON : PRESS TO DISPLAY CURRENT TIME TUNIGN SKIP UP /DOWN...
