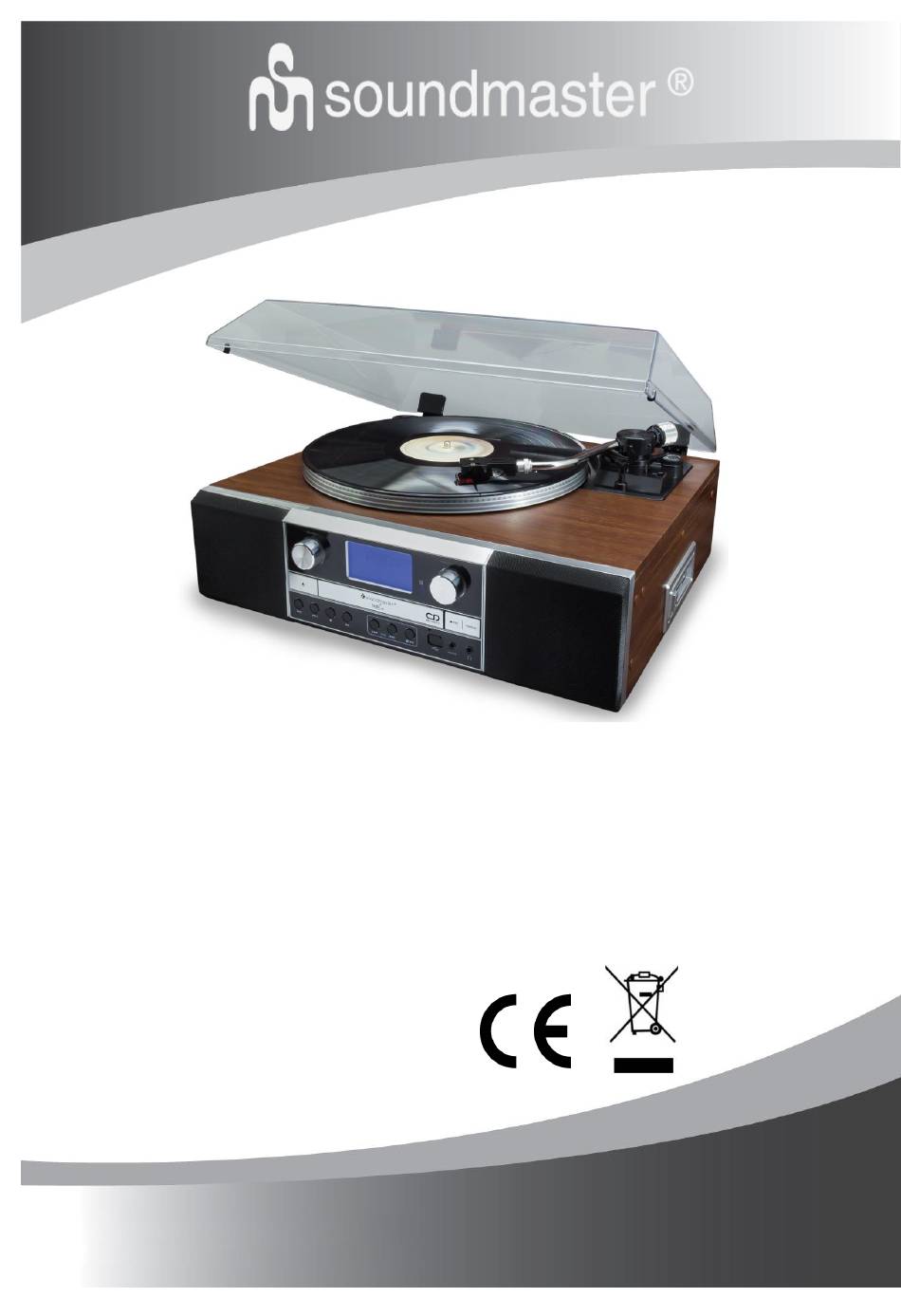

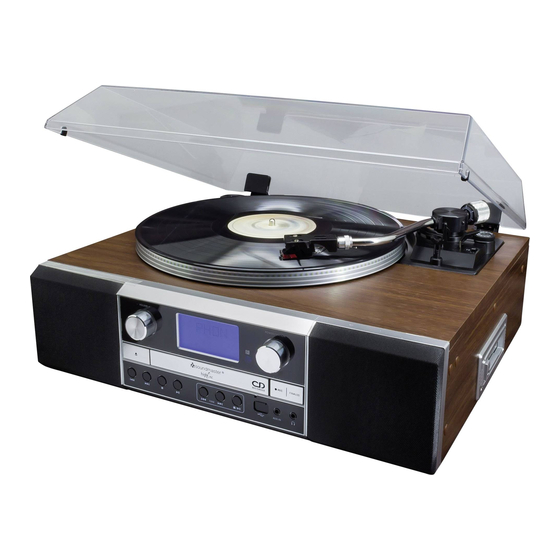

- Page 1 DEUTSCH FRANÇAIS ENGLISH NEDERLANDS Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com PL905...
- Page 2 Safety, Environmental and Setup Instructions Use the device in dry indoor environments only. ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household Protect the device from humidity. waste at the end of its life cycle. Return it to a collection ...
-
Page 3: Battery Installation
BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment door by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment. - Page 4 Location of controls 1) Remote sensor 2) Standby LED indicator 3) LCD display 4) Power/Function button 5) Left Speaker 6) CD tray open button 7) CD tray CD tray eject hole 9) Volume +/- button 10) Finalize button 11) CD stop button 12) Record button 13) CD play/pause...
-
Page 5: Stop Mode
Remark : The working pressure of the provided stylus is from the range 4 – 6 grams. According to the cartridge manufacturer. All stylus has it own working pressure and please refer to the specification respectively. Connection Connect the AC line cord (34) to AC outlet. Press the Power/Function button (4) and if standby LCD display light on, it’s mean the power supply is normal. -
Page 6: Skip Mode
Skip mode (skip up / skip down During play or pause mode, if “ Skip up ” button (15/37) is pressed. It will go to next track and display the track no. and then remain the play or pause mode. During play or pause mode, if “... -
Page 7: Recording Setting
A) Recording mode ) Phono recoding Rotate the Function button to select “ Phono “ mode. Place the recorded vinyl & get ready for playback. Press “ Rec “ button (12/43) and then press the CD “ Play/Pause ” button (13/36) until the play indicator “ “... -
Page 8: Play / Pause Mode
1． Select CD function mode and place the CD-R(W) disc you are going to finalize. 2． Press the finalize button during CD stop mode. “ Fin-d “ appears on the LCD display (3) (press the “ CD stop ” button (11/38) to quite finalize mode if necessary) 3．... -
Page 9: Play Mode
Remark The system can detect and read the file under MP3 format only though the USB port. If connect the system to MP3 player via the USB socket, due to variances in MP3 encoding format, some player may not be able to play via the USB socket. -
Page 10: Phono Operation
This is recommended to take out the cassette tape from the system every times after listening and don’t leave the cassette tape inside the system when not under playback mode. Phono Operation Remove the stylus protector. Be sure that the tone arm is being detached from the tone arm rest before operating and re-secured again afterwards. -
Page 11: Line Out Connection
B) if the system cannot return to rest position automatically after playback of record 2) use a cross head screw driver and turning the alignment screw (26) inside the hole anti-clockwise, the stopping and eject position of the tone arm will move more away from the center of the record before playback completion. Remark:- The stopping position is very subjective among difference customer, please select the most suitable position based on your own record collection. - Page 12 Remote control transmitter Battery installation (battery not provided) The infra-red transmitter requires 2 pc AAA size battery for operation Button description 35) Stnadby/On button Operate the unit to standby or on mode 36) Play/Pause In CD mode, press once to start playback. Press again to enter pause mode 37) Skip up /down...
-
Page 13: Technical Data
TECHNICAL DATA Power Source: AC 230V~50Hz Max. Power Consumption: Radio Frequency: 87,5 - 108 MHz IMPORTER Wö rlein GmbH Tel.: +49 9103 71 67 0 Gewerbestrasse 12 Fax: +49 9103 71 67 12 D 90556 Cadolzburg E-Mail: service@woerlein.com Deutschland Web: www.woerlein.com Technische Änderungen und Druckfehler vorbehalten Urheberrecht liegt bei Woerlein GmbH, 90556 Cadolzburg,... - Page 14 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 2014/53/EU. Bestimmungen der Richtlinie 2014/53/EU befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
