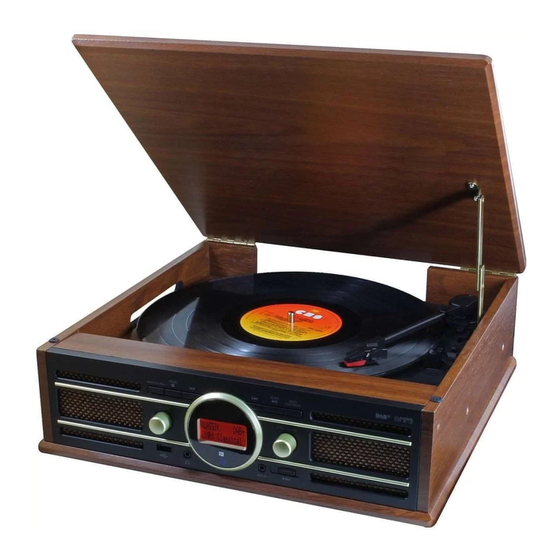

Retro am / fm radio record player
Hide thumbs Also See for PL585:

Advertisement

Quick Links

The materials are reusable according to their markings. By reusing, recycling or
other forms of utilization of old devices you make an important contribution to
the protection of our environment.
Please contact your local authorities for details about collection points.
WARNING
Risk of electric shock
Do not open!
Caution: To reduce the risk of electric shock, do not remove the
cover (or back). There are no user serviceable parts inside. Refer
servicing to qualified service personnel.
Safety, Environmental and Setup Instructions
Use the device in dry indoor environments only.
Protect the device from humidity.
Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with
the specifications on the rating plate.
Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
A damaged mains cable or plug must immediately be replaced by an authorized service center.
In case of lightning, immediately disconnect the device from the mains supply.
Children should be supervised by parents when using the device.
Clean the device with a dry cloth only.
Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
Do not expose the device to direct sunlight or other heat sources.
Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
Do not cover the ventilation openings!
Install the device at a safe and vibration-free location.
Install the device as far away as possible from computers and microwave units; otherwise radio reception may be
disturbed.
Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized
service/ customer center.
Only use mercury and cadmium-free batteries.
Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
Return the batteries to your dealer or to collection points in your community.
Keep batteries away from children. Children might swallow batteries.
Contact a physician immediately if a battery was swallowed.
Check your batteries regularly to avoid battery leakage.
Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced
Replace only with the same or equivalent type
ENVIRONMENTAL PROTECTION
Do not dispose of this product with the normal household waste at the end
of its life cycle. Return it to a collection point for the recycling of electrical
and electronic devices. This is indicated by the symbol on the product,
user manual or packaging.
This symbol indicates the presence of dangerous
voltage inside the enclosure, sufficient enough to
cause electric shock.
This symbol indicates the presence of important
operating and maintenance instructions for the
device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL585 and is the answer not in the manual?

Questions and answers

Summary of Contents for SOUNDMASTER PL585

  • Page 1 ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.
  • Page 2: Remote Control

    PL585 / English Instruction Manual REMOTE CONTROL Button description “Function” Press to select the functions (Phono(AUX)/USB/DAB/FM) “I/ - On / Standby” Press to power on / standby the system “Skip ” In USB mode : to select next track / previous “TUNE - / + “...
  • Page 3: Locations Of Controls

    PL585 / English Instruction Manual LOCATIONS OF CONTROLS Skip / Tuning button Stop / ENTER button MEM / CLK-ADJ button Left speaker FUNKTION knob USB socket 3.5 mm headphone jack LCD display Dust cover Play/Pause / SCAN button PLAY MODE / INFO button Right speaker “I/...
  • Page 4: Setting The Clock

    PL585 / English Instruction Manual SETTING THE CLOCK 1. Set unit in standby mode. 2. Press the “MEM / CLK-ADJ ” button (3) once, the display will start flashing. Press Skip/Tuning button (1) to select the appropriate area hour format(12hr/24hr) 3.
  • Page 5: Aux In Connection

    PL585 / English Instruction Manual Preset stations You can store up to total of 40 radio stations in the memory (20-FM/20-DAB). 1. Set to FM/DAB mode 2. Turn to the desired radio station by “manual ” or “ auto ” tuning method.
  • Page 6: Stop Mode

    PL585 / English Instruction Manual PLAYBACK OF MP3 SONG VIA USB STORAGE MEDIA Connecting The system is able to decode and playback all MP3 file which stored in the memory media with USB connecting port. Connecting the USB upside down or backwards could damage the audio system or the storage media.
  • Page 7 PL585 / English Instruction Manual  Repeat play You can listen the desired tracks or all track or folder repeatedly by this function.  Random play You can listen all the tracks or folder in a random order by this function Tracks programming Up to 20 tracks can be programmed for MP3 file and play in any order.
  • Page 8: More Features

    PL585 / English Instruction Manual FILE DELETE AT USB (BY REMOTE CONTROL) The system is able to erase the file stored inside the USB pen drive by following:- A) Single file delete 1. Playback the USB sound track which desired to delete, press and hold the “ DELETE “ button for 3 seconds and the LCD display (6) will show ‘DEL OK’...
  • Page 9: Technical Specifications

    PL585 / English Instruction Manual Active/de-active timer function To cancel alarm function by press again “ TIMER” button until the timer indicator “ ” disappear. Press again to active it and the time indicator “ ” will show on LCD display.
