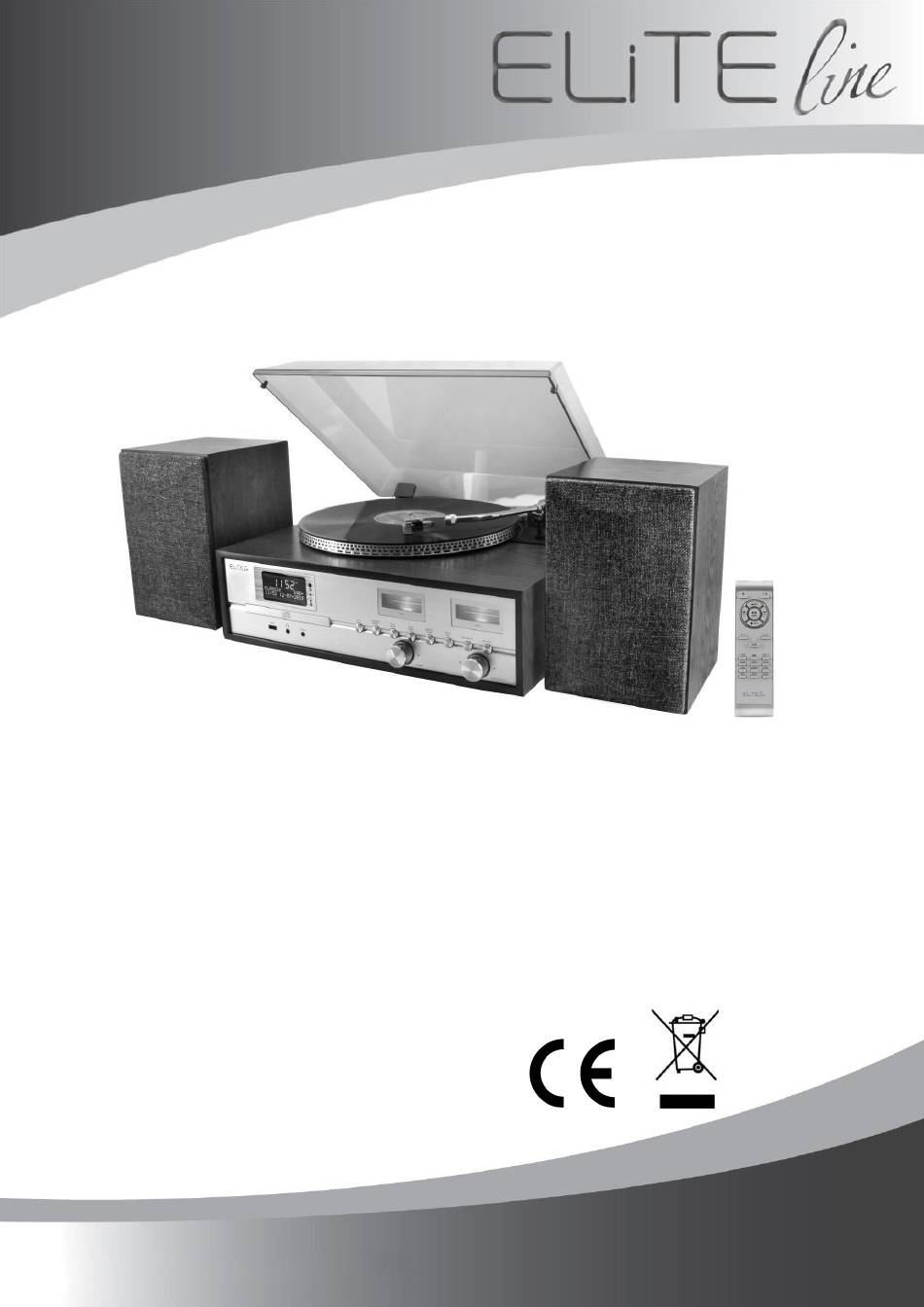

- Page 1 DEUTSCH ITALIANO ENGLISH DANSK FRANÇAIS NORSK NEDERLANDS SVENSKA Hersteller Wörlein GmbH Tel.: +49 9103/71670 Gewerbestrasse 12 Fax.: +49 9103/716712 D 90556 Cadolzburg Email. info@woerlein.com GERMANY Web: www.woerlein.com PL880...
- Page 2 Safety, Environmental and Setup Instructions Use the device in dry indoor environments only. ENVIRONMENTAL PROTECTION Do not dispose of this product with the normal household Protect the device from humidity. waste at the end of its life cycle. Return it to a collection ...
-
Page 3: Locations Of Controls

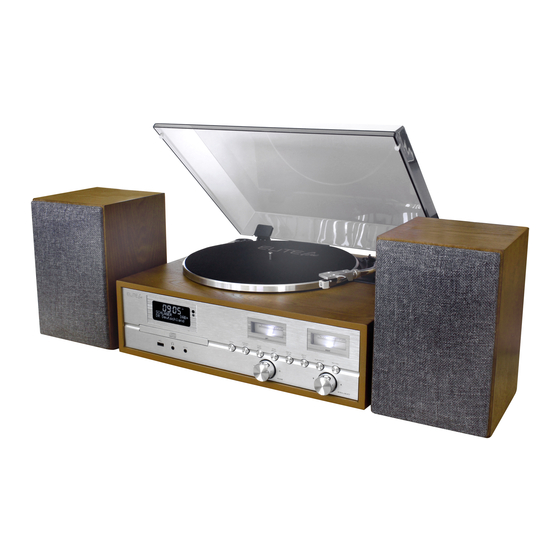

PL880 / English Instruction Manual LOCATIONS OF CONTROLS FRONT VIEW Dustcover PLAY/MENU button Turntable STOP/PRESET button Speaker DN/F-R/SCAN button USB socket UP/F-F/INFO button Headphone Socket PLAY-MODE button AUX-IN Socket RECORD button LCD display VOLUME knob CD door SELECT/ENTER knob OPEN/CLOSE button VU meter STANDBY/MODE button Remote Sensor... -
Page 4: Remote Control
PL880 / English Instruction Manual REMOTE CONTROL 26. RECORD 27. Open Close 28. EQ Sound settings 29. DN - Track backwards 30. P.MODE – Repeat / Random 31. VOL – Volume 32. TUNER/MENU – Tuning/Menu down 33. SCAN 34. INFO Information Power On/Off 36. -
Page 5: Getting Started
PL880 / English Instruction Manual GETTING STARTED POWER SOURCE This system is designed to operate on normal 230V 50Hz AC only. Attempting to operate from any other power source may cause damage to the system, and such damage is not covered by your warranty. -
Page 6: Dab Operation
PL880 / English Instruction Manual DAB OPERATION 1. Connect the FM / DAB antenna at the back of the unit. 2. Turn the system ‘on’ and press the “MODE” button to enter into DAB mode. The unit will scan the DAB station automatically till receive the DAB station. 3. -
Page 7: Compact Disc Care
PL880 / English Instruction Manual CD - MP3 / USB OPERATION COMPACT DISC CARE To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges. -
Page 8: Bluetooth Function
PL880 / English Instruction Manual MEMORY FUNCTION IN CD/MP3 MODE 1. In stop mode, press the “PROGRAM” button on the remote control to enter PROGRAM mode, ‘DISC’ ‘MEM’ P00’ ‘T01’ will show on the screen. 2. Press the “UP/F.F.” button or “DN/F.R” button to select your desired track and then press the “PROGRAM”... - Page 9 PL880 / English Instruction Manual Speed alignment using the Pitch adjustment The pitch adjust control is made adjust the turntable speed lightly. To check if the speed of a record that is playing is correct, and if it needs to be adjusted, do the following: During playback of for instance a 45rpm record, look at the appropriate strip of strobe calibration dots on the edge of the turntable platter.
-
Page 10: Playing Records
PL880 / English Instruction Manual ADJUST THE WEIGHT OF THE STYLUS 1. Slide in the counter weight completely into the rear of the tone arm until it reach the end , turn it clockwise until it click with pit inside. 2. -
Page 11: Usb Recording
PL880 / English Instruction Manual USB RECORDING 1. CD RECORDING Recording one track: 1. Plug USB drive into USB socket. 2. During the playing mode the desired track, press the “RECORD” button one time, “CHECK” will show on the display and then “REC USB”. “USB” is flashing. 3. -
Page 12: Aux In Operation
PL880 / English Instruction Manual NOTE: Press the “INFO” button of the remote control during Bluetooth/Aux or Phono-Recording, you can select the recording bit rate from 32 – 256kHz. Press “UP/F.F” or “DN/F.R” to choose the desired bit rate and press “INFO” button again to confirm. ... -
Page 13: Factory Reset
PL880 / English Instruction Manual SETTINGS LANGUAGE SETTING During FM or DAB playing mode, press “MENU” button and then press “TUNER MENU +” or “TUNER MENU –“ to choose ‘SYSTEM’ , press “ENTER” button to confirm. Press “TUNER MENU +” or “TUNER MENU –“ to choose ‘Language’ and press “ENTER” to confirm enter into “LANGUAGE”... - Page 14 Hiermit bestätigt Wörlein GmbH, dass sich dieses Gerät Härmed Wörlein GmbH deklarerar att denna enhet är i Übereinstimmung grundlegenden överensstämmelse med de grundläggande kraven och Anforderungen übrigen einschlägigen andra relevanta bestämmelser i direktiv 2014/53/EU. Bestimmungen der Richtlinie 2014/53/EU befindet. En kopia av försäkran om överensstämmelse kan erhållas Eine Kopie der Konformitätserklärung kann unter på...
