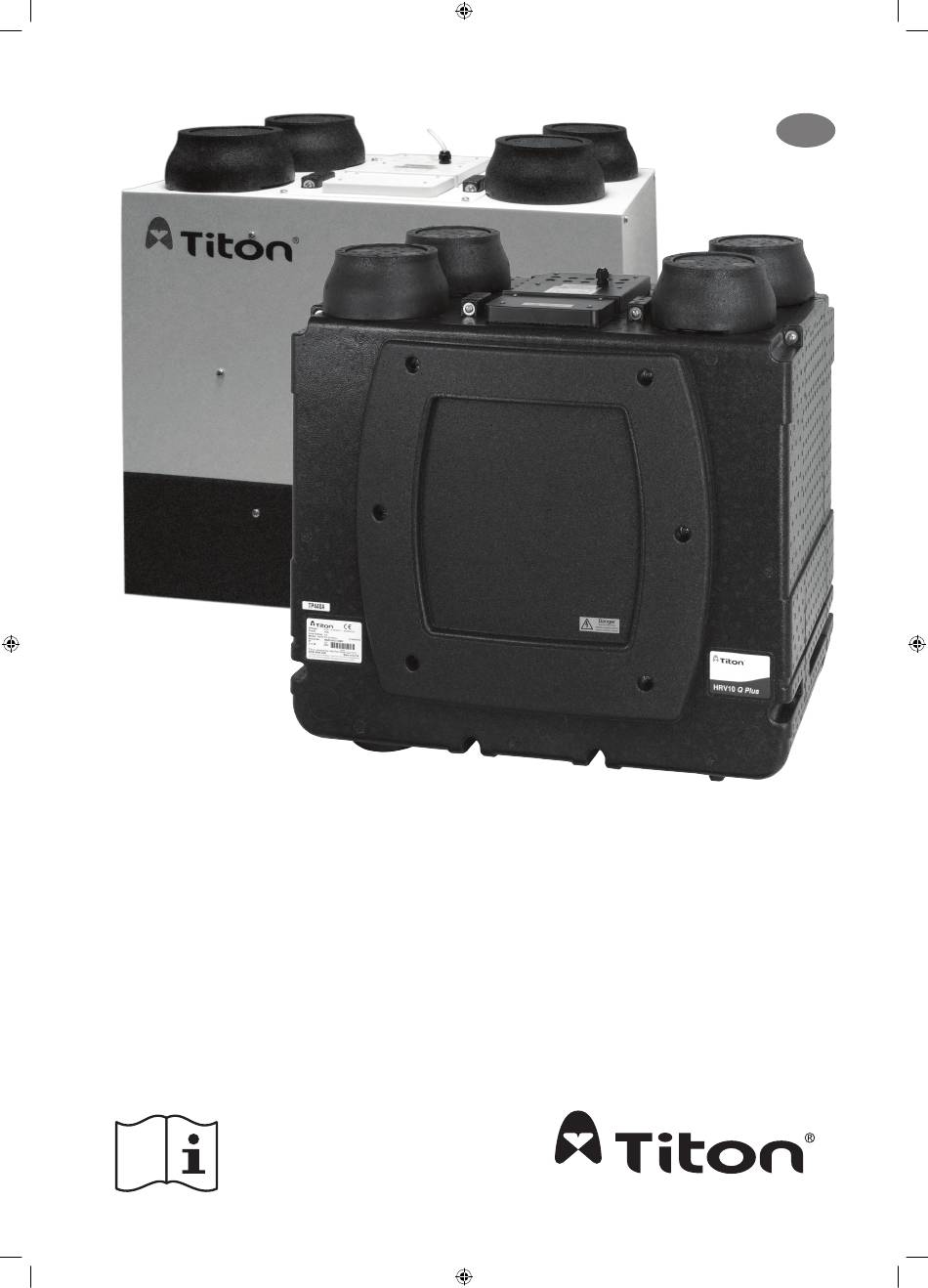

- Page 1 HRV10 Q Plus TP480B HRV10M Q Plus TP481B Product Manual Heat Recovery Ventilation Units ventilation systems...
-
Page 2: Table Of Contents
Important Information 3 Titon Recommend: 4... -
Page 3: Important Information
Warnings, Safety Information and Guidance Important Information Important: read these instructions fully before the installation of this appliance 1. Installation of the appliance and accessories must be carried out by a qualified and suitable competent person and be carried out in clean, dry conditions where dust and humidity are at minimal levels. -
Page 4: Titon Recommend
Titon Recommend: Ø150mm ducting is used to connect the HRV. A short piece of flexible ducting, approximately 200mm long is used to connect the unit to the ducting system. Any flexible ducting used must be pulled taught. A minimum distance of 200mm between the HRV unit and any sharp bends in duct work. Ducting should be insulated where it passes through unheated areas and voids with the equivalent of at least 25 mm of a material having a thermal conductivity of ≤0.04 W/(m.K) to reduce the possibility of condensation forming. -
Page 5: Product Overview

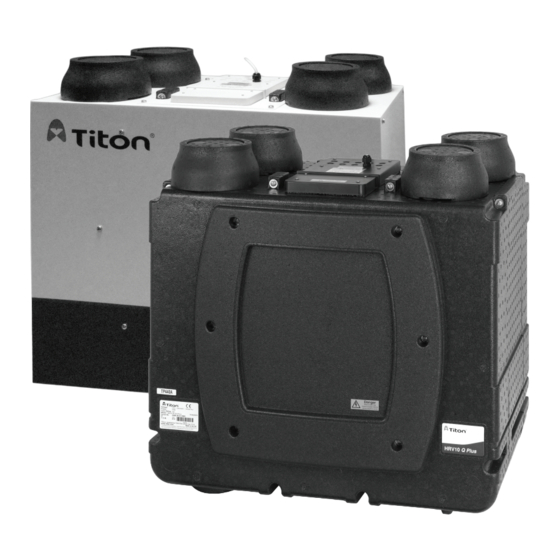

Product Overview Product Description The HRV10 Q Plus and HRV10M Q Plus are Mechanical Ventilation with Heat Recovery (MVHR) units. They are designed for the energy efficient ventilation of dwellings. The units are designed for continuous ventilation, exhausting stale moist air from bathrooms, toilets, kitchen and utility rooms. -
Page 6: Dimensions
Dimensions Service Void DO NOT ‘BOX IN’ UNIT HRV10 Q Plus HRV10M Q Plus... -
Page 7: Installation
Read and observe the guidance & safety notices listed in Warnings, Safety Information and Guidance on page 3. Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom. -
Page 8: Condensate Drain
Should be installed to have a minimum 5° fall from the unit. ƒ Titon recommend the use of a diaphragm type waste valve in place of a conventional ‘wet’ trap which could dry out. Such as, BRE certificate no. 042/97 ‘Hepworth HepvO® Hygienic self sealing plastic waste valve’ recommended as an alternative to traditional U-Traps. -
Page 9: Ducting Connections
Read and observe the Warnings, Safety Information and Guidance on page 3. Titon recommend the use of guidance given in the Domestic Ventilation Compliance Guide 2010 Edition ISBN-978 1 85946 378 9 and Approved Document Part F 2010 ISBN-978 1 85946 370 3 for all installations in the United Kingdom. -
Page 10: Wiring Diagrams
Wiring Diagrams Fuse 2 Pole Isolator Supply wiring Ref EE167 The Switched Live (LS1, LS2) Boost(s) must be supplied via the same circuit as used to power the unit. A 3 (LS1 only) or 4 (LS1 &LS2) pole local isolator must be installed. -
Page 11: Wiring Diagrams
Wiring Diagrams Switch Defaults SW1 - Volt Free - Kitchen Boost. SW2 - Volt Free - Wet Room Boost. SW3 - Volt Free - SUMMERboost Control. Volt Free switch inputs Ref EE163 Switch Defaults LS1 - 230V AC - Kitchen Boost LS2 - 230V AC - Wet Room Boost LIVE switch inputs Ref EE163... -
Page 12: Wiring Diagrams
Wiring Diagrams If sensors are tted with switches ensure they are switched to VDC Room Sensor 2 (default TP541 RSC Room CO Sensor) Room Sensor 1 (default TP542 RSH Room Humidity Sensor) Additional Options: TP540 RSQ Room Air Quality Sensor TP543 RST Room Temperature Sensor 0-10V Sensor connections Ref EE161 Switch Positions TP508 Three Position Rotary Switch... -
Page 13: Wiring Diagrams
Wiring Diagrams Any of these switch arrangements can be used in switch inputs SW1 to SW3 depending on their con guration and the type of MVHR. 1 2 3 Volt-free boost switching of MVHR using single- TP506 Latching Summer Mode switch / pole switches TP502, TP503, TP507 and / or TP522 Latching SUMMERboost®... -
Page 14: Duct Heater
Duct Heater Using the factory fitted PCB it is possible to control an external mains operated duct heater to pre-warm the incoming fresh air supply. During periods of cold weather, this reduces the possibility of ice build-up within the unit by raising the temperature of the incoming supply air. -
Page 15: Connection To Mains
The standard design is IP43. It must not be possible to switch on the power to the element unless the HRV10 Q Plus is operating. An all phase breaker or a double pole switch with a contact gap of at least 3mm must be included in the fixed installation. -
Page 16: Commissioning
Commissioning Once installation of the ducting, HRV and aurastat® is complete the ventilation system will need to be commissioned and setup. See the aurastat® HRV Controller Product Manual for how to change fan speeds and other settings. aurastat® HRV Controller Product Manual... -
Page 17: Maintenance
The unit may be supplied with multiple live supply if a Duct Heater is fitted or uses switched live for Boost Speed control. HRV10 Q Plus Front Cover Removal ISOLATE the unit from mains power supply and allow sufficient time for all moving parts to stop. -
Page 18: Filter Replacement
Filters should be replaced at least annually, or more regularly dependent on environmental conditions. The aurastat® will indicate filter change required in line with the Filter Change Interval setting. Replacement Filters are available from Titon Direct. www.titondirect.co.uk G4 Filters Set... -
Page 19: Service Record
Service Record Serviced By Company Date Notes... - Page 20 Information Pack and used as a service record. Installed by: MARKETING DIVISION International House, Peartree Road, Stanway, Colchester, Essex CO3 0JL Tel: +44 (0) 1206 713800 Fax: +44 (0) 1206 543126 Email: ventsales@titon.co.uk Web: www.titon.com ©2015 TITON DO 5181 Iss02...
