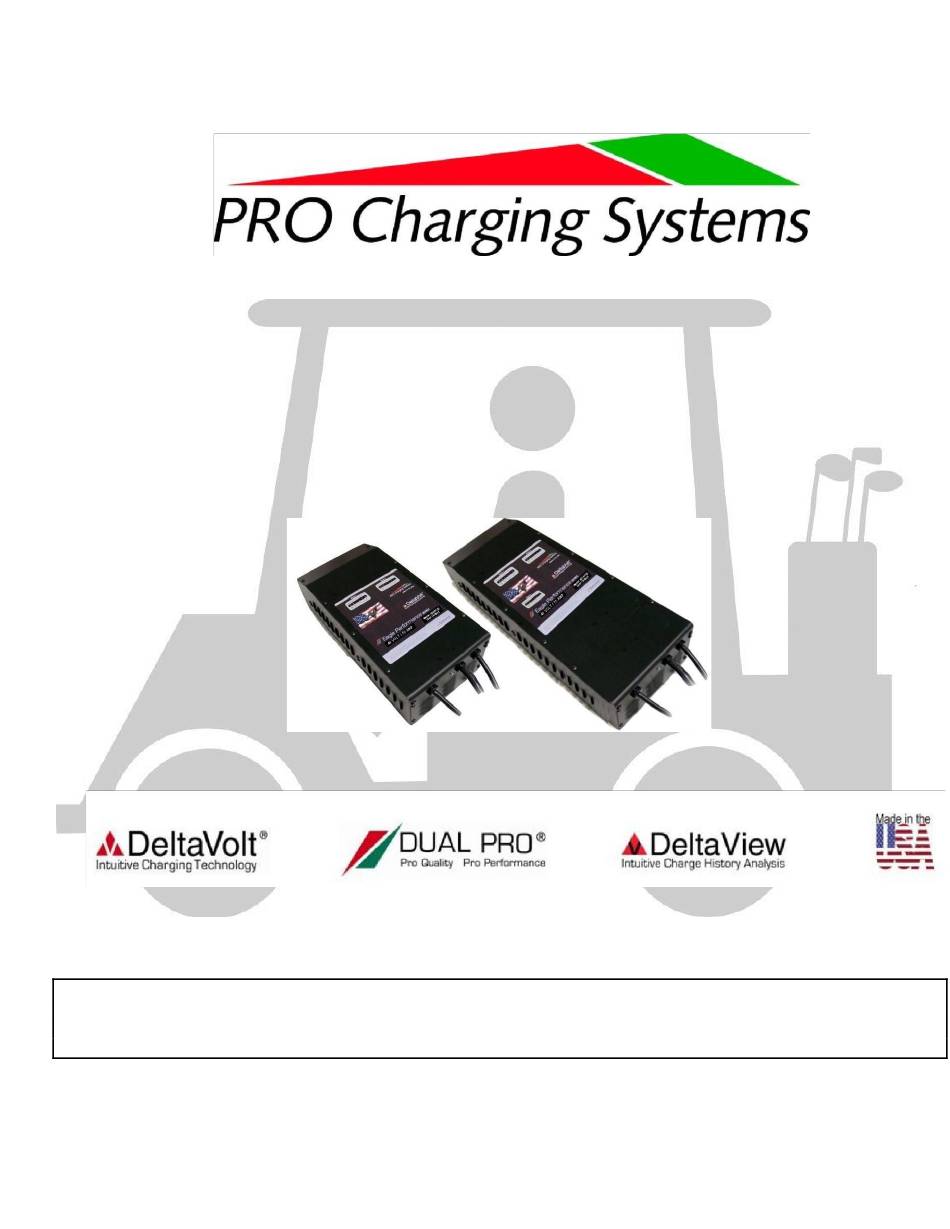

EAGLE PERFORMANCE SERIES HIGH OUTPUT GOLF CART CHARGING SYSTEMS
Safety, Installation and Operating Instructions
Manual for the Following Battery Charger Models:
_______________________________________
IMPORTANT NOTICE:
Please save and read these safety, operating and installation instructions before installing or applying AC power to
your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service
questions (615.471.5300).
Instructions importantes concernant la sécurité
4850OB, 4875OB
Pro Charging Systems, LLC
TN 37086-3539
LaVergne,
100620-70351
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pro Charging Systems 4850OB
Summary of Contents for Pro Charging Systems 4850OB
- Page 1 IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service questions (615.471.5300). Pro Charging Systems, LLC...
- Page 2 INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGER MODELS: MODEL AC Input (Single Phase) DC Output Battery System Battery Capacity i4850OB 230 VAC / 60 HZ 20 AMPS (MAX) 50 ADC @ 48 VDC 48 VOLT, 24 CELL 150-220 AH (20 HR) I4875OB 230 VAC / 60 HZ 30 AMPS (MAX) 75 ADC @ 48 VDC...
- Page 3 PERSONAL SAFETY PRECAUTIONS Always read all instructions before using your charger! 1. Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, eyes, or other surfaces. If battery acid contacts skin or clothing, wash immediately with soap and water.
- Page 4 Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. 615.471.5300 Approved accessories are available from Pro Charging Systems ( SAVE THESE INSTRUCTIONS! INSTALLATION AND PREPARATION...
- Page 5 Note: Extension cords should be industrial grade/heavy duty UL approved and grounded. Check extension cord before use for damage, bent prongs and cuts. Replace if damaged. Connect the extension cord to the charger; then proceed to plug the extension cord to the GFCI protected (Ground Fault Circuit Interrupt) outlet.
- Page 6 Never place the charger directly above or below the battery being charged; gases or fluids from the battery will corrode and damage the charger. Locate the charger as far away from the battery as DC cables permit. Ne jamais placer le chargeur directment sous la batterie à charger ou audessus de cette dernière. Les gaz ou les fluids qui sèchappent de la batterie peuvent entrainer la corrosion du chargeur ou l’endommager.
- Page 7 The green LED is illuminated whenever the charge cycle is complete and the internal circuitry has determined the batteries to be fully charged. The green LED will blink during the finishing stage of the charge cycle. After the completion of the charge cycle, the green LED will remain on steady during the float-maintenance stage.
- Page 8 LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for three years (unless the charger is used outside of the USA or the charger has a part number with the RM designation) from the date of retail purchase against defective materials and/or workmanship.
