Safety, Installation and Operating Instructions
IMPORTANT NOTICE:
Please save and read these safety, operating and installation instructions before installing or applying AC power
to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or
service questions (615.471.5300).
importantes concernant la sécurité

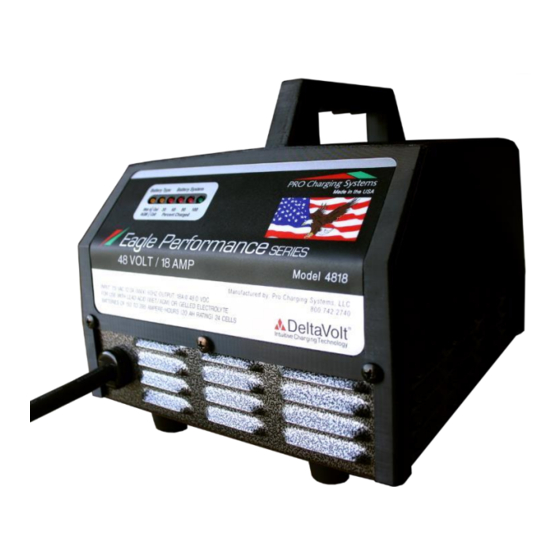

Manual for the Following Battery Charger Models:
2425LITH, 2425OBLITH, 4818LITH, 4818OBLITH
Pro Charging Systems, LLC
LaVergne, TN 37086-3539
Instructions
7212LITH
,
070820-70353
Advertisement
Table of Contents
Related Manuals for Pro Charging Systems 2425LITH
Summary of Contents for Pro Charging Systems 2425LITH
- Page 1 IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service questions (615.471.5300). Pro Charging Systems, LLC...
-
Page 2: Table Of Contents
INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGER MODELS: MODEL AC SUPPLY DC Output Battery System Battery Capacity 60 AH – 240 AH 2425LITH, 2425OBLITH 120 volts, 60Hertz 25 ADC @ 24V-GC2 24VDC 30 AH – 120 AH 4818LITH, 4818OBLITH 120 volts, 60Hertz... - Page 3 Always read all instructions before using your charger! Wear complete eye protection and clothing protection. Avoid touching eyes while working near battery. Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, eyes, or other surfaces. If battery acid contacts skin or clothing, wash immediately with soap and water.
-
Page 4: Installation And Preparation
Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. 615.471.5300 Approved accessories are available from Pro Charging Systems ( CAUTION: To reduce the risk of fire, use only on circuits provided with 15 amperes branch circuit protection at 100... -
Page 5: General Operation
Note: Extension cords should be industrial grade/heavy duty UL approved and grounded. Check extension cord before use for damage, bent prongs and cuts. Replace if damaged. Connect the extension cord to the charger; then proceed to plug the extension cord to the GFCI protected (Ground Fault Circuit Interrupt) outlet. -
Page 6: Charging Indications
Prendre connaissance des measures de précaution spécifiés par le fabricant de la batterie, p. ex., vérifier s’il faut enlever les bouchons des cellules lors du chargement de la batterie, et les taux de chargement recommandés. Never place the charger directly above or below the battery being charged; gases or fluids from the battery will corrode and damage the charger. -
Page 7: Troubleshooting
The green LED is illuminated whenever the charge cycle is complete and the internal circuitry has determined the batteries to be fully charged. After the completion of the charge cycle, the green LED will remain on. Your system provides an auto reset stage every 30 days if left plugged in to AC. In addition, for Li Only setting, unit will reset every 48 hours in to replace any battery capacity lost due to internal cell balancing. -
Page 8: Limited Warranty Information
Note: Disconnecting and reconnecting the AC power supply cord will reset the charger. LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for three years (unless the charger is used in a Restricted Market) from the date of retail purchase against defective materials and/or workmanship.
