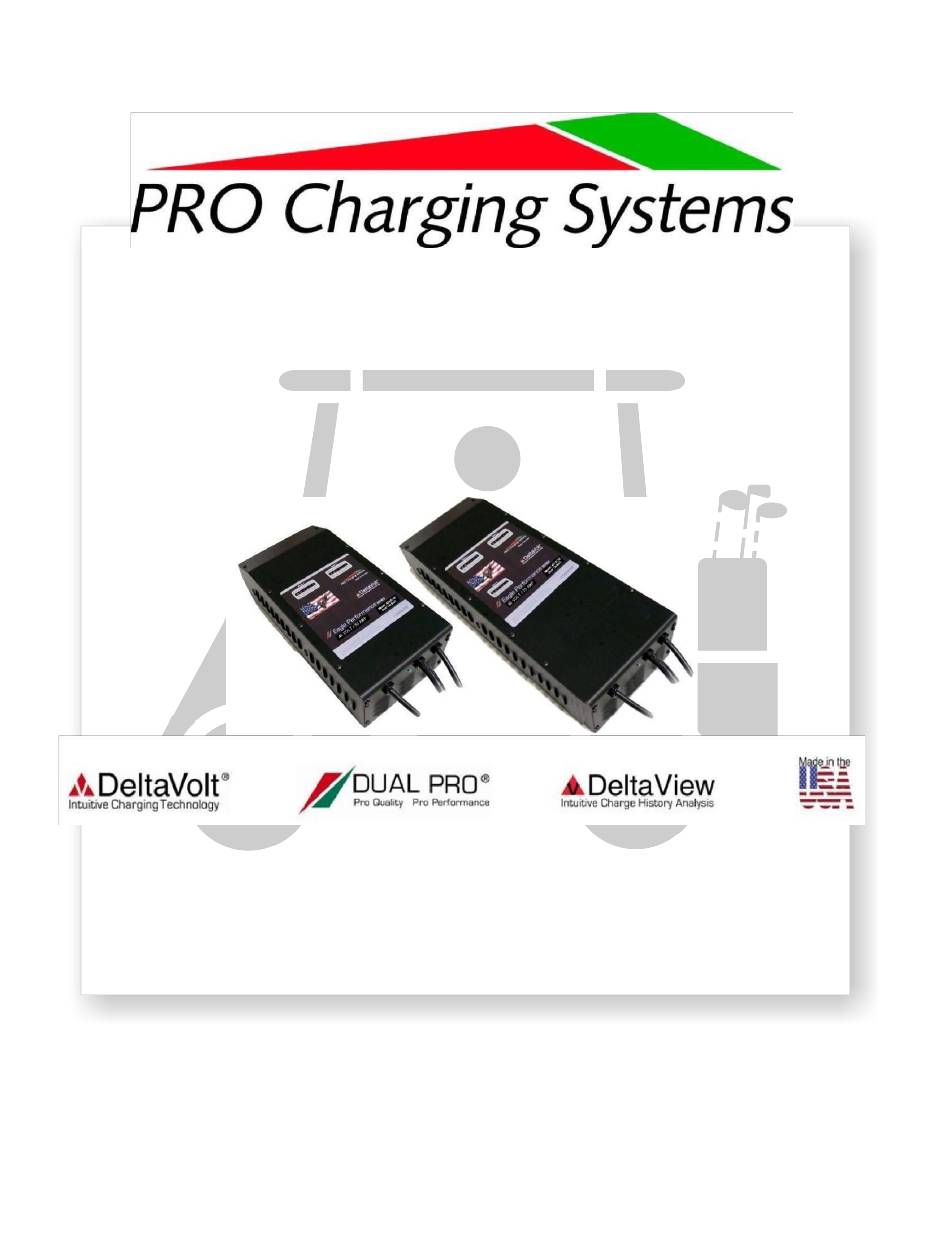

EAGLE PERFORMANCE SERIES HIGH OUTPUT GOLF CART CHARGING SYSTEMS
Safety, Installation and Operating Instructions
Instructions importantes concernant la sécurité
Manual for the Following Battery Charger Models:
1250OB, 1250OB230, 1275OB, 4850OB, 4875OB, 4875OB480
IMPORTANT NOTICE:
Please save and read these safety, operating and installation instructions before installing or applying AC power to
your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service
questions (615.471.5300).
Pro Charging Systems, LLC
LaVergne, TN 37086-3539
052422-70351
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pro Charging Systems 1250OB230
Summary of Contents for Pro Charging Systems 1250OB230
- Page 1 IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service questions (615.471.5300). Pro Charging Systems, LLC...
- Page 2 Battery Capacity 1250OB 115VAC / 60 HZ 11 AMPS 50 ADC@ 12 VDC 12 VOLT, 6 CELL 150-220AH (20 HR) 1250OB230 230 VAC / 60 HZ 7 AMPS 50 ADC @ 12 VDC 12 VOLT, 6 CELL 150-220AH (20 HR) 1275OB...
- Page 3 Any part that is damaged should be properly repaired or replaced by a qualified technician. Do not use the charger if any part does not operate properly. Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. Approved accessories are available from Pro Charging Systems (615.471.5300).
- Page 4 SAVE THESE INSTRUCTIONS! INSTALLATION AND PREPARATION To reduce risk of battery explosion, follow these instructions, those published by the battery manufacturer, and by the manufacturer of any equipment that you intend to use in the vicinity of battery. Review all cautionary markings on these products and on the engine. Pour réduire le risque d’explosion, lire ces instructions et celles qui figurent sur la batterie.
- Page 5 DO NOT attempt to attach a charger to a battery pack if the output of the charger does not match the battery pack voltage. Example: Model i-3625 is a 36 volt output charger and is only usable on 36 volt battery systems. Charger and battery damage can occur.
- Page 6 Working in the vicinity of a lead-acid battery is dangerous. Batteries generate explosive gases during normal operation. For this reason, it is of the utmost importance that prior to each use of your charger, you read and follow the instructions provided exactly. Il est dangereux de travailler a proximité...
- Page 7 The green LED is illuminated whenever the charge cycle is complete, and the internal circuitry has determined the batteries to be fully charged. The green LED will blink during the finishing stage of the charge cycle. After the completion of the charge cycle, the green LED will remain on steady during the float-maintenance stage.
- Page 8 Note: Disconnecting and reconnecting the AC power supply cord will reset the charger. LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for 18 months (including part numbers with the RM designation*) from the date of retail purchase against defective materials and/or workmanship.
