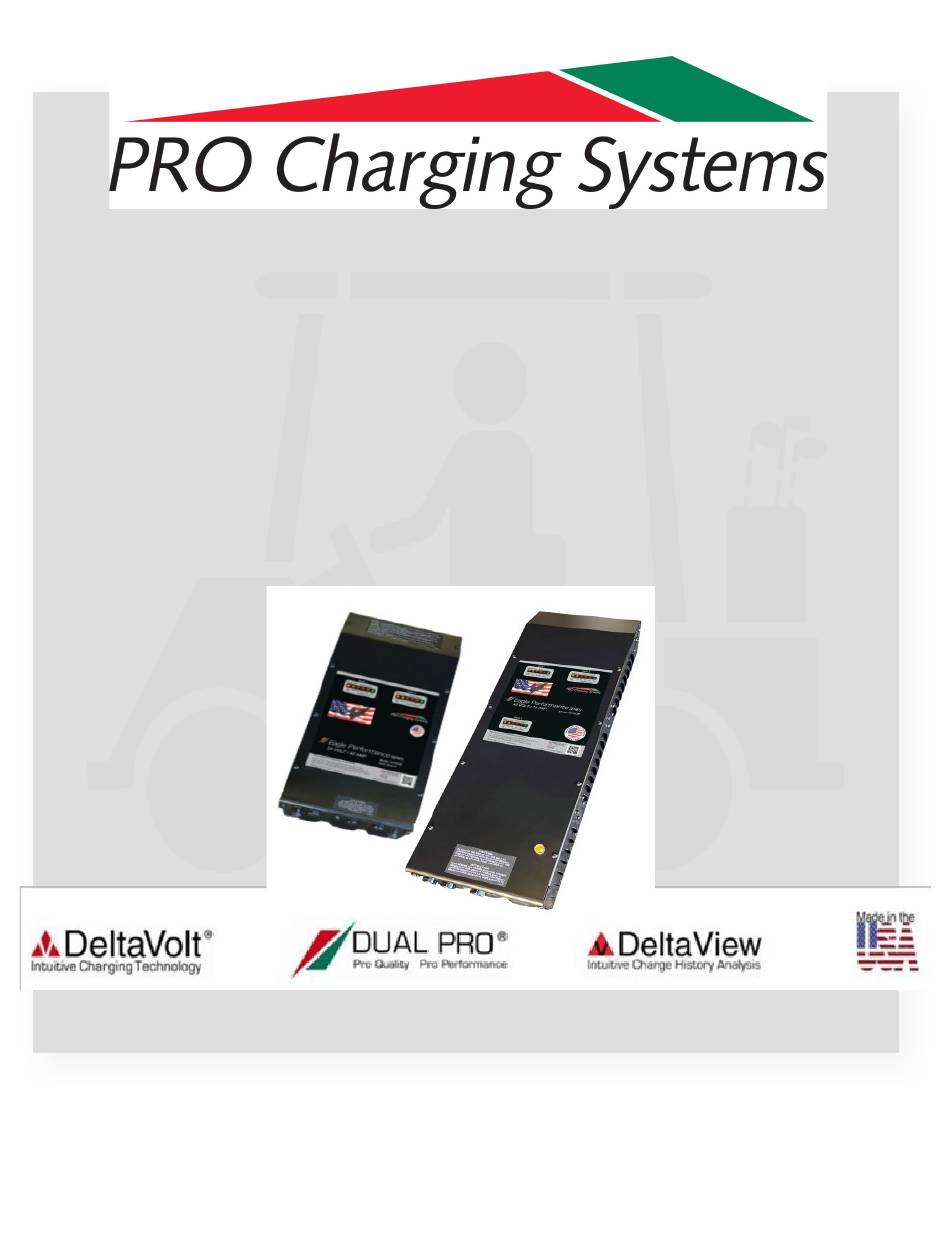

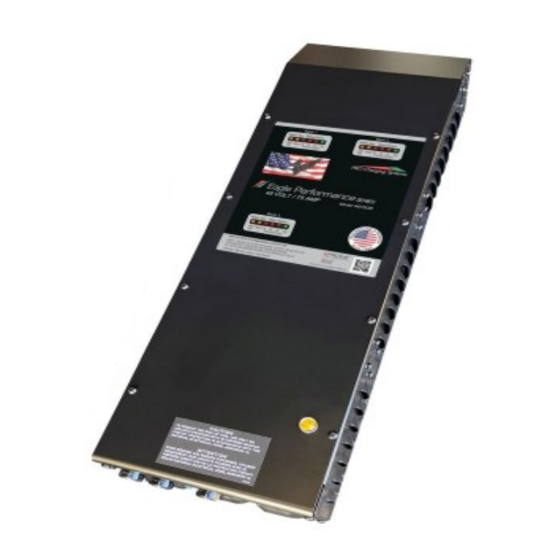

EAGLE PERFORMANCE SERIES
HIGH OUTPUT GOLF CART CHARGING SYSTEMS
Safety, Installation and Operating Instructions
Instructions importantes concernant la sécurité
Manual for the Following Battery Charger Models:
1250OB, 1250OB230, 1275OB230, 4850OB230, 4875OB230, 4875OB480
Please save and read these safety, operating and installation instructions before installing or applying AC
power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, in-
stallation, or service questions (615.471.5300).
Pro Charging Systems, LLC
022924-70351
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Pro Charging Systems EAGLE PERFORMANCE Series
Summary of Contents for Pro Charging Systems EAGLE PERFORMANCE Series
- Page 1 1250OB, 1250OB230, 1275OB230, 4850OB230, 4875OB230, 4875OB480 Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, in- stallation, or service questions (615.471.5300).
-
Page 2: Table Of Contents
INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGER MODELS: MODEL Ac Input DC Output Battery System Battery Capacity 1250OB 115VAC / 60HZ 11 AMPS 50ADC @ 12VDC 12V, 6 Cells 150-220AH (20 HR) 1250OB230 230VAC / 60HZ 7 AMPS 50ADC @ 12VDC 12V, 6 Cells 150-220AH (20 HR) 1275OB230... - Page 3 Coin Cell Warning Remove and immediately recycle or dispose of used batteries according to • local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate. Even used batteries my cause severe injury or death. •...
-
Page 4: Personal Safety Precautions
• Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. Approved accessories are available from Pro Charging Systems (615.471.5300). • For lithium charging, use only Lithium Iron Phosphate (LiFePO4) batteries provided with a Battery Management System (BMS) and tested and listed to the relevant standard as follows: UL2271, UL2580, or UL1973. -
Page 5: General Operation
RISK OF EXPLOSIVE GASES: WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. Batteries generate explosive gases during normal battery operation. For this reason, it is of utmost importance that prior to each use of your charger, you read this manual and follow the instructions exactly. Il est dangereux de travailler a proximité... - Page 6 Risk of electric shock! Do not touch uninsulated parts of the battery charger output connector, battery connector, or battery terminals. DO NOT disconnect the DC output electrical cord from the battery receptacle when the charger is on. The resulting arcing and burning of the plug and receptacle could cause the batteries to explode. If the charger must be stopped, first disconnect the AC power supply cord from its outlet, then discon- nect the charger DC output plug from the battery receptacle.
-
Page 7: Charging Indications
CHARGING INDICATIONS When your battery charging system is activated, the battery status indicator provides charging information utilizing three red LED indicators and one green LED indicator. Battery Type Indicators Two amber LED indicators are provided to display whether the default charging algorithm (Pro Volt lead acid) or one of the selectable algorithms (Spec) is in use. -
Page 8: Led Fault Code Indications
LED FAULT CODE INDICATIONS The microprocessor is constantly monitoring the charger circuitry and will both detect and display blinking LED indications if a fault is detected. The battery type LED will be OFF during a fault code condition. When first connected to DC (AC not connected), the LEDs will display one or more of the following: 1. The LEDs will flash the charger’s ID code (this is for PCS internal use only). -
Page 9: Limited Warranty Information
LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for 18 months (including part numbers with the RM designation*) from the date of retail purchase against defective materials and/or workmanship. CR designation refers to “Certified Reconditioned”...
