Safety, Installation and Operating Instructions
IMPORTANT NOTICE:
Please save and read these safety, operating and installation instructions before installing or applying AC power to
your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or
service questions (800.742.2740).

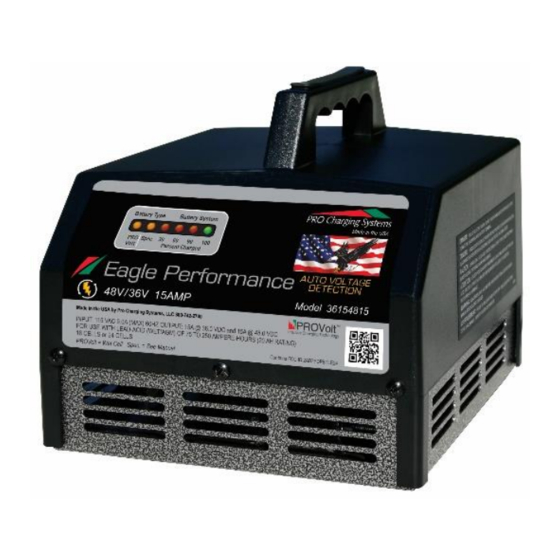

INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGER MODELS:
MODEL
I36154815
Instructions importantes concernant la sécurité
Manual for the Following Battery Charger Models:
Pro Charging Systems, LLC
LaVergne, TN 37086-3539
AC SUPPLY
15 amps @ 36VDC
120 volts, 60 Hertz
15 Amps @ 48VDC
i36154815
DC OUTPUT
Or
BATTERY
Battery Capacity
SYSTEM
36 volt, 18 cells
75-275 ah (20hr rate)
48 Volt, 24 cells
041321-70366
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pro Charging Systems i36154815
Summary of Contents for Pro Charging Systems i36154815
- Page 1 IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service questions (800.742.2740). Pro Charging Systems, LLC...
- Page 2 TABLE OF CONTENTS Important Safety Instructions……………………………………………………. Pages 2-3 Installation and Preparation ………………………………………………………Page 4 General Operation …………………………………………………………………Page 5 Charging Indications……………………………………………………………….Page 6 Automatic Battery Pack Voltage Selection………………………………………Page 6 Troubleshooting ……………………………………………………………………Page 7 LED Fault Code Indications …………………………………………………….. Page 7 Limited Warranty Information……………………………………………………. .Page 8 IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ...
- Page 3 Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. Approved accessories are available from Pro Charging Systems (800.742.2740). CAUTION: To reduce the risk of fire, use only on circuits provided with 15 amperes branch circuit protection at 115 VAC and 15 amperes branch circuit protection in accordance with the national electrical code, ANSI/NFPA 70 ATTENTION: Pour réduire le risque d'incendie, utilisez uniquement sur les circuits munis d'une protection de circuit...
- Page 4 SAVE THESE INSTRUCTIONS! INSTALLATION AND PREPARATION Important note: if the PCS charger has a model number containing the letters OB, it not intended to be used as a stationary device. To reduce risk of battery explosion, follow these instructions, those published by the battery manufacturer, and by the manufacturer of any equipment that you intend to use in the vicinity of battery.
- Page 5 GENERAL OPERATION Use charger for charging a LEAD-ACID (lead acid, sealed lead acid, gel cell and AGM) battery only. It is not intended to supply power to a low voltage electrical system other than in a starter-motor application. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances.
- Page 6 If it is necessary to remove battery from vehicle to charge it, always remove grounded terminal from battery first. Make sure all accesproes in the vehicle are off in order to prevent an arc. S’il est nécessaire de retirer la batterie du véhicule pour la charger, toujours d'ébrancher la borne de mise à la masse en premier.
- Page 7 TROUBLESHOOTING PROBLEM: No LED indicators illuminated on battery status indicator. Solution Sequence: 1. Confirm that current is being delivered to the charger. Use a meter or test light to check the AC power supply from its source through all connecting points up to the charger. 2.
- Page 8 LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for two years (unless the charger is used in a Restricted Market) from the date of retail purchase against defective materials and/or workmanship. Restricted markets include markets outside of the USA, Rental applications and Heavy Industrial applications.
