Safety, Installation and Operating Instructions
Manual for the Following Battery Charger Models:
IMPORTANT NOTICE:
Please save and read these safety, operating and installation instructions before installing or applying AC power to
your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or
service questions (
615.471.5300
INSTRUCTIONS FOR THE FOLLOWING BATTERY CHARGER MODELS:
MODEL
IS2412
100-240 volts, 50-60 Hertz
importantes concernant la sécurité

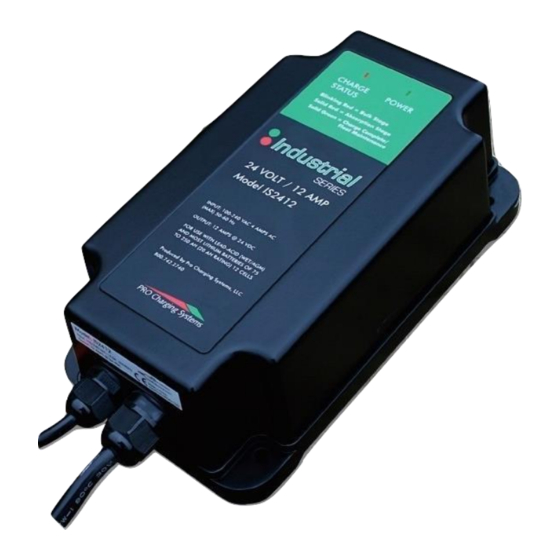

IS1220 / IS2412
).
Pro Charging Systems, LLC
LaVergne, TN 37086-3539
AC SUPPLY
DC Output
Battery System
12 amps @
24 volt, 12 cell
24v
Instructions
022619-70343
Battery Capacity
75-250 ah(20hr rating)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pro Charging Systems IS1220
Summary of Contents for Pro Charging Systems IS1220
- Page 1 022619-70343 IMPORTANT NOTICE: Please save and read these safety, operating and installation instructions before installing or applying AC power to your Pro Charging Systems (PCS) charger. Contact technical support at PCS with any product, installation, or service questions ( 615.471.5300...
- Page 2 TABLE OF CONTENTS Important Safety Instructions……………………………………………………. Pages 2-3 Installation and Preparation ………………………………………………………Page 4 General Operation …………………………………………………………………Pages 4-5 Charging Indications……………………………………………………………….Page 6 Troubleshooting ……………………………………………………………………Page 6 LED Fault Code Indications ……………………………………………………..Page 7 Limited Warranty Information……………………………………………………..Page 7 Additional Products……………………………………………………………….. Page 8 IMPORTANT SAFETY INSTRUCTIONS INSTRUCTIONS IMPORTANTES CONCERNANT LA SÉCURITÉ...
- Page 3 Any part that is damaged should be properly repaired or replaced by a qualified technician. Do not use the charger if any part does not operate properly. Replacement parts and accessories. When maintaining, only use accessories intended for use with this charger. Approved accessories are available from Pro Charging Systems (615.471.5300).
- Page 4 CAUTION: To reduce the risk of fire, use only on circuits provided with 15 amperes branch circuit protection at 100 VAC and 115 VAC and 10 amperes branch circuit protection at 230 VAC in accordance with the national electrical code, ANSI/NFPA 70 ATTENTION: Pour réduire le risque d'incendie, utilisez uniquement sur les circuits munis d'une protection de circuit 15 ampères de branche à...
- Page 5 GENERAL OPERATION Use charger for charging a LEAD-ACID (lead acid, sealed lead acid, gel cell and AGM) battery only. It is not intended to supply power to a low voltage electrical system other than in a starter-motor application. Do not use battery charger for charging dry-cell batteries that are commonly used with home appliances.
- Page 6 If it is necessary to remove battery from vehicle to charge it, always remove grounded terminal from battery first. Make sure all accesproes in the vehicle are off in order to prevent an arc. S’il est nécessaire de retirer la batterie du véhicule pour la charger, toujours d'ébrancher la borne de mise à la masse en premier.
- Page 7 2. Call technical support for further assistance (615.471.5300). LIMITED WARRANTY Pro Charging Systems, LLC (PCS) makes this Limited Warranty only to the original retail purchaser. PCS warrants this battery charger for two years (unless the charger is used in a Restricted Market) from the date of retail purchase against defective materials and/or workmanship.
