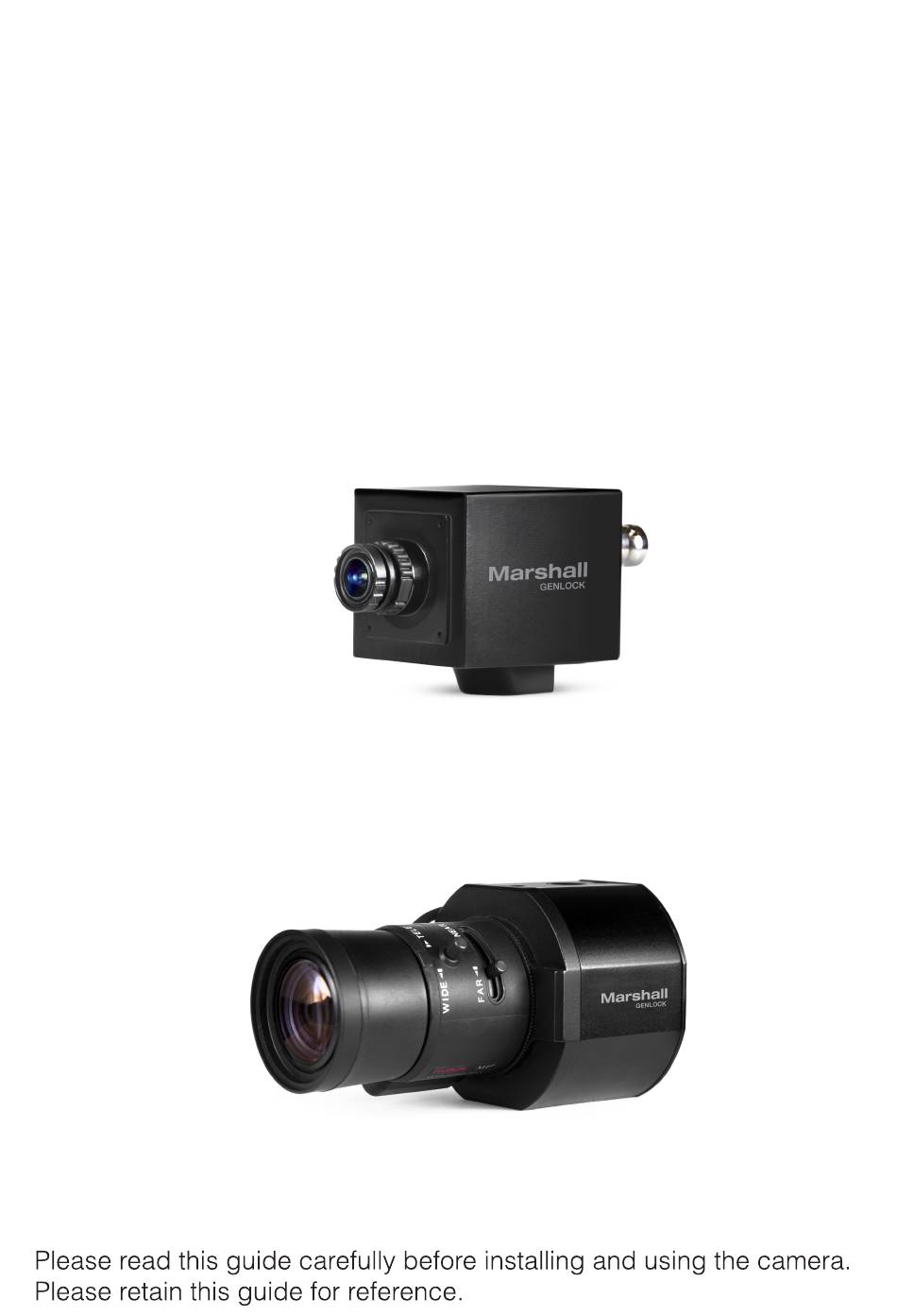

- Page 1 Marshall Electronics Operation Manual Full-HD Miniature GENLOCK POV Cameras CV565-MGB CV365-CGB...
-
Page 2: Menu Structure
MENU STRUCTURE SETUP SUB MENU SUB MENU LENS DC IRIS AUTO PUSH CONTROL COLOR TEMPERATURE MANUAL RED GAIN BLUE GAIN BRIGHTNESS 0~20 AGC LIMIT 0~20 AUTO AE CONTROL (EXPOSURE) SHUTTER MANUAL FLICKERLESS DSS (SENS-UP) OFF, x2~64 BACK LIGHT SPOT BACK LIGHT LOW, MIDDLE, HIGH LEVEL ECLIPSE... - Page 3 MENU STRUCTURE SETUP SUB MENU SUB MENU MODE OFF, ON OUTPUT EN OFF, ON GENLOCK H-SYNC PHASE PHASE SET AUDIO LEVEL 0~143 AUDIO AGC OFF, ON AUDIO MIC AGC MAX 0~119 SAMPLE BITS 16, 20, 24, 32 BITS COLOR LEVEL 0~20 SHARPNESS 0~20...
- Page 4 OSD Joystick and Button IRIS POWER HDMI CV365 I/O Cable for CV-565/365 Used to access the menu and confirm selection. Used to move the cursor up. DOWN Used to move the cursor down LEFT Used to move the cursor to left and change the value. RIGHT Used to move the cursor to right and change the value.
- Page 5 LENS ESC, DC IRIS Select LENS using the UP or DOWN button. You can change between ESC and DC IRIS using the LEFT or RIGHT button. ESC: Manual IRIS Lens (Fixed IRIS lens) Shutter will automatically control exposure if SHUTTER is set as AUTO. DC IRIS: DC Auto IRIS Lens.
- Page 6 WB CONTROL AUTO, ATW, PUSH, MANUAL Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT button. AUTO: Controls the automatic adjustment of the light source's color temperature to 3,000°K ~ 8,000°K.
- Page 7 AE CONTROL BRIGHTNESS, AGC LIMIT SHUTTER, DSS Select AE CONTROL using the UP or DOWN button. You can select one sub-mode from BRIGHTNESS, AGC LIMIT, SHUTTER, and DSS using the UP or DOWN button. MENU AE CONTROL LENS BRIGHTNESS WB CONTROL MANUAL AGC LIMIT AE CONTROL...
- Page 8 BACK LIGHT WDR, BLC, SPOT Select BACK LIGHT using the UP or DOWN button and enter using SEL button. You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button. BACK LIGHT WDR: Enable user to view both object and background more clearly when background is too bright.
- Page 9 BACK LIGHT ACE, ECLIPSE Select BACK LIGHT using the UP or DOWN button and enter using SEL button. You can select one sub-mode from BACK LIGHT, ACE, and ECLIPSE using the UP or DOWN button. ACE: Brightness correction of the dark image area. Select the GAIN level from OFF, LOW, MIDDLE, and HIGH using the LEFT or RIGHT button.
- Page 10 DAY / NIGHT AUTO, COLOR, NIGHT Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, COLOR, and NIGHT using the UP or DOWN button. AUTO: The camera will stay in DAY in a normal environment, but will switch to NIGHT mode when ambient illumination falls below this pre-set level.
-
Page 11: Image Stabilizer
IMAGE STABILIZER RANGE, FILTER, AUTO C Select IMAGE STABILIZER using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode from RANGE, FILTER, and AUTO C using the UP or DOWN button. IMAGE STABILIZER: This function will reduce image blurriness due to vibrations caused by hand shake or Pan/Tilt operation. - Page 12 AUDIO MIC Select AUDIO MIC using the UP or DOWN button and enter ON using SEL button. You can select one sub-mode from AUDIO LEVEL, AUDIO AGC, AGC MAX, and SAMPLE BITS using the UP or DOWN button. AUDIO MIC: The audio input will be embedded on SDI and HDMI output. AUDIO LEVEL: Enabled when AUDIO AGC is set OFF.
- Page 13 GENLOCK MODE, OUTPUT EN H-SYNC PHASE, PHASE SET Select GENLOCK using the UP or DOWN button. You can select MODE, OUTPUT EN, H-SYNC PHASE, and PHASE SET using the UP or DOWN button. MENU GENLOCK LENS MODE WB CONTROL MANUAL OUTPUT EN AE CONTROL H-SYNC PHASE...
-
Page 14: Image Control
IMAGE CONTROL COLOR LEVEL, SHARPNESS MIRROR, FLIP Select IMAGE CONTROL using the UP or DOWN button. You can select COLOR LEVEL, SHARPNESS, MIRROR, AND FLIP using the UP or DOWN button. MENU IMAGE CONTROL LENS COLOR LEVEL WB CONTROL MANUAL SHARPNESS AE CONTROL MIRROR... - Page 15 IMAGE CONTROL D-ZOOM, DEFOG, DNR Select IMAGE CONTROL using the UP or DOWN button. You can select D-ZOOM, DEFOG, and DNR using the UP or DOWN button. MENU IMAGE CONTROL LENS COLOR LEVEL WB CONTROL MANUAL SHARPNESS AE CONTROL MIRROR BACK LIGHT FLIP DAY / NIGHT...
- Page 16 IMAGE CONTROL MOTION, SHADING, GAMMA Select IMAGE CONTROL using the UP or DOWN button. You can select MOTION, SHADING, and GAMMA using the UP or DOWN button. MOTION: This feature will observe the object movement by motion zone and sensit- ivity that are pre-set with sub menu.
- Page 17 IMAGE CONTROL FRAME RATE Select IMAGE CONTROL using the UP or DOWN button. You can select FRAME RATE using the UP or DOWN button. FRAME RATE: Change video output specification. Select the FRAME RATE using the LEFT or RIGHT button. Abailable Frame Rate are;...
-
Page 18: Display Control
DISPLAY CONTROL CAM VERSION CAM TITLE Select DISPLAY CONTROL using the UP or DOWN button. You can select CAM VERSION, CAM TITLE, PRIVACY, CAMERA ID, BAUD RATE, and LANGUAGE using the UP or DOWN button. CAM VERSION: Display the firmware version of the camera. CAMERA TITLE: The camera title can be entered and it will appear over the video output. - Page 19 DISPLAY CONTROL PRIVACY Select DISPLAY CONTROL using the UP or DOWN button. You can select PRIVACY using the UP or DOWN button. PRIVACY: Mask an area you want to hide on the screen. Select the mask number to modify using the LEFT or RIGHT button. MASK NO: Enable/Disable the mask display using the LEFT or RIGHT button.
- Page 20 DISPLAY CONTROL CAMERA ID, BAUDRATE LANGUAGE Select DISPLAY CONTROL using the UP or DOWN button. You can select CAMERA ID, BAUDRATE, and LANGUAGE using the UP or DOWN button. CAMERA ID: Select the camera ID number from 0~255. BAUDRATE: Set the baudrate of RS-485 communication (2400, 4800, 9600, 19200, 38400, 57600, 115200).
- Page 21 RESET RESET Select RESET using the UP or DOWN button. RESET: Reset the camera settings to the factory defaults or user setting value. MENU LENS WB CONTROL MANUAL AE CONTROL BACK LIGHT DAY / NIGHT AUTO IMAGE STABILIZER AUDIO MIC GENLOCK IMAGE CONTROL DISPLAY CONTROL...
- Page 22 EXIT Select EXIT using the UP or DOWN button. SAVE: Exit the setup after saving the setting value changes. MENU LENS WB CONTROL MANUAL AE CONTROL BACK LIGHT DAY / NIGHT AUTO IMAGE STABILIZER AUDIO MIC GENLOCK IMAGE CONTROL DISPLAY CONTROL RESET EXIT...
-
Page 23: Troubleshooting
TROUBLESHOOTING Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier. Problem Solutions a. Check that all connected devices are powered on. Nothing appears b. - Page 24 Marshall Electronics 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 Fax: 310-333-0688 www.LCDracks.com support@marshall-usa.com...
