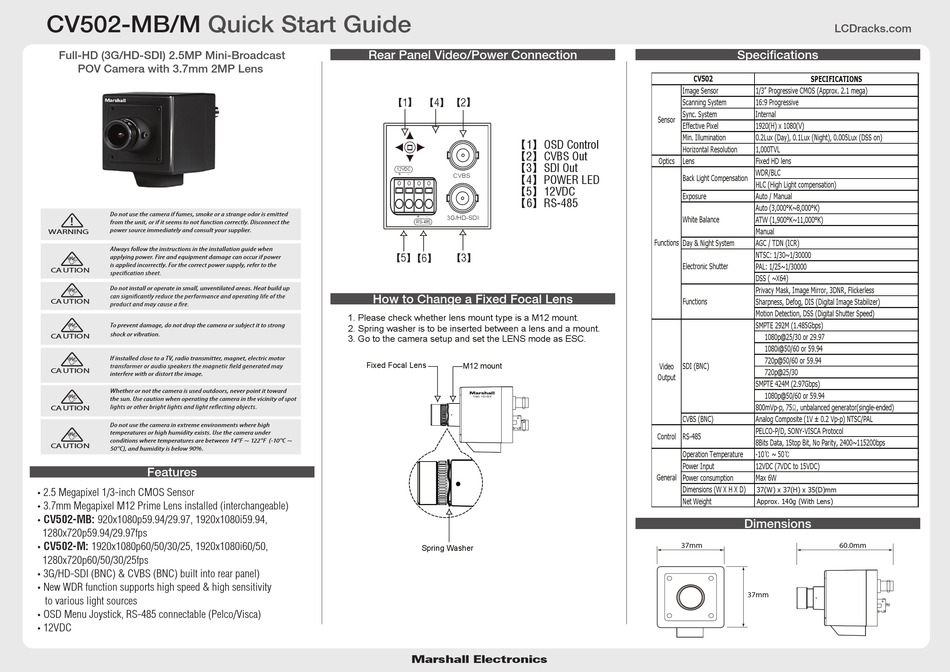

Marshall Electronics CV502-MB Quick Start Manual

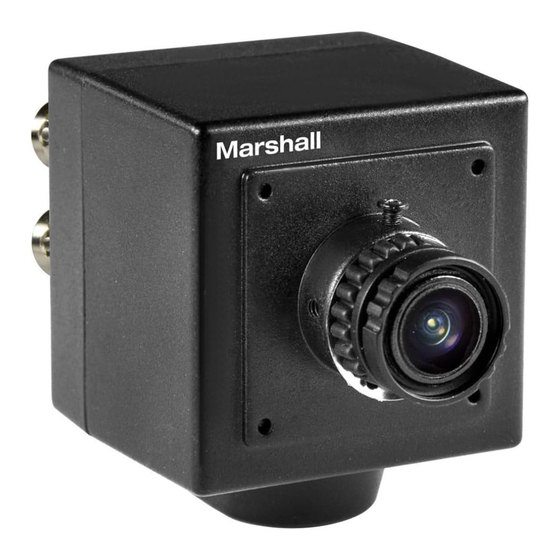

CV502-MB/M Quick Start Guide
Full-HD (3G/HD-SDI) 2.5MP Mini-Broadcast
POV Camera with 3.7mm 2MP Lens
Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power

is applied incorrectly. For the correct power supply, refer to the
CA UTION
Do not install or operate in small, unventilated areas. Heat build up

CA UTION
 To prevent damage, do not drop the camera or subject it to strong
shock or vibration.
CA UTION
If installed close to a TV, radio transmitter, magnet, electric motor

CA UTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward

the sun. Use caution when operating the camera in the vicinity of spot
CA UTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under

conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CA UTION
50°C), and humidity is below 90%.
Features
· 2.5 Megapixel 1/3-inch CMOS Sensor
· 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
· CV502-MB: 920x1080p59.94/29.97, 1920x1080i59.94,
1280x720p59.94/29.97fps
· CV502-M: 1920x1080p60/50/30/25, 1920x1080i60/50,
1280x720p60/50/30/25fps
· 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel)
· New WDR function supports high speed & high sensitivity
to various light sources
· OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
· 12VDC
Rear Panel Video/Power Connection
2】
【1】 【4】 【
【1】OSD Control
【2】CVBS Out
【3】SDI Out
12VDC
+ - CVBS
【4】POWER LED
【5】12VDC
【6】RS-485
+ - 3G/HD-SDI
RS-485
【5】 【6】 【3】
How to Change a Fixed Focal Lens
1. Please check whether lens mount type is a M12 mount.
2. Spring washer is to be inserted between a lens and a mount.
3. Go to the camera setup and set the LENS mode as ESC.
Fixed Focal Lens M12 mount
Spring Washer
Marshall Electronics
Specifications
CV502
SPECIFICATIONS
Image Sensor 1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System 16:9 Progressive
Sync. System Internal
Sensor
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (DSS on)
Horizontal Resolution 1,000TVL
Optics Lens Fixed HD lens
WDR/BLC
Back Light Compensation
HLC (High Light compensation)
Exposure Auto / Manual
Auto (3,000°K~8,000°K)
White Balance
ATW (1,900°K~11,000°K)
Manual
Functions Day & Night System AGC / TDN (ICR)
NTSC: 1/30~1/30000
Electronic Shutter
PAL: 1/25~1/30000
DSS ( ~X64)
Privacy Mask, Image Mirror, 3DNR, Flickerless
Functions Sharpness, Defog, DIS (Digital Image Stabilizer)
Motion Detection, DSS (Digital Shutter Speed)
SMPTE 292M (1.485Gbps)
1080p@25/30 or 29.97
1080i@50/60 or 59.94
720p@50/60 or 59.94
SDI (BNC)
Video
720p@25/30
Output
SMPTE 424M (2.97Gbps)
1080p@50/60 or 59.94
800mVp-p, 75Ω, unbalanced generator(single-ended)
CVBS (BNC) Analog Composite (1V ± 0.2 Vp-p) NTSC/PAL
PELCO-P/D, SONY-VISCA Protocol
Control RS-485
8Bits Data, 1Stop Bit, No Parity, 2400~115200bps
Operation Temperature -10℃ ~ 50℃
Power Input 12VDC (7VDC to 15VDC)
General
Power consumption Max 6W
Dimensions (W X H X D)
37(W) x 37(H) x 35(D)mm
Net Weight
Approx. 140g (With Lens)
Dimensions
37mm
37mm
