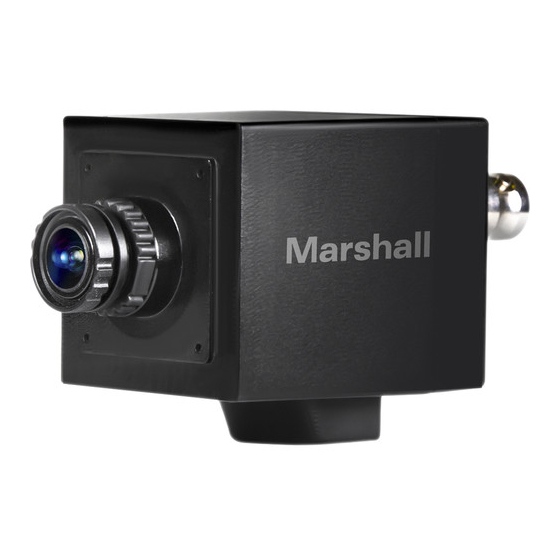

Marshall Electronics CV505-MB Quick Start Manual

CV505-MB/M Quick Start Guide
Full-HD (3G/HD-SDI) 2.5MP Mini-Broadcast
POV Camera with 3.7mm 2MP Lens

Precautions

Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power

is applied incorrectly. For the correct power supply, refer to the
CA UTION
Do not install or operate in small, unventilated areas. Heat build up

CA UTION
 To prevent damage, do not drop the camera or subject it to strong
shock or vibration.
CA UTION
If installed close to a TV, radio transmitter, magnet, electric motor

CA UTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward

the sun. Use caution when operating the camera in the vicinity of spot
CA UTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under

conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CA UTION
50°C), and humidity is below 90%.

Features

· 2.5 Megapixel 1/3-inch CMOS Sensor
· 3.7mm Megapixel M12 Prime Lens installed (interchangeable)
· CV505-MB: 1920x1080p59.94/29.97, 1920x1080i59.94,
1280x720p59.94/29.97fps
· CV505-M: 1920x1080p60/50/30/25, 1920x1080i60/50,
1280x720p60/50/30/25fps
· 3G/HD-SDI (BNC) & HDMI (full size v1.3) built into rear panel
· Lemo-style (I/O) connector contains
· Audio Mic Stereo (TRS) input embedding
w/ 2.5V power supply (embeds 3G/HD-SDI & HDMI)
· OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
· 12VDC
Rear Panel Video/Power Connection
【1】 【 2】
3G/HD-SDI SDI Out
【1】
MAIN I/O
【2】
POWER LED
【3】
HDMI
【4】
I/O
HDMI
【3】
【4】
MAIN I/O
RS-485
AUDIO
12VDC

How to Change a Fixed Focal Lens

1. Please check whether lens mount type is a M12 mount.
2. Spring washer is to be inserted between a lens and a mount.
3. Go to the camera setup and set the LENS mode as ESC.
Fixed Focal Lens
M12 mount
Spring Washer
Marshall Electronics
CV505
Image Sensor
Scanning System
Sync. System
Sensor
Effective Pixel
Min. Illumination
Horizontal Resolution
Optics Lens
Back Light Compensation
Exposure
White Balance
Functions Day & Night System
OSD Control Electronic Shutter
Functions
SDI (BNC)
Video
Output
HDMI (HDMI Type A)
Audio
MIC Input
Input
Control RS-485
Operation Temperature
Power Input
General Power consumption
Dimensions
Net Weight
36mm
LCDracks.com
Specifications
SPECIFICATIONS
1/3" Progressive CMOS (Approx. 2.1 mega)
16:9 Progressive
Internal
1920(H) x 1080(V)
0.2Lux (Day), 0.1Lux (Night), 0.005Lux (DSS on)
1,000TVL
Fixed HD lens
WDR/BLC
HLC (High Light compensation)
Auto / Manual
Auto (3,000°K~8,000°K)
ATW (1,900°K~11,000°K)
Manual
AGC / TDN (ICR)
NTSC: 1/30~1/30000
PAL: 1/25~1/30000
DSS ( ~X64)
Privacy Mask, Image Mirror, 3DNR, Flickerless
Sharpness, Defog, DIS (Digital Image Stabilizer)
Motion Detection, DSS (Digital Shutter Speed)
SMPTE 292M (1.485Gbps)
1080p@25/30 or 29.97
1080i@50/60 or 59.94
720p@50/60 or 59.94
720p@25/30
SMPTE 424M (2.97Gbps)
1080p@50/60 or 59.94
800mVp-p, 75Ω, Unbalanced Generator (Single-Ended)
HDMI 1.3 compliant (Embedded Audio)
1920x1080p@50/60 or 59.94
1920x1080i@50/60 or 59.94
1920x1080p@25/30 or 29.97
1280x720p@50/60 or 59.94
1280x720p@25/30
Mic Level (1Vrms). 2.5V Mic bias
Bit Depth: 16,20,24,32Bits. 48KHz sample rates
Gain : -12dB ~ 59.5dB
PELCO-P/D, SONY-VISCA Protocol
8Bits Data, 1Stop Bit, No Parity, 2400~115200bps
-10℃ ~ 50℃
12VDC (7VDC to 15VDC)
Max 6W
36(W) x 36(H) x 45(D)mm
.
Approx. 140g (With Lens)
Dimensions
60.0mm
36mm
