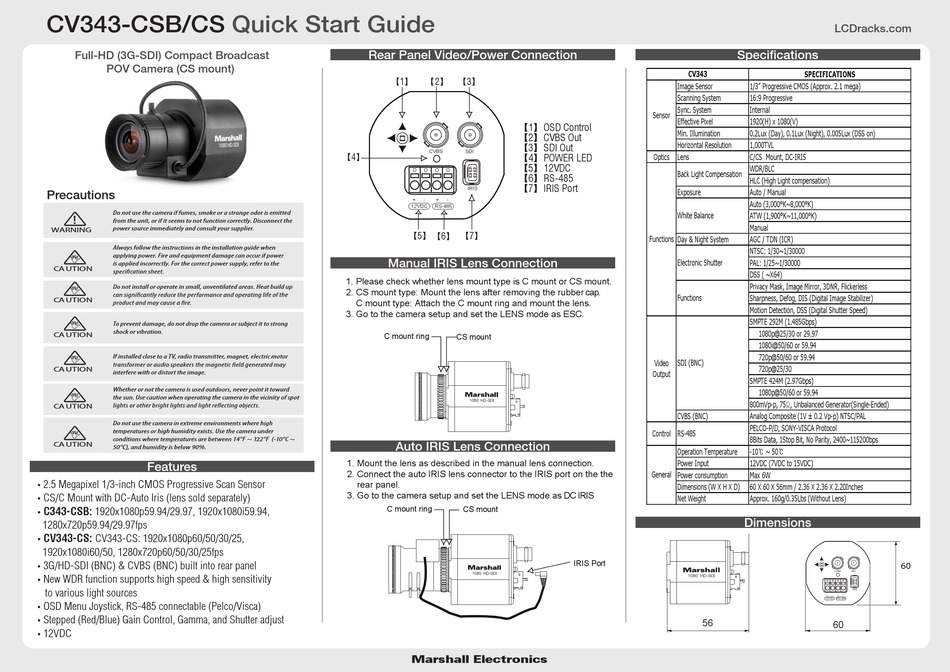

Marshall Electronics CV343-CSB Quick Start Manual

CV343-CSB/CS
Full-HD (3G-SDI) Compact Broadcast
POV Camera (CS mount)
Precautions
Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power

is applied incorrectly. For the correct power supply, refer to the
CA UTION
Do not install or operate in small, unventilated areas. Heat build up

CA UTION
 To prevent damage, do not drop the camera or subject it to strong
shock or vibration.
CA UTION
If installed close to a TV, radio transmitter, magnet, electric motor

CA UTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward

the sun. Use caution when operating the camera in the vicinity of spot
CA UTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under

conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CA UTION
50°C), and humidity is below 90%.
Features
· 2.5 Megapixel 1/3-inch CMOS Progressive Scan Sensor
· CS/C Mount with DC-Auto Iris (lens sold separately)
· C343-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94,
1280x720p59.94/29.97fps
· CV343-CS: CV343-CS: 1920x1080p60/50/30/25,
1920x1080i60/50, 1280x720p60/50/30/25fps
· 3G/HD-SDI (BNC) & CVBS (BNC) built into rear panel
· New WDR function supports high speed & high sensitivity
to various light sources
· OSD Menu Joystick, RS-485 connectable (Pelco/Visca)
· Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
· 12VDC
Quick Start Guide
Rear Panel Video/Power Connection
【1】
【4】
12VDC
【5】【6】 【7】
Manual IRIS Lens Connection
1. Please check whether lens mount type is C mount or CS mount.
2. CS mount type: Mount the lens after removing the rubber cap.
C mount type: Attach the C mount ring and mount the lens.
3. Go to the camera setup and set the LENS mode as ESC.
C mount ring
Auto IRIS Lens Connection
1. Mount the lens as described in the manual lens connection.
2. Connect the auto IRIS lens connector to the IRIS port on the the
rear panel.
3. Go to the camera setup and set the LENS mode as DC IRIS
C mount ring
Marshall Electronics
【2】 【3】
【1】OSD Control
【2】CVBS Out
【3】SDI Out
CVBS SDI
【4】POWER LED
【5】12VDC
【6】RS-485
【7】IRIS Port
IRIS
+ - + -
RS-485
CS mount
CS mount
IRIS Port
Specifications
CV343 SPECIFICATIONS
Image Sensor 1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System 16:9 Progressive
Sync. System Internal
Sensor
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (DSS on)
Horizontal Resolution 1,000TVL
Optics Lens C/CS Mount, DC-IRIS
WDR/BLC
Back Light Compensation
HLC (High Light compensation)
Exposure Auto / Manual
Auto (3,000°K~8,000°K)
White Balance
ATW (1,900°K~11,000°K)
Manual
Functions Day & Night System AGC / TDN (ICR)
NTSC: 1/30~1/30000
Electronic Shutter PAL: 1/25~1/30000
DSS ( ~X64)
Privacy Mask, Image Mirror, 3DNR, Flickerless
Functions Sharpness, Defog, DIS (Digital Image Stabilizer)
Motion Detection, DSS (Digital Shutter Speed)
SMPTE 292M (1.485Gbps)
1080p@25/30 or 29.97
1080i@50/60 or 59.94
720p@50/60 or 59.94
Video SDI (BNC)
720p@25/30
Output
SMPTE 424M (2.97Gbps)
1080p@50/60 or 59.94
800mVp-p, 75Ω, Unbalanced Generator(Single-Ended)
CVBS (BNC) Analog Composite (1V ± 0.2 Vp-p) NTSC/PAL
PELCO-P/D, SONY-VISCA Protocol
Control RS-485
8Bits Data, 1Stop Bit, No Parity, 2400~115200bps
Operation Temperature -10℃ ~ 50℃
Power Input 12VDC (7VDC to 15VDC)
General Power consumption Max 6W
Dimensions (W X H X D) 60 X 60 X 56mm / 2.36 X 2.36 X 2.20Inches
Net Weight Approx. 160g/0.35Lbs (Without Lens)
Dimensions
+
12VDC
56
LCDracks.com
60
CVBS SDI
IRIS
- + -
RS-485
60
