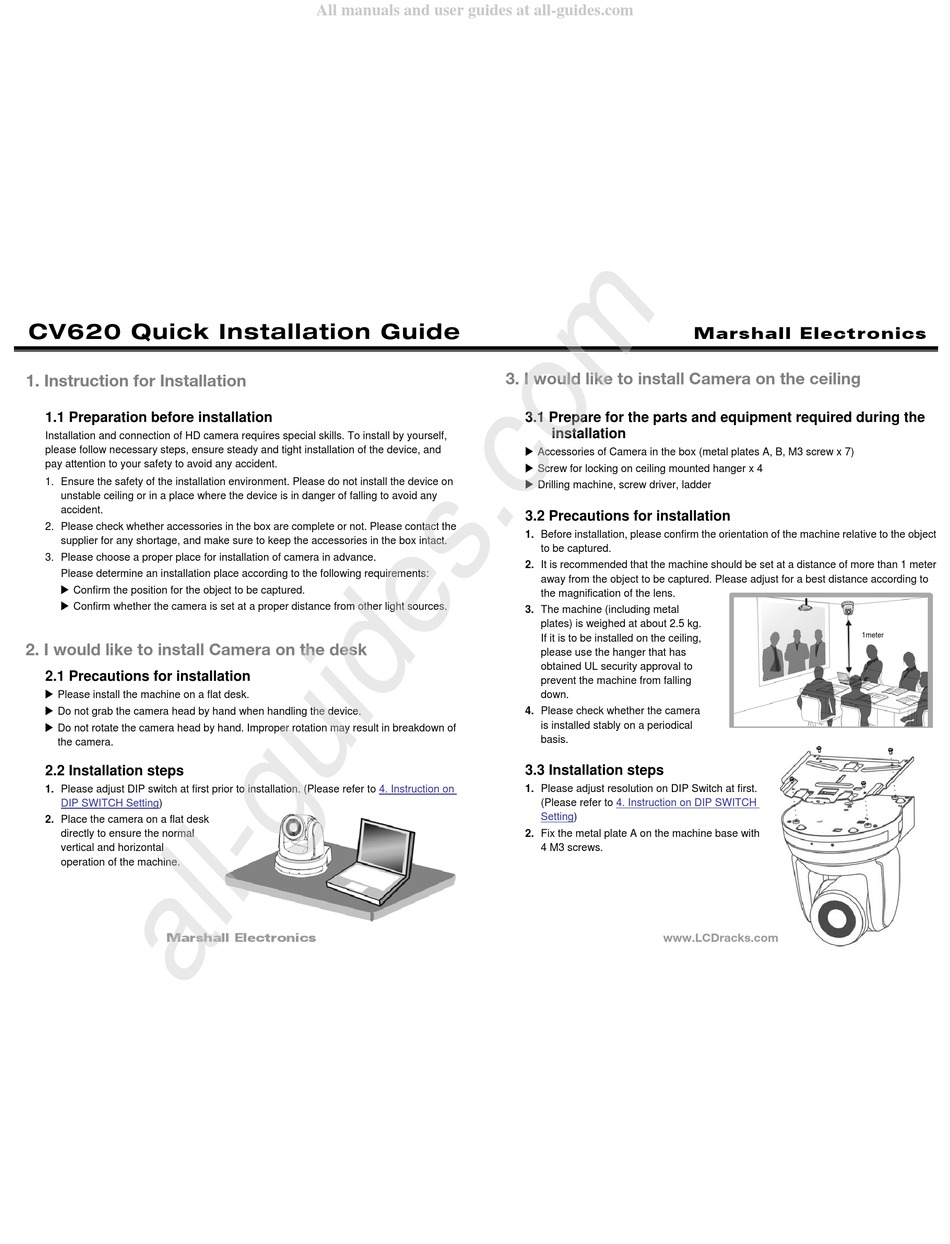

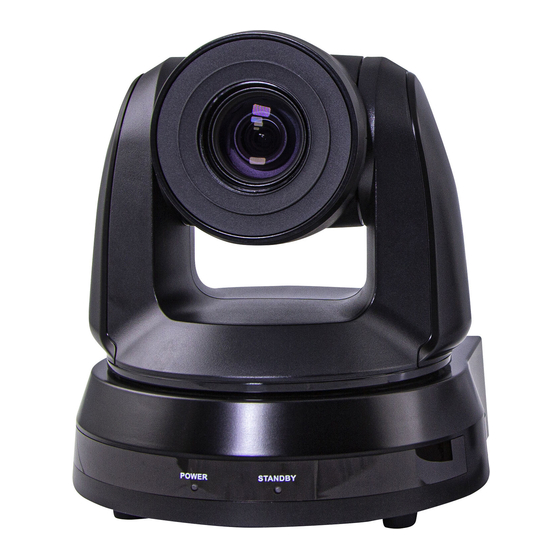

CV620 Quick Installation Guide
1. Instruction for Installation
1.1 Preparation before installation
Installation and connection of HD camera requires special skills. To install by yourself,
please follow necessary steps, ensure steady and tight installation of the device, and
pay attention to your safety to avoid any accident.
1. Ensure the safety of the installation environment. Please do not install the device on
unstable ceiling or in a place where the device is in danger of falling to avoid any
accident.
2. Please check whether accessories in the box are complete or not. Please contact the
supplier for any shortage, and make sure to keep the accessories in the box intact.
3. Please choose a proper place for installation of camera in advance.
Please determine an installation place according to the following requirements:
 Confirm the position for the object to be captured.
 Confirm whether the camera is set at a proper distance from other light sources.
2. I would like to install Camera on the desk
2.1 Precautions for installation
 Please install the machine on a flat desk.
 Do not grab the camera head by hand when handling the device.
 Do not rotate the camera head by hand. Improper rotation may result in breakdown of
the camera.
2.2 Installation steps
1. Please adjust DIP switch at first prior to installation. (Please refer to
DIP SWITCH Setting)
2. Place the camera on a flat desk
directly to ensure the normal
vertical and horizontal
operation of the machine.
Marshall Electronics
All manuals and user guides at all-guides.com
4. Instruction on
3. I would like to install Camera on the ceiling
3.1 Prepare for the parts and equipment required during the
installation
 Accessories of Camera in the box (metal plates A, B, M3 screw x 7)
 Screw for locking on ceiling mounted hanger x 4
 Drilling machine, screw driver, ladder
3.2 Precautions for installation
1. Before installation, please confirm the orientation of the machine relative to the object
to be captured.
2. It is recommended that the machine should be set at a distance of more than 1 meter
away from the object to be captured. Please adjust for a best distance according to
the magnification of the lens.
3. The machine (including metal
plates) is weighed at about 2.5 kg.
If it is to be installed on the ceiling,
please use the hanger that has
obtained UL security approval to
prevent the machine from falling
down.
4. Please check whether the camera
is installed stably on a periodical
basis.
3.3 Installation steps
1. Please adjust resolution on DIP Switch at first.
(Please refer to 4. Instruction on DIP SWITCH
Setting)
2. Fix the metal plate A on the machine base with
4 M3 screws.
www.LCDracks.com
Marshall Electronics
1meter
