Marshall Electronics CV345-CSB Quick Start Manual

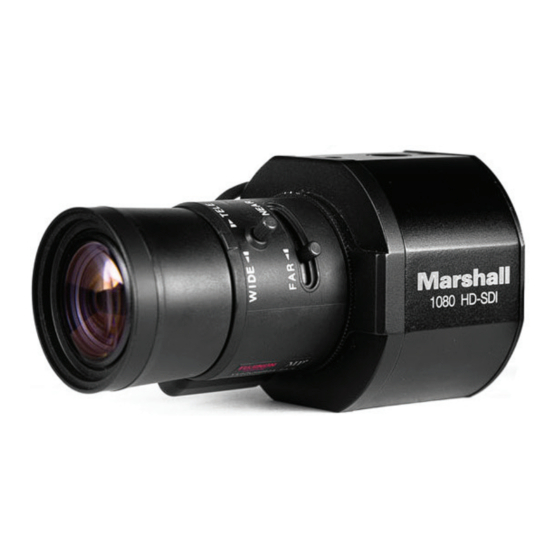

CV345-CSB/CS
Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast
Camera with AUDIO + HDMI (CS/C mount w/ Auto-Iris)
Do not use the camera if fumes, smoke or a strange odor is emitted
!
from the unit, or if it seems to not function correctly. Disconnect the
power source immediately and consult your supplier.
WARNING
Always follow the instructions in the installation guide when
applying power. Fire and equipment damage can occur if power

is applied incorrectly. For the correct power supply, refer to the
CA UTION
Do not install or operate in small, unventilated areas. Heat build up

CA UTION
To prevent damage, do not drop the camera or subject it to strong

shock or vibration.
CA UTION
If installed close to a TV, radio transmitter, magnet, electric motor

CA UTION
interfere with or distort the image.
Whether or not the camera is used outdoors, never point it toward

the sun. Use caution when operating the camera in the vicinity of spot
CA UTION
Do not use the camera in extreme environments where high
temperatures or high humidity exists. Use the camera under

conditions where temperatures are between 14°F ~ 122°F (-10°C ~
CA UTION
50°C), and humidity is below 90%.
Features
· 2.5 Megapixel 1/3-inch CMOS Sensor
· CS/C Mount with DC-Auto Iris (lens sold separately)
· CV345-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94,
1280x720p59.94/29.97fps
· CV345-CS: 1920x1080p60/50/30/25, 1920x1080i60/50,
1280x720p60/50/30/25fps
· Lemo-style (I/O) connector contains: RS-485(+/-), 12V power
connector & TRS microphone input with 2.5V power supplied
· 3G/HD-SDI (BNC) & HDMI (full size-v1.3) built into rear panel
· Audio Mic 3.5mm TRS Stereo input embedding w/ 2.5V power supplied
· OSD Menu Joystick, RS-485 (Pelco/Visca)
· 12VDC

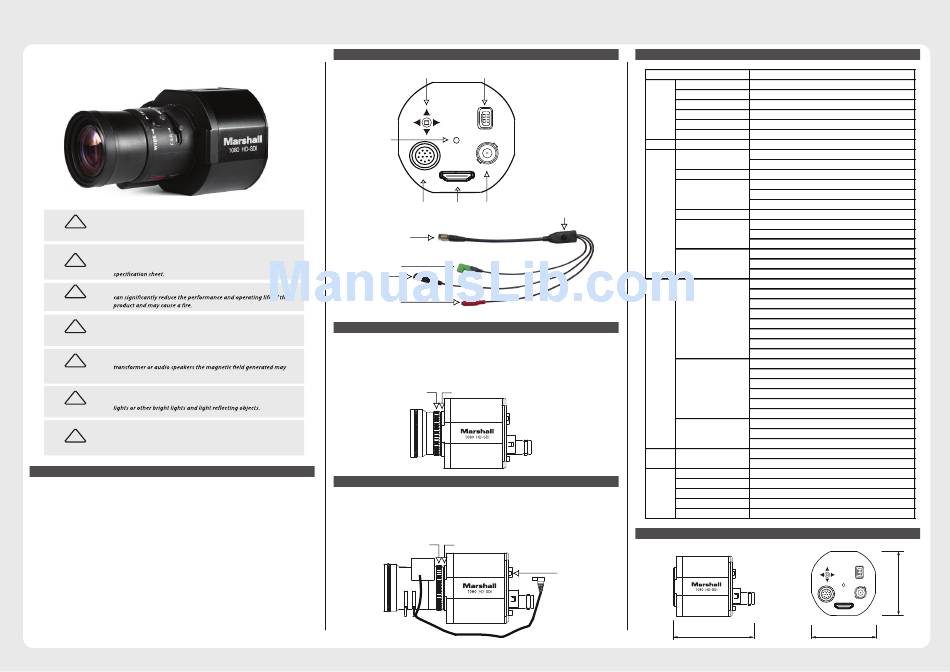

Quick Start Guide
Rear Panel Video/Power Connection
【4】
MAIN I/O
RS-485
AUDIO
12VDC
Manual Iris Lens Connection
1. Please check whether lens mount type is C mount or CS mount.
2. CS mount type: Mount the lens after removing the rubber cap.
C mount type: attach the C mount ring and mount the lens.
3. Go to the camera setup and set the LENS mode as ESC.
C mount ring
Auto Iris Lens Connection
1. Mount the lens as described in the manual lens connection.
2. Connect the auto IRIS lens connector to the connector on IRIS port
on the the rear panel.
3. Go to the camera setup and set the LENS mode as DC IRIS
C mount ring
Marshall Electronics
【 2 】
【1】
【1】OSD Control
IRIS Port
【2】
【3】 SDI Out
POWER IRIS
【4】POWER LED
【5】HDMI
【6】MAIN I/O
SDI
I/O
HDMI
【6】 【5】 【3】
OSD Control
CS mount
CS mount
IRIS Port
Specifications
CV345
SPECIFICATIONS
Image Sensor 1/3" Progressive CMOS (Approx. 2.1 mega)
Scanning System 16:9 Progressive
Sync. System Internal
Sensor
Effective Pixel 1920(H) x 1080(V)
Min. Illumination 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (DSS on)
Horizontal Resolution 1,000TVL
Optics Lens C/CS Mount, DC-IRIS
WDR/BLC
Back Light Compensation
HLC (High Light compensation)
Exposure Auto / Manual
Auto (3,000°K~8,000°K)
White Balance
ATW (1,900°K~11,000°K)
Manual
Functions Day & Night System AGC / TDN (ICR)
NTSC: 1/30~1/30000
Electronic Shutter PAL: 1/25~1/30000
DSS ( ~X64)
Privacy Mask, Image Mirror, 3DNR, Flickerless
Functions Sharpness, Defog, DIS (Digital Image Stabilizer)
Motion Detection, DSS (Digital Shutter Speed)
SMPTE 292M (1.485Gbps)
1080p@25/30 or 29.97
1080i@50/60 or 59.94
720p@50/60 or 59.94
SDI (BNC)
720p@25/30
SMPTE 424M (2.97Gbps)
1080p@50/60 or 59.94
800mVp-p, 75Ω, Unbalanced Generator (Single-Ended)
Video
HDMI 1.3 compliant (Embedded Audio)
Output
1920x1080p@50/60 or 59.94
1920x1080i@50/60 or 59.94
HDMI (HDMI Type A)
1920x1080p@25/30 or 29.97
1280x720p@50/60 or 59.94
1280x720p@25/30
Mic Level (1Vrms). 2.5V Mic bias
MIC Input Bit Depth: 16,20,24,32Bits. 48KHz sample rates
Gain : -12dB ~ 59.5dB
PELCO-P/D, SONY-VISCA Protocol
Control RS-485
8Bits Data, 1Stop Bit, No Parity, 2400~115200bps
Operation Temperature -10℃ ~ 50℃
Power Input 12VDC (7VDC to 15VDC)
General
Power consumption Max 6W
Dimensions (W X H X D) 60 X 60 X 56mm / 2.36 X 2.36 X 2.20Inches
Net Weight Approx. 160g/0.35Lbs (Without Lens)
Dimensions
I/O
56
LCDracks.com
60
POWER
IRIS
SDI
HDMI
60
